| Prod Model: |
HBS1-AGQ Series Push Button Switch |
| Product Name: |
Stainless Steel Illuminated Momentary Push Button |
| Switch Rating: |
5A/250VAC |
| Operation Type: |
Momentary/Latching |
| Mounting Hole Size: |
19mm |
| The Front Shape: |
Flat Round with LED Illumination |
| The Crust Material: |
Nickel-Plated Brass or Stainless Steel |
| Contact Configuration: |
1no1nc,2no2nc |
| LED Lamp Color: |
Red,Yellow,Orange,Blue,Green,White |
| Terminal Type: |
Pin Terminal |
| Waterproof Level: |
IP65 |
| Usage: |
Check Button |
| Kind: |
Double-pole on-off Switch |
| Type: |
Normal Open Normal Close |
| Structure: |
Two Terminal Breakpoints Slow Moving Contact |
| Contact Type: |
X Contact |
| Brand: |
Hban |
| Certification: |
TUV RoHS |

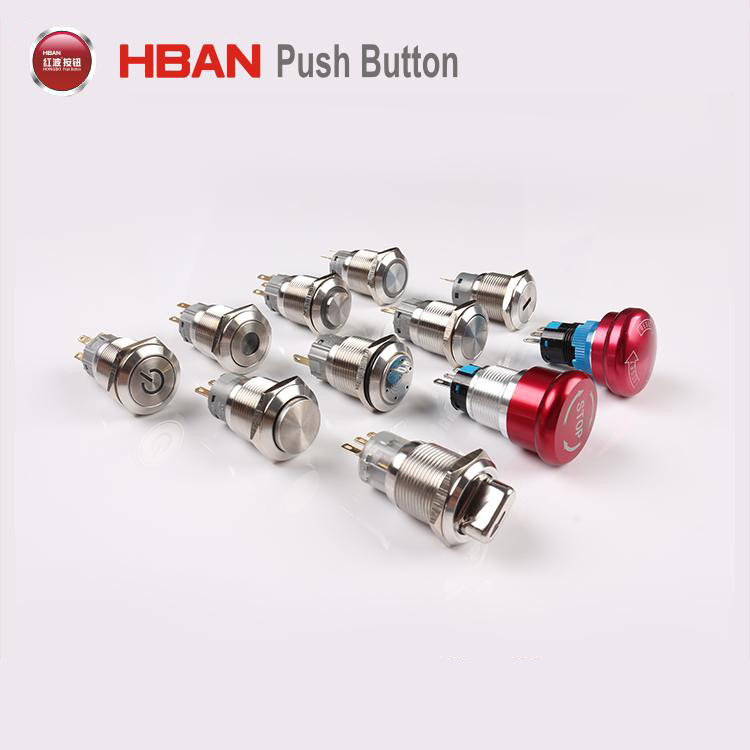

Product Description
2018 new 19mm waterproof IP65 momentary latching flat head metal push button switch, stainless steel push button switchMounting hole size: 19mm
Switch Rating: 5A/250VAC
Contact confirguration:1NO1NC/2NO2NC
Operation Type: Momentary/Latching
The front shape: Flat Round/High Round/Ring illuminated Power Symbol.
The crust material: Stainless steel/Nickel-plated Brass

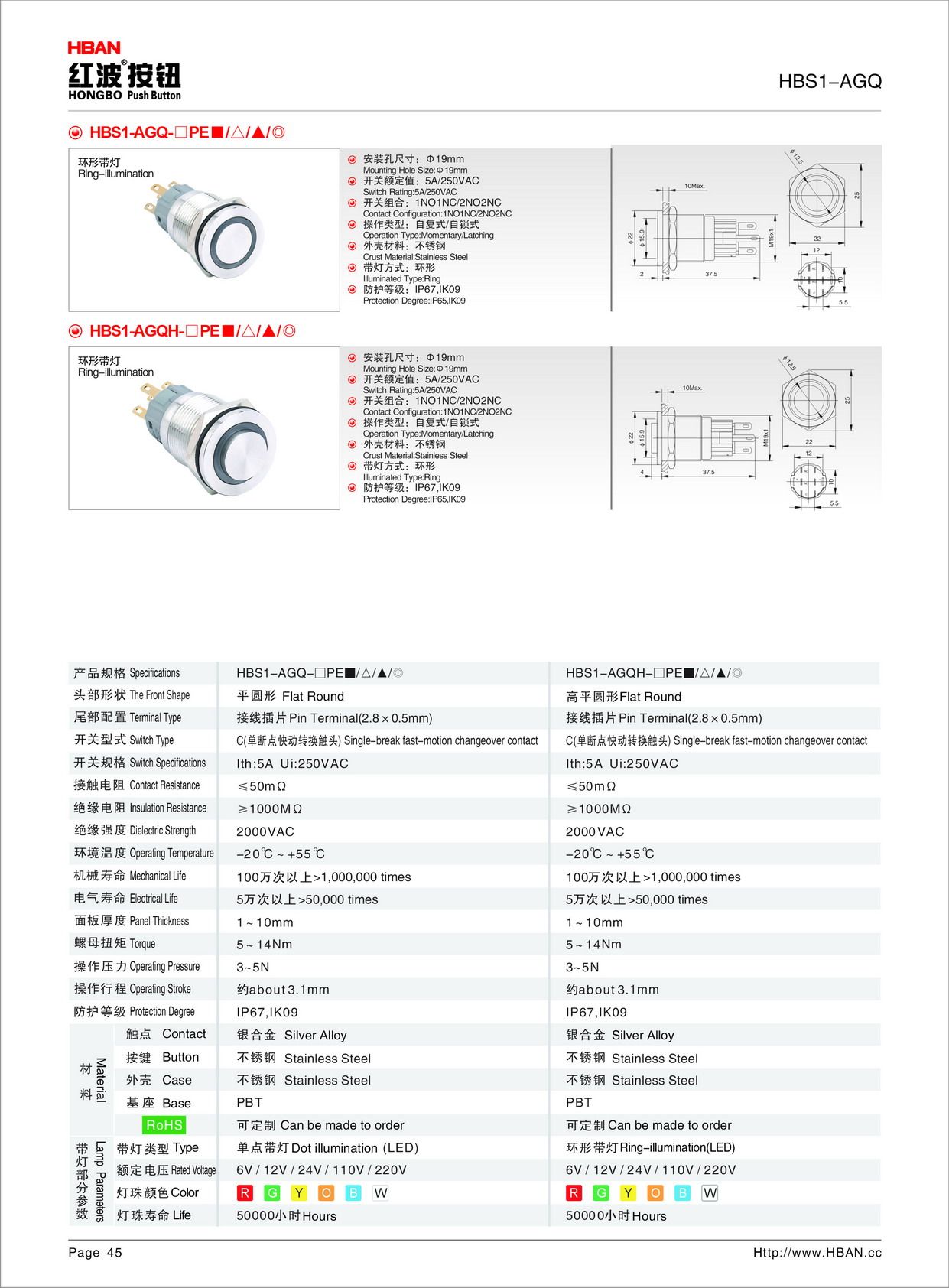

Items detailed technical parameters for your reference. | Specification | HBS1-AGQ Series Push Button Switch |
| The Front Shape | Flat/High/ Key Switch/Rotary Swicth |
| Terminal Type | Pin Terminal |
| Switch Type | Two terminal breakpoints slow moving contact |
| Switch Specification | 5A/250VDC |
| Contact Resistance | <50mΩ |
| Insulation resistance | >1000mΩ |
| Dielectric Strength | 2000VAC |
| Operation Temperature | -20ºC~ 55ºC |
| Mechanical Life | >1,000,1000 times |
| Elecrical Life | >200,000 times |
| Panel Thickness | 1~6mm |
| Torque | 5-14Nm |
| Operation Pressure | <6N |
| Operation Stroke | about 1.5mm |
| Protection Degree | IP67 IK08 |
| Material |
| Contact | Silver Alloy |
| Button | Stainless steel Mirror Surfact CD Pattern |
| Case | Stainless steel or Nickel-plated Brass |
| Base | PBT |
| LED COLOUR | RED/GREEN/YELLOW/ORANGE/BLUE/WHITE |
About Us:
Yueqing Dahe Eelctric Co., Ltd. is a full service manufacturing factory.
Our task is to offer qualified products and good services to all customers.
Our Exhibitions
We participated in many exhibitions every year at lots of places. Such as:Canton Fair, Electronica Munich...etc

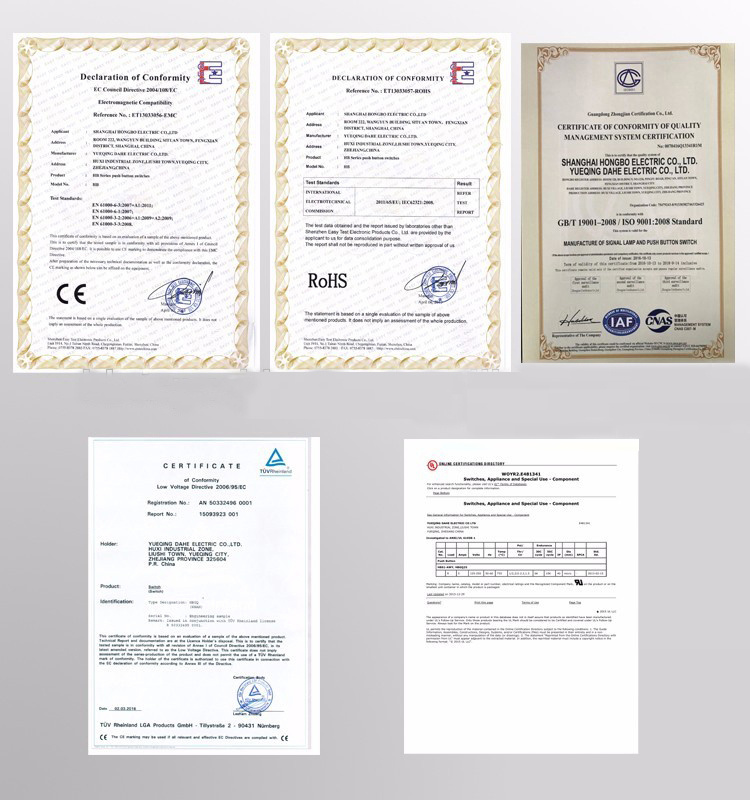

Certificate:
