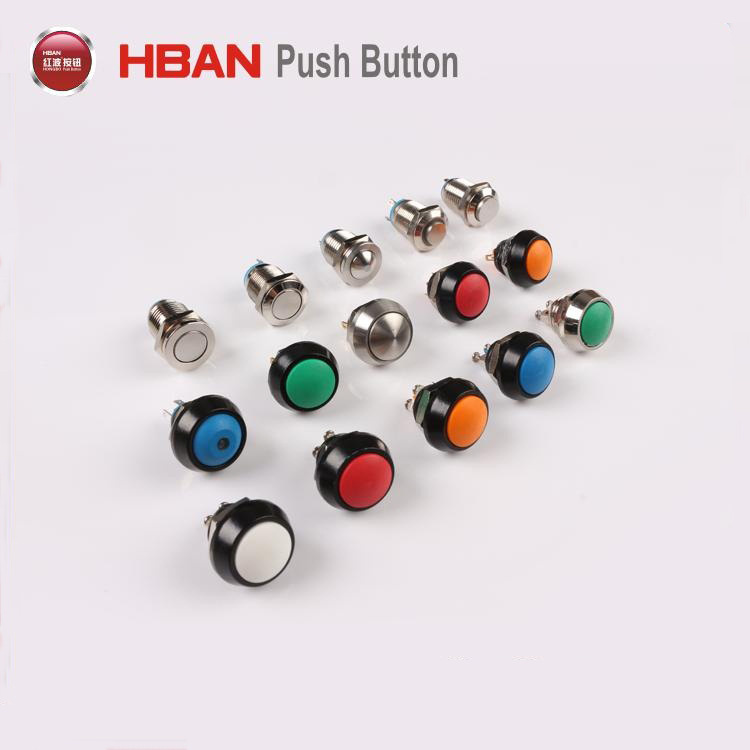

2018 new 12mm waterproof IP65 momentary domed head Zn-Al Alloy mini push button switch.Mounting hole size: 12mm
Switch Rating: 2A/36VDC
Contact confirguration:1NO
Operation Type: Momentary
Terminal Type: Pin Terminal
The front shape: Domed or domed with dot led illumination head
The crust material: Stainless steel/Nickel-plated Brass/Zn-al Alloy
Items detailed technical parameters for your reference.| Specification | HBDGQ12DB Series Push Button Switch |
| The Front Shape | Domed Head Shape |
| Terminal Type | Pin Terminal |
| Switch Type | Two terminal breakpoints slow moving contact |
| Switch Specification | 2A/36VDC |
| Contact Resistance | <50mΩ |
| Insulation resistance | >1000mΩ |
| Dielectric Strength | 2000VAC |
| Operation Temperature | -20ºC~ 55ºC |
| Mechanical Life | >1,000,1000 times |
| Elecrical Life | >200,000 times |
| Panel Thickness | 1~6mm |
| Torque | 5-14Nm |
| Operation Pressure | <6N |
| Operation Stroke | about 1.5mm |
| Protection Degree | IP65 IK08 |
| Material |
| Contact | Silver Alloy |
| Button | Stainless steel Mirror Surfact CD Pattern |
| Case | Zn-Al Alloy |
About Us
Yueqing Dahe Eelctric Co., Ltd. is a full service manufacturing factory.
Our task is to offer qualified products and good services to all customers.Our Exhibitions
We participated in many exhibitions every year at lots of places. Such as:Canton Fair, Electronica Munich...etc
Certificate
FAQ:Q: Can you provide samples ? Are the samples free ?
"A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking.
But you have to pay for the shipping cos.If you need many items, or need more qty for each item,
we will charge for the samples."
Q: What kind of payment do you accept ? Can I pay RMB ?
"A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. And you can pay money In RMB. No problem."
Q : What about your delivery time?
"A: We have a lot of products in stock.We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you."
Q: Do youu have a guarantee of your product quality?
A: We have a guarantee of one year
Q : How to ship my order ? Is it safe?
"A: For small package, we will send it by Express, tsuch as DHL,FedEx,,UPS,TNT,EMS.That's a
Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure
the safety.We will be responsible to any product damage caused on delivery."
Any requirement or question, pls send us an e-mail now!
It's our great honor to do services for you,my friend! You also can get the FREE SAMPLES soon.
Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.
After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.
At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
Tel: 0086-577-62708000 Fax: 0086-577-62708007
