CE RoHS (19mm) Ring-Illumination Momentary Latching Industrial Pushbutton Switches

Name: CE RoHS (19mm) Ring-Illumination Momentary Latching Industrial Pushbutton Switches
Brand: all-electronics-online.com
SKU: 692996502
Availability: InStock
Rating: 4.9 (109 reviews)

Price:	US $ 0.1-3.27/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

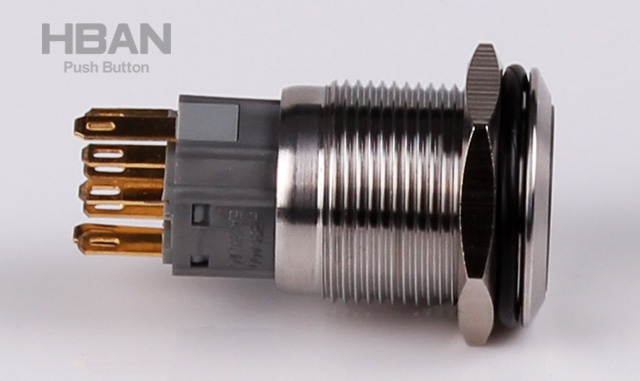

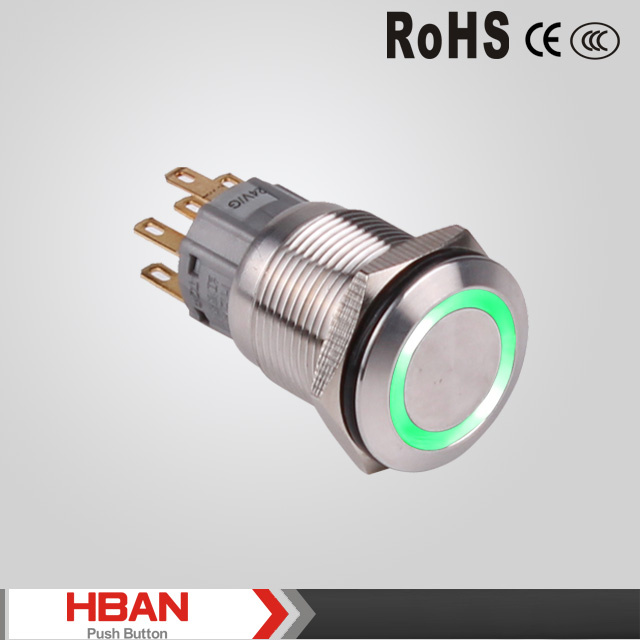

HBAN CE RoHS (19mm) Ring-Illumination Momentary Latching Industrial Pushbutton Switches

1.Mounting Hole Size:Φ19mm
2. Switch Rating :5A/250VAC
3. Contact Configuration:1NO1NC,2NO2NC
4.Operation Type:Momentary/Latching

5.TheFront Shape:Flat Round
6.The Crust Meterial:Stainelss steel
7.Protection Degree:IP67,IK09

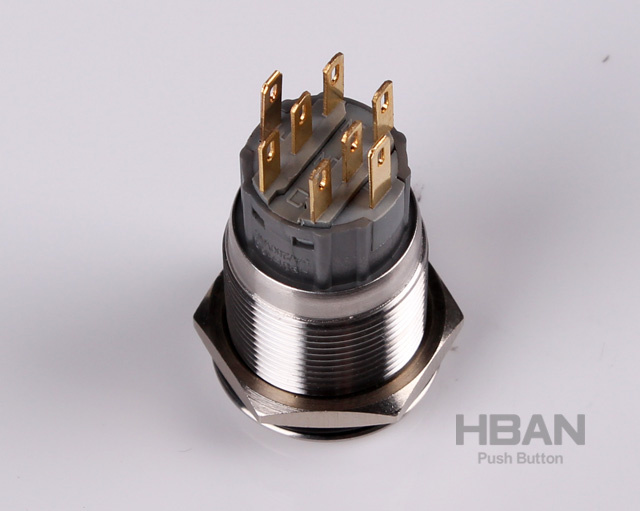

8.Terminal Type: Pin Terminal
9.Illuminated type: Ring
10.Rated voltage:6V/12V/24V/110V/220V
11.Color:R/G/Y/O/B/W
12.Lamp life : 50000 Hours

Packaging Details:

We pack 40 pieces diameter 19mm metal push button switches into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 16 boxes / 20 boxes into a 5 layers corrugated export carton.

About Us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates. Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.

We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.

Tel : 0086-577-62708000 Fax : 0086-577-62708007

Item No.		HBS1-AGQ-11E/S	HBS1-AGQ-11EZ/S
Specification		Ring 1NONC Momentary	Ring 1NO1NC Latching
Item No.		HBS1-AGQ-22E/S HBS1-AGQ-22EZ/S
Specification		Ring 2NO2NC Momentary Ring 2NO2NC Latching
Item No.		HBS1-AGQ-E/S
Specification		Single Lamp
Front Head Shape		Flat Round
Terminal Type		Pin Terminal (2.8*0.5mm)
Switch Type		C(Single-break fast-motion changeover contact )
Switch Specification		Ith:5A Ui:250VAC
Contact Resistance		≤50m Ω
Insulation Resistance		≥1000MΩ
Dielectric Strength		2000V AC
Operating Temperature		-20degree~+55degree
Machanical Life		>1,000,000 times
Electrical Life		>200,000 times
Panel Thickness		1~10mm
Torque		5~14Nm
Operating Pressure		3-5N
Operating Stroke		About 3.1 mm
Protection Degree		IP67,IK09
Material	Contact	Sliver Alloy
	Button	Stainless Steel
	Case	Stainless Steel
	Base	PC
	RoHS	Can be made to order

Prod Model:	HBS1-AGQ-E/S,11E/S,11EZ/S,HBS1-AGQ-22E/S,22EZ/S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item No.:	Hbs1-Agq-E/S,11e/S,11ez/S,Hbs1-Agq-22e/S,22ez/S
Switch Rating:	5A/250VAC
Contact Configuration:	1no1nc,2no2nc
Operation Type:	Momentary/Latching
The Front Shape:	Flat Round
The Crust Meterial:	Stainelss Steel
Protection Degree:	IP67,Ik09
Function:	Small Circuit Control
Manufacturer:	Yes
Original:	Zhejiang,China
Usage:	Check Button
Kind:	Single-pole on-off Switch
Type:	Normal Open
Brand:	Hban
Certification:	ISO90001,CE,RoHS,CCC

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.

Tel: 0086-577-62708000 Fax: 0086-577-62708007
