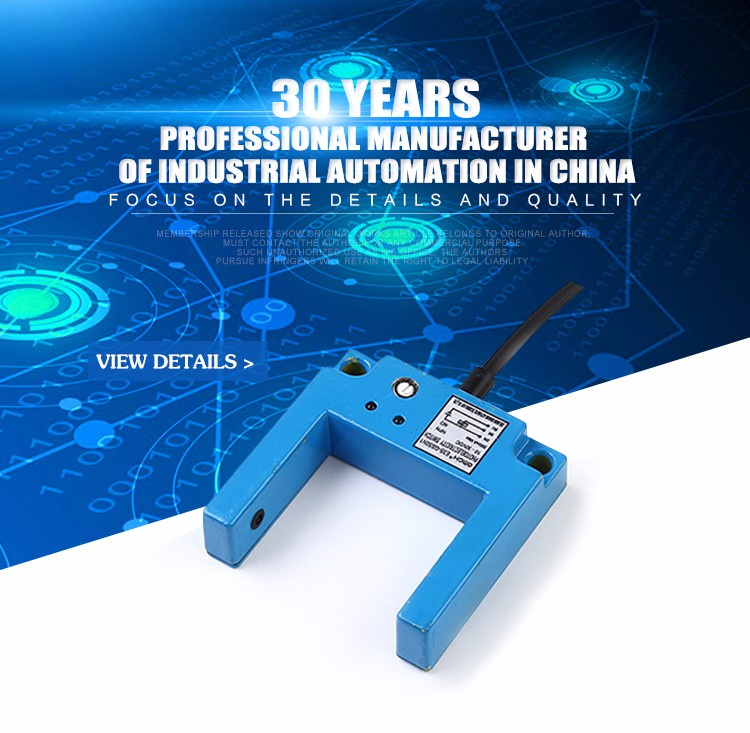

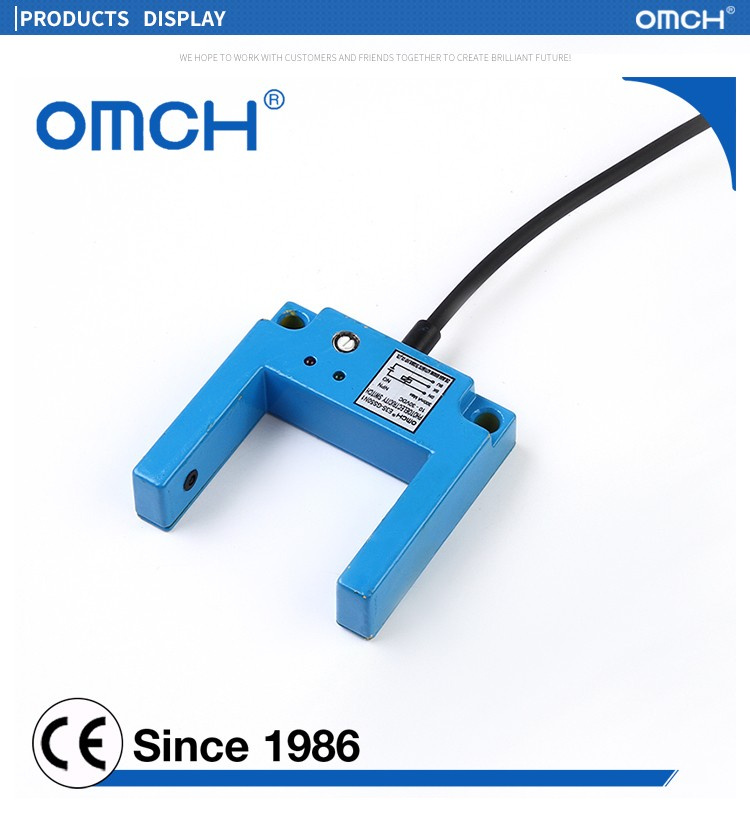

30mm U Type Fork Optical Photoelectric Sensors

Name: 30mm U Type Fork Optical Photoelectric Sensors
Brand: all-electronics-online.com
SKU: 840255035
Availability: InStock
Rating: 4.3 (140 reviews)

Price:	US $ 3-5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Quick Details

Place of Origin:Zhejiang, China (Mainland) Brand Name:OMCHModel Number: HE3S-GS30

Usage:Position Sensor Theory:ptical Sensor Output:Switching Transducer

Certification:CE ROHSDetection Type:diffuse, reflective, through beam type Dimension: 20*52*72mm

Protection degree:IP 65Material:ABSDetecting surface (Lens):PMMA

Operating temperature:-30~+65 C

Packaging & Delivery

Packaging Details The photo sensor switch will be packaged in carton box or as requried by buyer
Delivery Time Shipped in 15 days after payment

optical sensors distance photoelectric sensor

Product Description

Dimension				302010.8
Detection method				Through Beam type	Diffuse Reflection type	Reflection type
T y p e	DC Type	N P N	NO	E3Z-T61	E3Z-D61	E3Z-R61
			NC
			NO+NC
		P N P	NO	E3Z-T81	E3Z-D81	E3Z-R81
			NC
			NO+NC
Detection range				15m+/-10%	5-10cm	4m+/-10%
Detection range regulation				Fixed	Sensitivy adjuster	Sensitivy adjuster
Detection target				Opaque object	Transpparent/Opaqueobject	Opaque object
Response frequency				1ms
Connection delay				1.5ms
Light Source				Infrared light 660nm
Supply voltage				DCtype:DC12-24V(6-36V)Impulse(p-p)10%below ACtype:AC110-220V(90-250V)50/60Hz
Consumption current				N.Ptype:20mAbelow,A type:1.7mAbelow.
Control output				N.Ptype:300mAbelow,A type:400mAbelow.J type: 2A below(contact service life:0.1 million times)
Loop protection				N.P.D type:reversal connection protection, surge Absorption, load short-circuit protection A type: surge absorption
Ambient temperaturehumidity				During operation,storage:individually-30~+65( No freeze,no drew),During operation,storage Individually35~95%RH
Insulation impedance				50 MΩ above(DC500 megameter) between charging and housing
Withstand voltage				AC1000V50/60Hz 1 min between charging and housing
Temperature influence				Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence				Inside+/-15%rated supply voltagerange,at rated supply voltage value
Protection sturcture				IP65
Material				plastic (ABS) Detection surface(lens)PMMA

FAQ

1. Q: What certifications do you get?

A: We have CE RoHS, etc.

2. Q: Do you provide guarantee for the goods?

A: Yes, and all goods are offered 1year quality guarantee.

3. Q: Are OEM&ODM available?

A: Yes, we accept OEM and ODM.

4. Q: How to pay?

A: T/T and west union are acceptable.

5. Q: What is the delivery time?

A: It depends on the order quantity and the season you place the order. Generally, 5 to 10 working days after the payment.

6. Q: What about the Package?

A: Standard export package (paper carton) for shipment, or package as you need.
