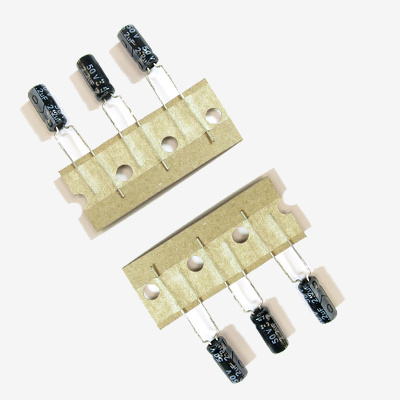

35V Radial Electrolytic Capacitor 105c Tmce02-4
| Price: |
US $ 0.001/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
TMCE02 |
| Rated Voltage: |
6.3 to 450V |
| Type: |
Aluminum Electrolytic Capacitor |
| Application: |
General Purpose |
| Package Type: |
Through Hole |
| Capacitance: |
1-50uf |
| Tuning: |
Electrolytic Capacitor |
Product Description
Capacitor
Standard Aluminum Electrolytic Capacitor 125 degree for 2000H
Standard Aluminum Electrolytic Capacitor 125 degree for 5000H
Standard Aluminum Electrolytic Capacitor 130degree for 4000H
Specifications
ItemsCharacteristics
Rated Voltage Range: 6.3~450V. DC
Operating Temperature
Rang-55~+125degree(6.3V~63V); -40~+125degree(80V~450V)
Capacitance Tolerance± 20%(M) (25degree, 100 or 120Hz)
Leakage CurrentI≤ 0.02 CV or 3(μ A) (6.3V~100V) I≤ 0.03 CV +10 (μ A ) (160V~450V)
Where, I: Max. Leakage current(μ A), C: Nominal capacitance(μ F), V: Rated voltage(V)(At 25degree after 2 minutes)
Dissipation Factor tanδ
Rated voltage(VdC)6.31016253550~100160~250350~450
Tanδ (Max. )0.240.200.160.140.120.100.120.15
(25degree, 100 or 120Hz)
A When nominal capacitance exceeds 1000μ F, add 0.02 to the value above for each 1000μ F increase.
Low Temperature
Characteristics
(Max. Impedance Ratio)Impedance ratio at 100Hz or 120Hz shall not exceed the values given in the below table.
Rated voltage(VdC)6.3~1625~6380~100160~250350~450
Z-40degreeZ+degree4610
Z-55degreeZ+20degree54///
When nominal capacitance exceeds 1000μ F, add 1 to the value above for each 1000μ F increase.
Shelf LifeAfter storage at 125degreefor 1000 hours, the capacitors shall meet the following requirements. (500 hours for 350V~450V)
Capacitance Change≤ ± 20% of the initial value
D. F. ( tanδ )≤ 200% of the initial specified value
Leakage Current≤ 500% of the initial specified value
Load LifeAfter application of rated voltage with rated ripple current for the 2000hours at +125degree, the capacitors shall meet the following limits.
Capacitance Change≤ ± 20% of the initial value
D. F. ( tanδ )≤ 200% of the initial specified value
Leakage Current≤ The Initial specified value
OthersMeet Q/RME 40-2008, GB/T 5993-2003
Established in 1998, and mainly engaged in manufacturing, researching & developing, and dealing in various capacitor, Shenzhen Topmay Electronic Co., Ltd. is an industrial enterprise with independent corporate entity and has its headquarters located at the flourishing center of Shenzhen, a city has been recognized as the frontier of China economy. After years' persistent hard work by all the companions, Topmay has now developed to be a famous electronic company that promotes very quickly with the most advanced technology.
Topmay has large factories by joint venture. Located in NanTong city. Years' continuous development now provides us with standard workshop of 12, 000 square meters, 6 production lines and 862 employees.
Presently, Topmay products mainly include the following products:
The whole series capacitors Film capacitor, Ceramic capacitor, Tantalum capacitor, Aluminum Electrolytic Capacitor, and etc.
Topmay holds an idea that the products quality is the life of a company. In order to serve our customers better, and to enhance the products grade, Topmay has invested a lot to the application of kinds of international system and quality certifications, and have achieved the following: ISO9001: 2000, ISO14001, Greatwall, CE, SA, UL, TUV, VDE, and etc. Topmay insist on a tenet that people should be oriented, efficiency is the priority, quality should be emphasized, and credit is the uppermost. And we try our best to exploit and to innovate, and keep improving our production technology. So now we gradually grow up to be an outstanding one in our industry. Topmay products are of numerous varieties, compete species, super quality, competitive price and stable function, and all of their indexes have reached the international advanced level.
Topmay takes marketing as the key procedure of the company's entire development. One after another, we attend many global electronics fairs that take place in Munich, Hong Kong, Shanghai, Guangzhou, and Shenzhen. Meanwhile, we get going kinds of driving publication on the well-known B2B websites, such as EbigChina, Made-in-China. com, Globalsources and etc. All these have surely afforded us a good result, a profound influence, and a continuously expanded clients group. At present, Topmay's business primarily concentrates abroad, more than 65%'s export. Because of the super-quality products, the eminent business reputation, the omnibearing technique service and competitive prices, we have established a stable relationship of good cooperation with overseas customers. Now our products have been sold to many distant places, such as USA, Canada, Brazil, Germany, England, France, Spain, Turkey, Russia, Poland, Arabia, Bulgaria, Korean, Malaysia, India, HK, Taiwan, and etc. Namely, a large scope of overseas market has been successfully occupied.
