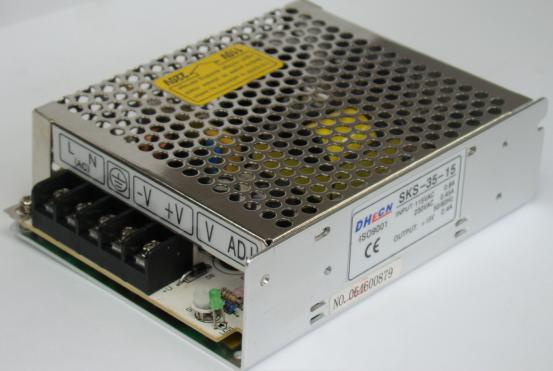

35W Single Output Switching Power Supply

Name: 35W Single Output Switching Power Supply
Brand: all-electronics-online.com
SKU: 13372
Availability: InStock
Rating: 4.7 (118 reviews)

Price:	US $ 7.4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

35W Single Output Switching Power Supply
Features:
· High efficiency, high reliability, low cost
· AC input range selected by switch
· Protections: Short circuit / Over load
· LED indicator for powr on
· Fixed switching frequency at 37kHz
· Cooling by free air convection
· 1 year warranty

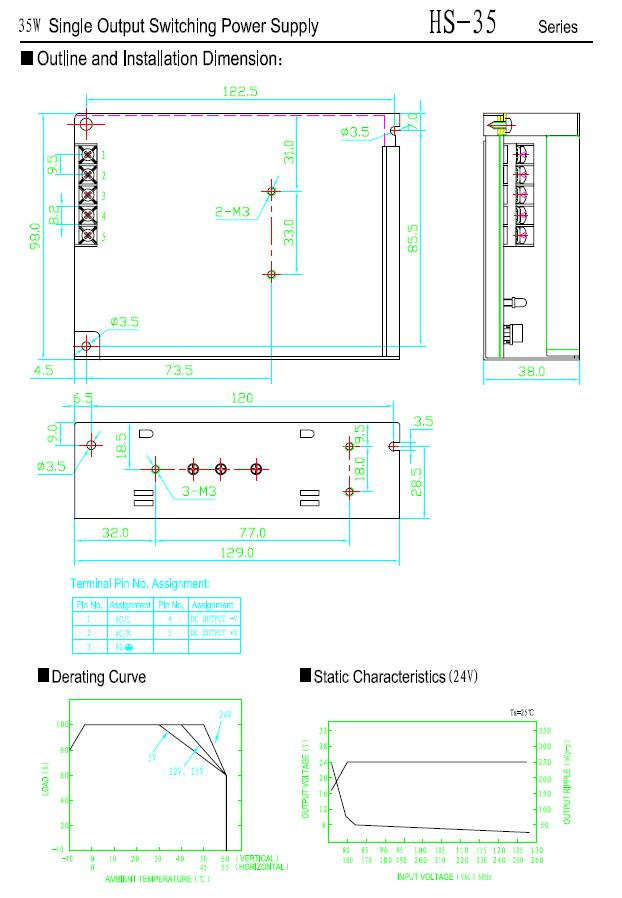

· Dimensions: 129*98*38mm (L*W*H)

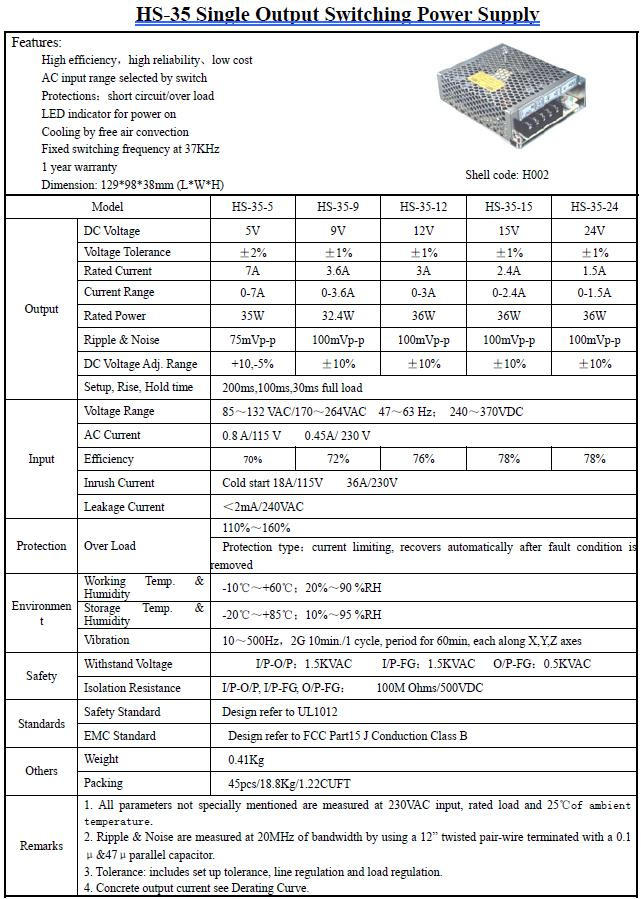

Specification:
1)INPUT
· Voltage Range: 85~132 VAC/170~264VAC47~63 Hz; Selected by switch 240~370VDC
· AC Current: 0.8 A/115 V 0.45A/ 230 V
· Efficiency: 70%(HS-35-5); 72%(HS-35-9); 76%(HS-35-12); 78%(HS-35-15); 78%(HS-35-24);
· Inrush Current: Cold start 18A/115V 36A/230V
· Leakage Current: <2mA/240VAC

2)PROTECTION
· Over Load: 110%~160%; Protection type: Fold back current limiting, recovers automatically after fault condition is removed

3)ENVIRONMENT
· Working Temp., Humidity: -10º C~+60º C; 20%~90 %RH
· Storage Temp., Humidity: -20º C~+85º C; 10%~95 %RH
· Vibration: 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes

4)SAFETY AND STANDARD
· Withstand Voltage: I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
· Safety Standard: Design refer to UL1012
· EMC Standard: Design refer to FCC Part15 J Conduction Class B
5)OUTPUT
· Model HS-35-5 HS-35-9 HS-35-12 HS-35-15 HS-35-24
· DC Voltage 5V 9V 12V 15V 24V
· Voltage Tolerance ± 2% ± 1% ± 1% ± 1% ± 1%
· Rated Current 7A 3.6A 3A 2.4A 1.5A
· Current Range 0-7A 0-3.6A 0-3A 0-2.4A 0-1.5A
· Rated Power 35W 32.4W 36W 36W 36W
· Ripple & Noise 75 MVP-p 100 MVP-p 100 MVP-p 100 MVP-p 100 MVP-p
· DC Adjustment Range -5%, +10% ± 10% ± 10% ± 10% ± 10%
· Setup, Rise, Hold Time 200ms, 100ms, 30ms at full load

Prod Model:	HS-35
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of Output:	Single Output(AC/DC to DC),Constant Voltage
Type Of Power Supply:	Metal Case Power Supply
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Brand:	Dhecn

Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.

To supply our customers perfect products, we set up R&D department with over 20 experienced engineers and also follow a full set of computerized managementssystem. What' S more, as an ISO9001 certified company, we adopt a strict inspection process and a scientific management system with modern imported manufacturing and testing facilities, succeeded in achieving some safety sertification such as CCC, CE, CB, UL and all products are RoHS Compliance.

Advantage managent and abundant labor in China, let us provide our customers more high reliable quality and more cheaper products, by now, DHECN-SMPS is becoming more and more famous among customers worldwide due to its reliable quality, competitive price, punctual delivery and correct service.

Donghua warmly welcome all old and new customers to visit our company or contact us by Tel, Fax, E-mail. Believing we will be your long-term business cooperator either as a reliable supplier or as a close ODM/OEM partner in China.
