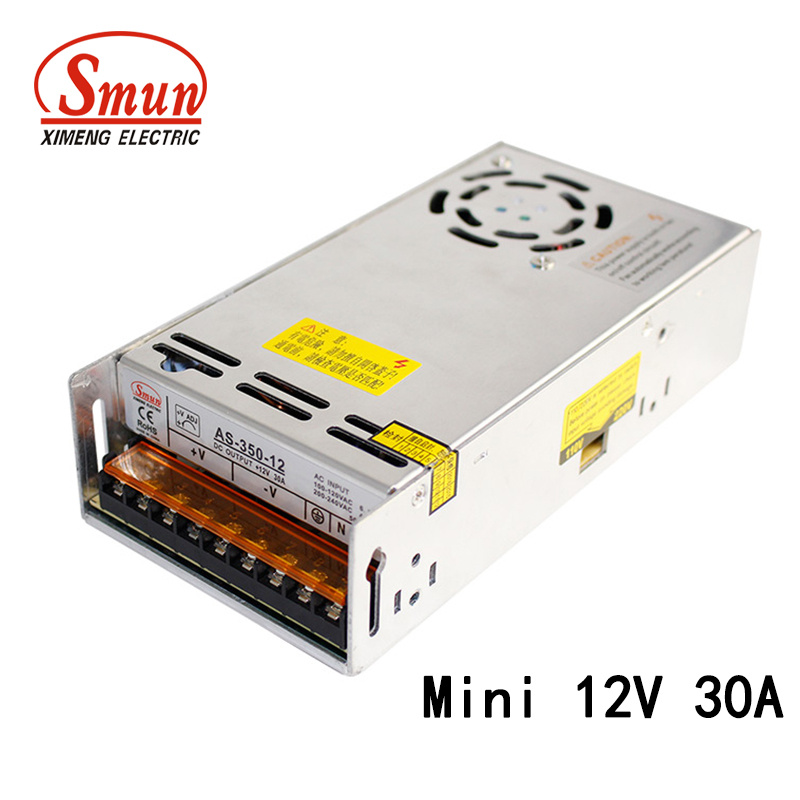

360W 12V 30A Small Volume Single Output Switching Power Supply
| Price: |
US $ 10.5-15/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
MODEL
|
| AS-350-12
| AS-350-15
| AS-350-24
|
OUTPUT
| DC VOLTAGE
|
| 12V
| 15V
| 24V
|
RATED CURRENT
|
| 30A
| 23.4A
| 14.6A
|
RATED POWER
|
| 350W
| 350W
| 350W
|
RIPPLE&NOISE
|
| 120mVp-p
| 150mVp-p
| 150mVp-p
|
VOLTAGE ADJ.RANGE
|
| 10.8-13.2V
| 13.5-16.5V
| 21.6-26.4V
|
VOLTAGE TOLERANCE
| ±2.0%
| ±1.0%
| ±1.0%
| ±1.0%
|
LINE REGULATION
| ±0.5%
| ±0.5%
| ±0.5%
| ±0.5%
|
LOAD REGULATION
| ±1.0%
| ±0.5%
| ±0.5%
| ±0.5%
|
SETUP,RISE TIME
| 500ms,20ms/230VAC
|
HOLD UP TIME(TYP.)
| 30ms/230VAC 25ms/115VAC at full load
|
INPUT
| VOLTAGE RANGE
| 170-264VAC 240-370VDC
|
FREQUENCY RANGE
| 47-63HZ
|
EFFICIENCY(Typ.)
| 80%
| 83%
| 84%
| 86%
|
AC CURRENT(Typ.)
| 15A/115V 30A/230VAC
|
INRUSH CURRENT
| COLD START 30A/115V 60A/230V
|
LEAKAGE CURRENT
| 1mA/240VAC
|
PROTECTION
| OVERLOAD
| 105-150% RATED OUTPUT POWER
|
Protection type:Hiccup mode,recovers automatically after fault condition
|
OVER VOLTAGE
| 5.75V-6.75V
| 13.8V-16.2V
| 17.2V-20.25V
| 27.6V-32.4V
|
Protection type:Hiccup mode,recovers automatically after fault condition
|
ENVIRONMENT
| WORKING TEMP
| -10~+60°C
|
WORKING HUMIDITY
| 20-90%RH non-condesing
|
STORAGE TEMP,HUMIDITY
| -20~+85°C,10-95%RH
|
TEMP.COEFFICIENT
| ±0.03%°C(0-50°C)
|
VIBRATION
| 10-500HZ
|
SAFETY&EMC
| SAFETY STANDARD
| CE RoHS
|
WITHSTAND VOLTAGE
| I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
|
ISOLATION RESISTANCE
| I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
|
EMI CONDUCTION&RADIATION
| Design refer to GB4943,UL60950,EN60950
|
EMC STANDARD
| Design refer to GB9254,EN55022 Class A
|
DIMENSION
| 199*98*50MM |
PACKING
| 0.69kg,30cs/22
|
| Prod Model: |
AS-350-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
360W |
| Output: |
12V 30A |
| Input: |
85-132VAC 170-264VAC 47-63Hz |
| Size: |
199*98*50mm |
| Weight: |
0.7kg |
| Package: |
30PCS/21kg |
| Working Temperature: |
-10~+60 Degree C,20%~90%Rh |
| DC Adjustable: |
10% |
| Protection: |
Overload,Over Voltage,Over Temp,Short Circuit |
| OEM: |
Available |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
301 - 400W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Input Voltage: |
110VAC/220VAC |
| Brand: |
Smun |
