| Prod Model: |
HCPS-H-30 |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
36kv |
| Current: |
630/1250A |
| Cross Section: |
35-500 Sqmm |
| The Highest Operating Voltage: |
36kv |
| Application: |
Power |
| Gender: |
Rear Connector |
Product Description

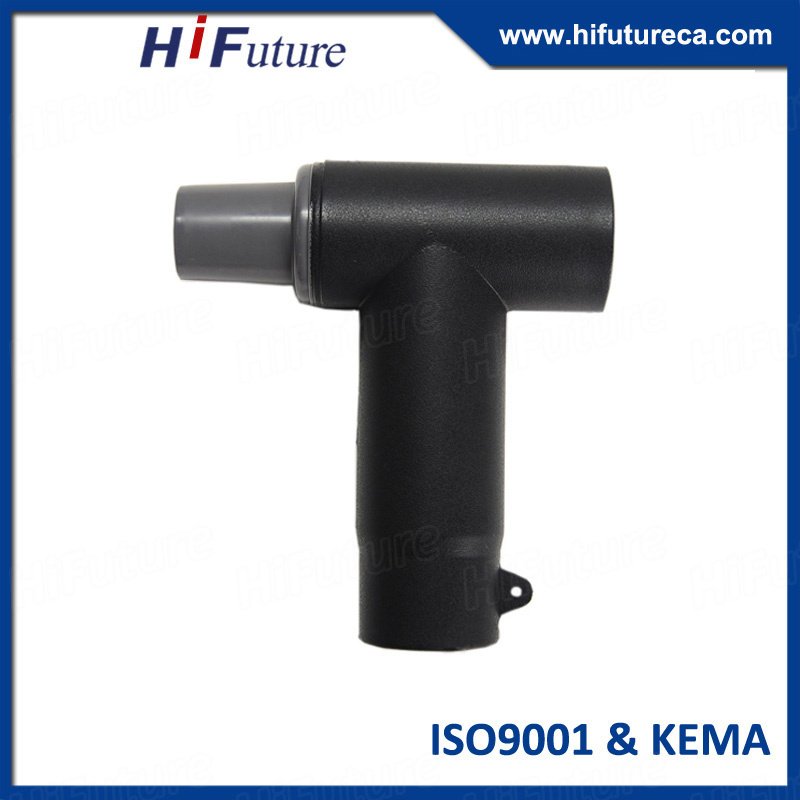

36kv/630A European Screened Type Separable Elbow Connector
Product Description
1, Adopt imported silicone rubber material to produce. Which with excellent insulation performance, heat resistance, cold resistance, dielectric properties, ozone resistance and resistance to atmospheric aging. It can be operated under various kinds working conditions and be widely used in branch cabinets, RMU, enclosure substations and so on.
2, Each batch of raw material passes the mechanical properties and electrical properties index test, which ensures product quality from the source.
3, All finished products 100% pass the factory performance test (power frequency withstand voltage, partial discharge).
4, Import Germany DESMA solid injection production system, combining with dustless and air-conditioned manufacturing workshop with constant temperature and humidity, which ensures the product not affected by external environment and have stable quality.
5, The product is designed according to standard EN50180,EN50181 C type bushing size requirement, and meet the performance requirement of standard IEC60502,GB12706.4.It passed the national authority type test certificate. It is safe and reliable with long time running.
6, Professional engineering installation team and years of installation and operating experience, we can provide on-site installation or installation guidance to ensure installation quality.
7, Excellent inside and outside sheild design, the sheilded separable connectors have stable electric perport without partial discharge and fulfill the fully indulation and sealing of the switchgears.
Range of Application
It applies to XLPE cable of voltage classes 12/20kV, 18/20kV, 18/30kV. It is used to isolate and protect inlet and outlet line bushing in power equipments such as switchgear and cable branch cabinets.
Technical Features
1. Product is designed compact with abundant extend property and easy to assemble and disassemble, which can meet the need of multi outgoing line protection of compact switchgear.
2. Excellent inside and outside shield design and shield resistance less than 5kΩ, which ensures the safety of products operation and security of workers, realizes the property of fully insulation, whole sealing, overall protection, maintenance-free, anti-fouling and so on.

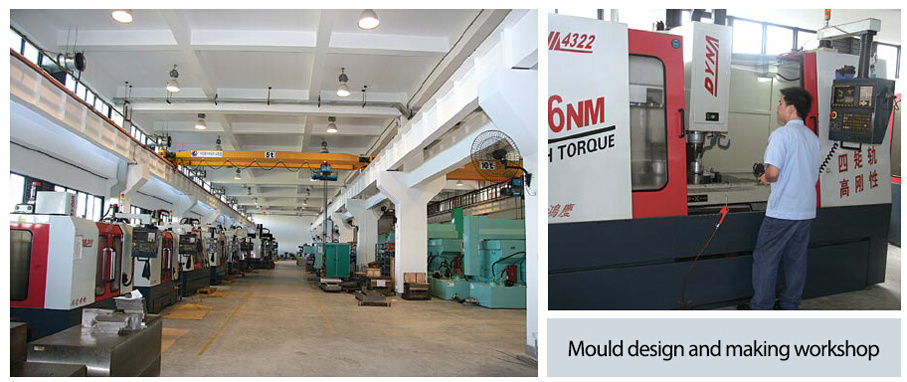

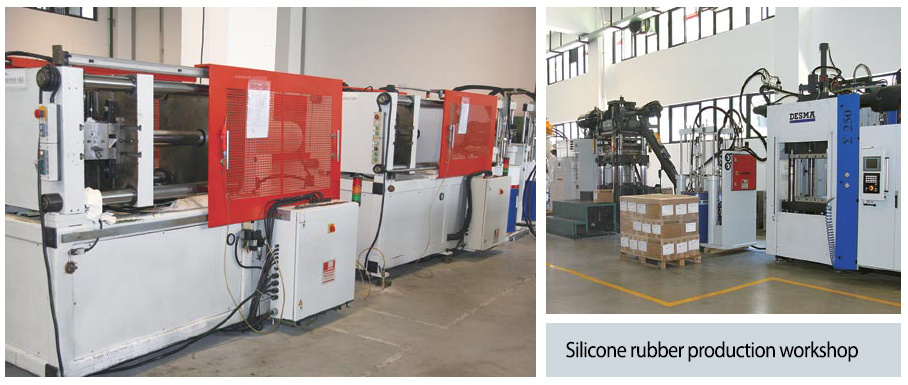

Workshops
Technical Data
36kV separable connector technical parameters |
| 36kV separable connector | rated voltage | 18/30kV |
| rated current | 630A/1250A |
| Max Running Voltage | 36kV |
| AC Withstand Voltage and DC Withstand Voltage | 81kV 5min or 72kV, 15min
no flashover, no breakdown |
| Partial Discharge | 30kV, PD≤5pC |
| Impulse Voltage Test | 170kV, ±10 times |
| Short Circuit Thermal Stability (Conductor) | 23kA 2s twice, no visible damage |
| Short Circuit Dynamic Stability | 83kA not less than 10ms no visible damage |
| Constant Voltage Load Cycle | apply voltage 1.25 u to conductor and heat to(90-95)ºC heat for 5h and cool for 3h, total 3 times |
| Shield Resistance Test | before and after aging shield resistance less than 5000Ω |
| Shield Leakage Current | under Max voltage, leakage current less than 0.5 ma |
| Long-time Running Temperature | -40ºC to 95ºC |
| Short Circuit Temperature | 250ºC, lasting time less than 5s |
| | |

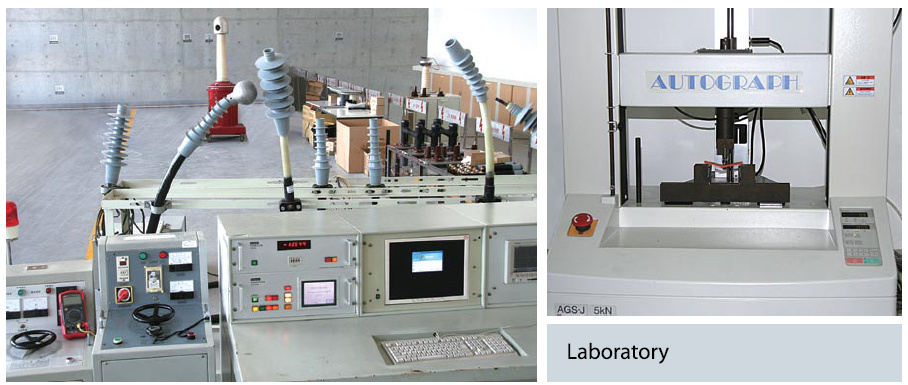

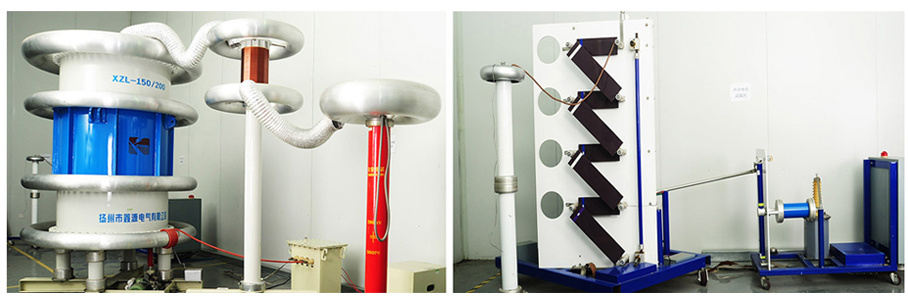

Quality Control SystemHifuture devotes itself to establish a leading enterprise and a famous brand. The enterprise tenet of "customer first, quality first and people first" has been implemented all the time, and Hifuture has been always making great effort to build an efficient, pragmatic, innovative corporate culture.
Certificates
If you want to know more about our company and product, welcome to send inquiries to us.
Shenzhen Hifuture Electric Co., Ltd. is committed to professional power distribution grid equipment and integrated solutions. Hifuture Electric comprises of three divisions: Electrical Insulating Material Division, MV & LV Equipment Division, and New Energy Division.
The Electrical Insulating Material Division, with its new macromolecule electrical insulation material technology, is specialized in silicone rubber material, APG products, and SMC material.
The division has developed a wide range of cold shrinkable Cable Termination, Cable Joint, Separable Connector, Busbars and Connectors, Surge Arrester, APG Epoxy Resin Bushing, Dry-type Tubing Busbars, and other accessories, up to 40.5kV.
Hifuture Electric is the earliest manufacturer in China of silicone rubber cable accessories. As early as in 2004, its Cable Connectors were already certified by KEMA. Today, Hifuture Electric is partner of the world's giants in the electric industry.
Its SMC products include Meter Box, Power Distribution Cabinet, modular combination type cabinets for Switchgear, Ring Main Unit, Compact Substation, Telecom cabinet, etc. Hifuture has its own mould processing center and is able to quickly design and develop new moulds for new products tailored to your requirements.
The MV & LV Equipment Division is mainly engaged in power Distribution Grid Equipment, including high-quality SF6 Gas-insulated Ring Main Unit, Low-voltage Switchgear, Power Distribution Switch/Control board, Cable Branching/Junction Cabinet, etc.
Hifuture Electric has been an approved supplier to the China State Grid and China Southern Power Grid.
Hifuture Solid Insulation Tubing Busbar is also manufactured in this division with TCE(Triple Co-Extrusion) technology. Hifuture is the pioneer in adopting TCE technology on Tubing Busbar. It has developed its own manufacturing equipment and is proud to have participated in setting the product standards.
The New Energy Division is a new business unit of Hifuture Electric. It started with Electric Vehicle Charging Equipment and is also ambitiously expanding into other new energy like PV Power. With its rich experience in Power Distribution Grid projects, Hifuture Electric provides customers with complete EPC service from MV/LV distribution up to the EV charging station. It has also developed its independent operating platform. Currently, it runs over 50 EV Charging stations on its platform system.
Hifuture Electric has devoted to overseas market since 2004. Its products and solutions have served over 500 cities and towns in China as well as some significant international events like the Beijing 2008 Olympics, Asian Games, World Expo, etc.
Since its establishment in 1999, Hifuture Electric has gained 95 national patents covering different product categories and was awarded "Shenzhen Hi-tech Enterprise" in 2001 and "National Hi-Tech Enterprise" in 2008.
