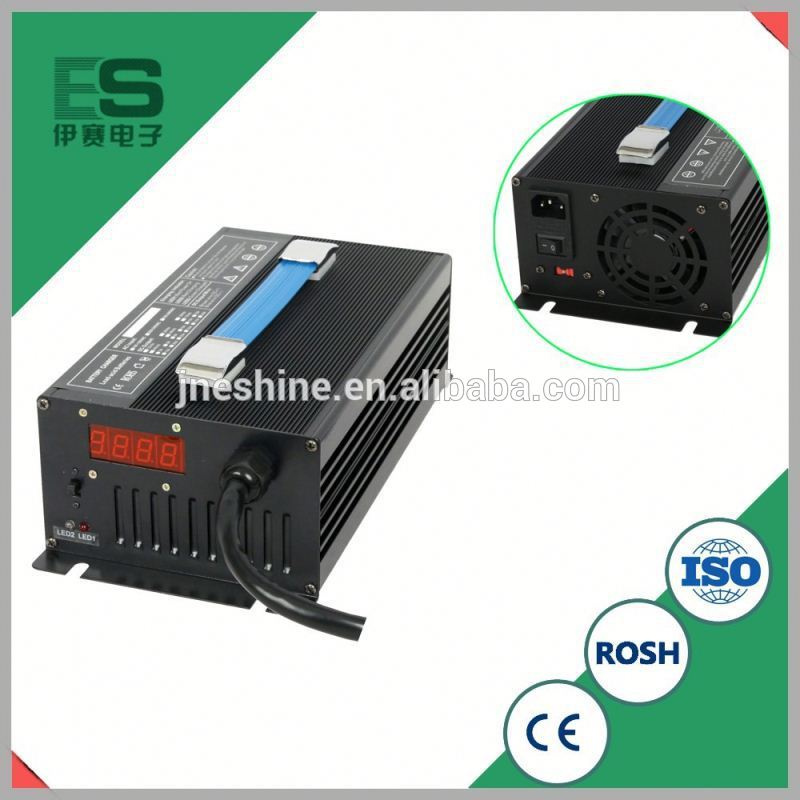

36V 18A Electric Golf Cart Battery Charger

Name: 36V 18A Electric Golf Cart Battery Charger
Brand: all-electronics-online.com
SKU: 621337954
Availability: InStock
Rating: 4.5 (42 reviews)

Price:	US $ 95-100/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product name: 36v 18a electric golf cart battery charger with certification
Features:

1.short-circuit protection,charger o/p current automatically when short-circuit.

2.overload protection:charger o/p current limited automatically when overload.

3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.

4.3-stage charging mode: CC(constant current), CV(constant voltage) and float stage.

5. Reliable, elegant,Small size, light,

6.charging state:two LED display.

7.all kinds of production has passed the CE certification.

8.Efficiency: ≥88 %( full capacity)

Operate Condition:

1.Temperature: -10~45 Degree

2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)

3.Life Expectancy: 50,000H at 25 Degree

Packaging & Delivery

Packaging Details: 36v golf cart battery charger:
Foam pad + poly bag + carton box

Delivery Detail: 3-5 days after receive your payment

36v 18a electric golf cart battery charger with certification

. ES-B(900W) battery charger specification

No.	spec	Constant voltage			Constant current	Transition/ Cut-off		Weight	size
		Lead-acid	Li-Mn	Lifepo4	Max (A)	Lead-acid	Li	(kg)	(mm)
1	12V	14.7V	16.8V	14.6V	40	8.0	4.0	3.5	*26015088*
2	24V	29.4V	29.4V	29.2V	25	5.0	2.5
3	36V	44.1V	42.0V	43.8V	18	3.6	1.8
4	48V	58.8V	54.6V	58.4V	15	3.0	1.5
5	60V	73.5V	75.6V	73.0V	12	2.4	1.2
6	72V	88.2V	84.0V	87.6V	10	1.0	0.5
Features	1	Full automatic transition of CC, CV and Float/cut-off
	2	Precise limit of voltage & current, guarantee fully charged and avoid over charge
	3	Protections: over current, over voltage, short circuit and reverse polarity
	4	High Efficiency: 95%~98%, PFC: 0.96, eco-friendly
	5	Two LED indicators, Aluminium, elegant and reliable
	6	CE & ROHS Certified, Safety and High Quality
Note: Cut-off point for Li battery is 5% of CC, and it can be set between 3%-10%.

Prod Model:	36V18A
Weight:	3.5kg
Input Voltage:	110-220V
Output:	36V18A
Warranty:	1 Year
Max Voltage:	900W
Package:	15PCS/Carton
Charger Type:	Electric Charger
Size:	A
Type:	Lead Acid Battery Charger
Charger Application:	Battery Pack
Nominal Voltage:	36V
Compatible Battery Type:	AGM Battery
Certification:	ISO9001
Socket Type:	According to Request

JINAN E-SHINE ELECTRONICS Co., Ltd was founded in January, 2009. We are specialized in manufacturing lithium battery chargers which can be largely applied for E-motorcycles, E-sweepers and E-forklifts. We adopt high-rate switching mode technology. Our chargers are high quality, stable, smart, portable and efficient (up to 93%). They have Aluminium case, elegant appearance, light weight and small size.

We own high-level developing engineers and manufacturing staff, and have ability to handle large orders. Our company has a group of engineers who have been in this field for more than 40 years both in production and management, and a group of young and knowledgeable people with doctor degrees who are skilled in high-tech and innovative thinking. Our company also offers tailor-made products according to customers' requirements. OEM is ok with us.

Now our company has supplied high quality, high stable and reliable chargers for North America, Europe and Asia, such as the United States, Canada, Mexico, Germany, Italy, Sweden, Portugal, Japan, South Korea and Taiwan area. All of our products have passed CE, RoHS certification.

"Best Quality is Bright Future ", This proverb warn us every time. And we promise our quality from factory production, excellent material quality, novel style, and accurate assembling; We use strong innovation and development capabilities to build brand so as to become the leading enterprises in the green power industry both in China and World markets!
