FOB Price: US $43 - 48 / Piece
Min. Order Quantity: 15 Piece/Pieces
Supply Ability: 10000 Piece/Pieces per Month
Port: Tsingtao
Payment Terms: T/T, Western Union, Bank Transfer/Paypal
Quick Details
Brand Name: E-Shine
Model Number: ES-A, ES-A
Use: E-Scooter/E-Golf Cart
Type: Electric
Place of Origin: Shandong, China (Mainland)
Input Voltage: 110V/220V
Output Voltage: 12V/24V/36V/48V/60V
Max Power: 360W
Shell: Aluminum
Size: 170*90*63mm
Weight: 1.2KG
Packaging & Delivery
Packaging Details: Carton
Delivery Detail: 3-5days after receive your payment
Specifications:
| Size | 180*90*63mm |
| Net weight | 1.2kg |
| Max output power | 360W |
| Certfication | CE, ROHS |
Features:
1. Short-circuit protection, charger o/p current automatically when short-circuit.
2. Overload protection: Charger o/p current limited automatically when overload.
3. Reverse polarity protection: It will shut down when the wire is connected, charge DC fuse or remove the fault.
4.3-stage charging mode: CC(constant current), CV(constant voltage) and float stage.
5. Reliable, elegant, Small size, light,
6. Charging state: Two LED display.
7. All kinds of production has passed the CE certification.
8. Efficiency: ≥88 %( full capacity)
Operate Condition:
1. Temperature: -10~45 Degree
2. Hi-pot: ≥AC1500 (P to S), ≥AC1500 (P to FG)
3. Life Expectancy: 50, 000H at 25 Degree
Apply to:
1. Electrical forklift
2. Electrical motorcycle
3. Electrical tourist-car

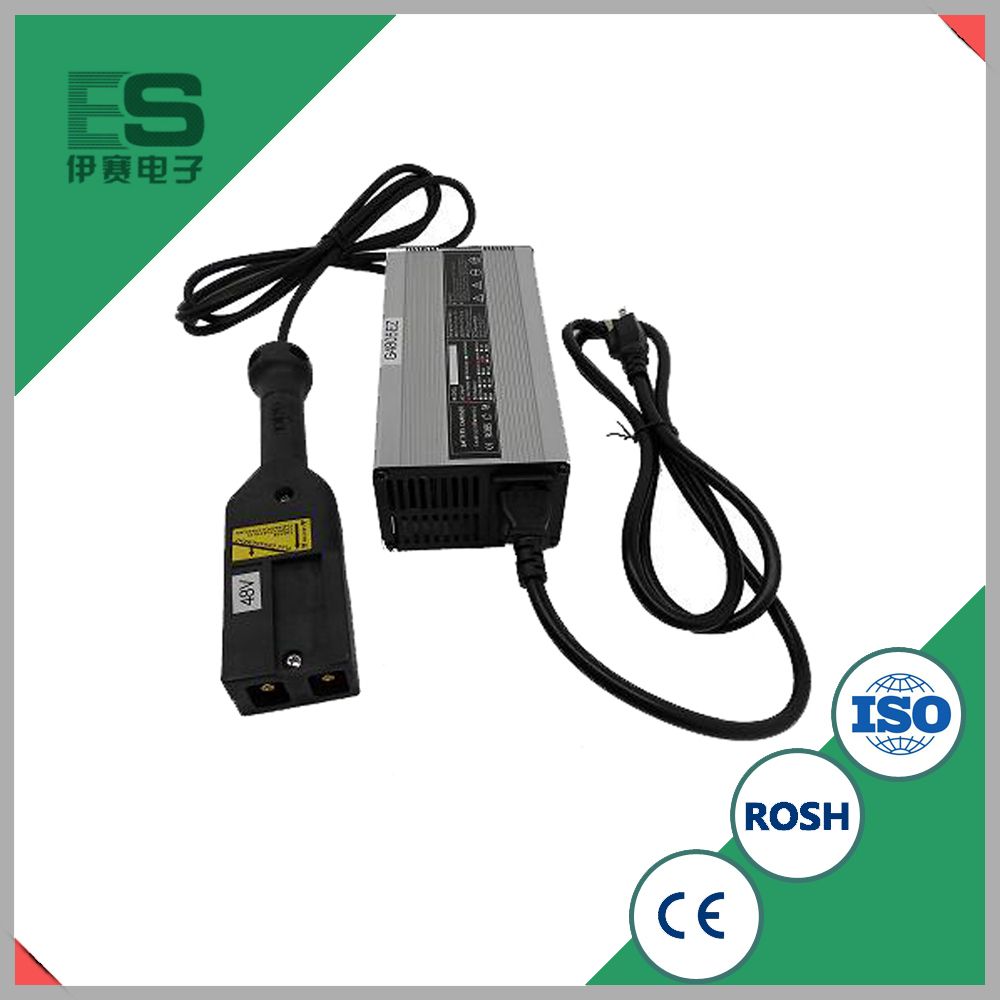

48V6A Automatic Golf Cart Cargador/EZGO Cart Parts Supplier
ES-A (360W) Battery Charger Datasheet:
| No. | spec | Constant voltage | Constant current | Transition/
Cut-off | Weight | size |
| Lead-acid | Li-Mn | Lifepo4 | Max (A) | Lead-acid | Li | (kg) | (mm) |
| 1 | 12V | 14.7V | 16.8V | 14.6V | 20 | 4 | 1 | 1.2 | 180*90*63
|
| 2 | 24V | 29.4V | 29.4V | 29.2V | 12 | 2.4 | 0.6 |
| 3 | 36V | 44.1V | 42.0V | 43.8V | 8 | 1.6 | 0.4 |
| 4 | 48V | 58.8V | 54.6V | 58.4V | 6 | 1.2 | 0.3 |
| 5 | 60V | 73.5V | 75.6V | 73.0V | 5 | 1.0 | 0.25 |
| 6 | 72V | 88.2V | 84.0V | 87.6V | 4 | 0.8 | 0.2 |
| Features | 1 | Full automatic transition of CC, CV and Float/cut-off |
| 2 | Precise limit of voltage & current, guarantee fully charged and avoid over charge |
| 3 | Protections: over current, over voltage, short circuit and reverse polarity |
| 4 | High Efficiency: 95%~98%, PFC: 0.96, eco-friendly |
| 5 | Two LED indicators, Aluminium, elegant and reliable |
| 6 | CE & ROHS Certified, Safety and High Quality |
| Note: Cut-off point for Li battery is 5% of CC, and it can be set between 5%-10%. |
JINAN E-SHINE ELECTRONICS Co., Ltd was founded in January, 2009. We are specialized in manufacturing lithium battery chargers which can be largely applied for E-motorcycles, E-sweepers and E-forklifts. We adopt high-rate switching mode technology. Our chargers are high quality, stable, smart, portable and efficient (up to 93%). They have Aluminium case, elegant appearance, light weight and small size.
We own high-level developing engineers and manufacturing staff, and have ability to handle large orders. Our company has a group of engineers who have been in this field for more than 40 years both in production and management, and a group of young and knowledgeable people with doctor degrees who are skilled in high-tech and innovative thinking. Our company also offers tailor-made products according to customers' requirements. OEM is ok with us.
Now our company has supplied high quality, high stable and reliable chargers for North America, Europe and Asia, such as the United States, Canada, Mexico, Germany, Italy, Sweden, Portugal, Japan, South Korea and Taiwan area. All of our products have passed CE, RoHS certification.
"Best Quality is Bright Future ", This proverb warn us every time. And we promise our quality from factory production, excellent material quality, novel style, and accurate assembling; We use strong innovation and development capabilities to build brand so as to become the leading enterprises in the green power industry both in China and World markets!
