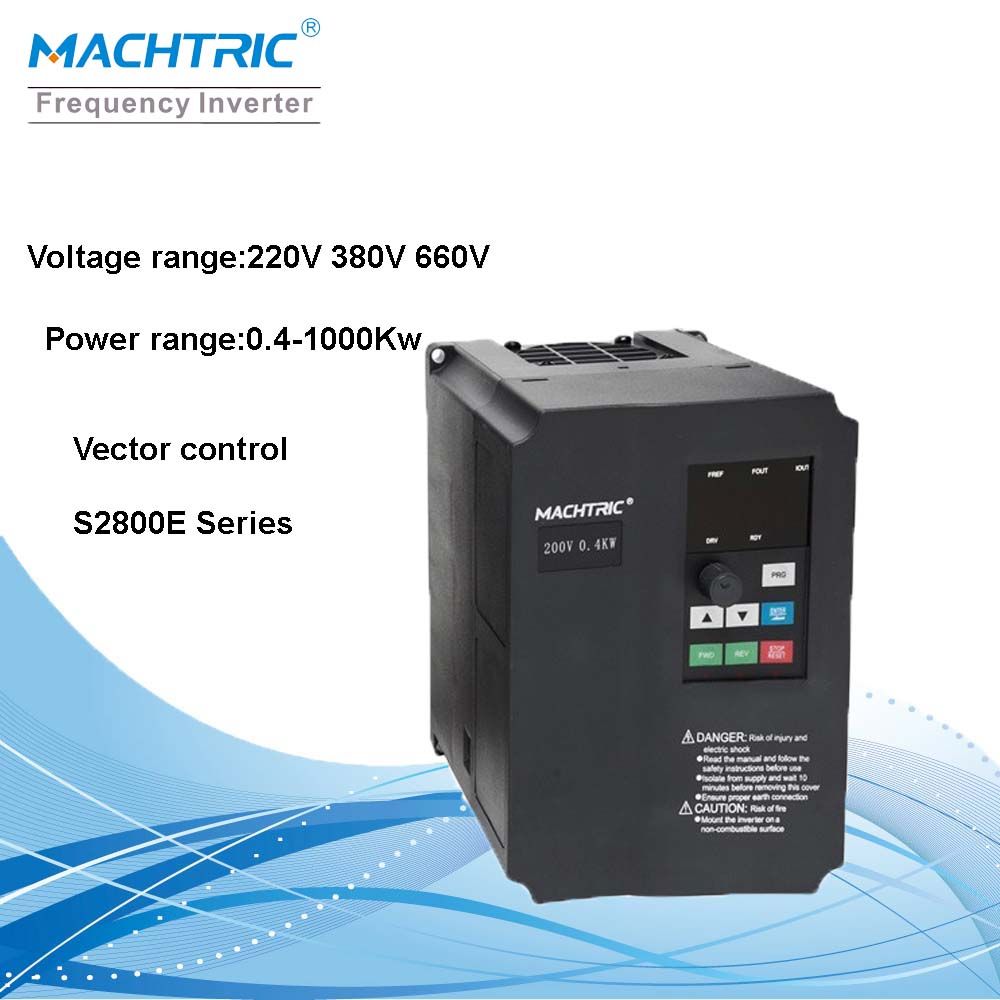

380V 5.5kw Variable Voltage Variable Frequency Drive with spinning frame
Products advantage:
- Certification: ISO9001 & CE
- Reasonable price
- Received the National Invention Award
| Model | S2800 E |
| Input | Rated Voltage& Frequency | Singel phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
| Votage Allowable Range | 220/380±15% |
| Output | Output Voltage Range | 1~rated input voltage |
| Output Frequency Range | 0~600Hz |
| Techinc | Control Mode | Sensorless Vector Control, V/F control |
| Overload Capacity | 150% rated current in 60s; 180% rated current in 10s |
| Start Torque | 0.5Hz/150% with vector senserless control |
| Adjustment Ratio | 1:100 with vector senserless control |
| Speed Control Accuracy | Maximum speed ±0.5% with vector senserless control |
| Carrier Frequeny | 0.5~15Hz |
| Terminal | Programmable Digital Input | 4 terminals |
| Programmable Analog Input | FIV:0~10V, FIC:0~10V or 0~20mA |
| Coupling Output | 1 set |
| Relay Output | 1 set |
| Analog Output | 1 set-option of 4~20mA/ 0~10V |
| Function | Frequency Setting | Digital, Analog, Series communication, Multi-Speed, PID,
etc |
| PID Function | Built in |
| Multi-speed Function | 8 speeds |
| Adjustable frequency | Stable frequency |
| Off Power | Keep running in power off instantly |
| Jog Key Function | Multi-function setting by Users |
| Voltage Adjustment | Auto maintain output voltage stable in changing of power |
| Failure Protection | 25 types of failure protection: over current, over voltage
, low voltage,
over heat, short phase, over load, etc, |

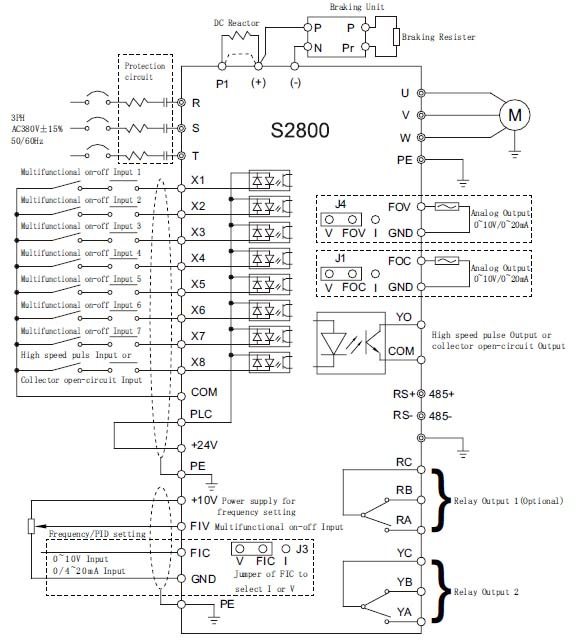

Wiring diagram:
Target market of S2800 E series Inverter
Paper machinery Screw output device
Drawing Equipment Dyeing plant
Injection plastic equipment Air conditioning system
Machine tool equipment Boiler system
Chemical fiber equipment Water supply, oil transportation installation. Etc
Textile equipment
Why choose us? 20 years experience at produce frequency inverter
10 years OEM experience for customers
Products sold for more than 40 countries
After-sales responding within 24 hours
One to one pre-sales consulting services
Factory located in Shanghai, with high-tech professional engineer teams.
