| Prod Model: |
S800E |
| VSD: |
Variable Speed Drive |
| VFD: |
Variable Frequency Drive |
| Vvvf: |
Variable Voltage Variable Frequency |
| Control Mode: |
V/F Control |
| Certificates: |
Ce, ISO |
| Voltage: |
220V |
| Power Rate: |
0.2kw-1.5kw |
| Phases: |
1 Phases |
| Color: |
Black |
| Applicable: |
Fan/ Pump |
| Application: |
Single-phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
AC-DC-AC |
| Nature Of DC Power: |
Frequency Inverter |
Product Description

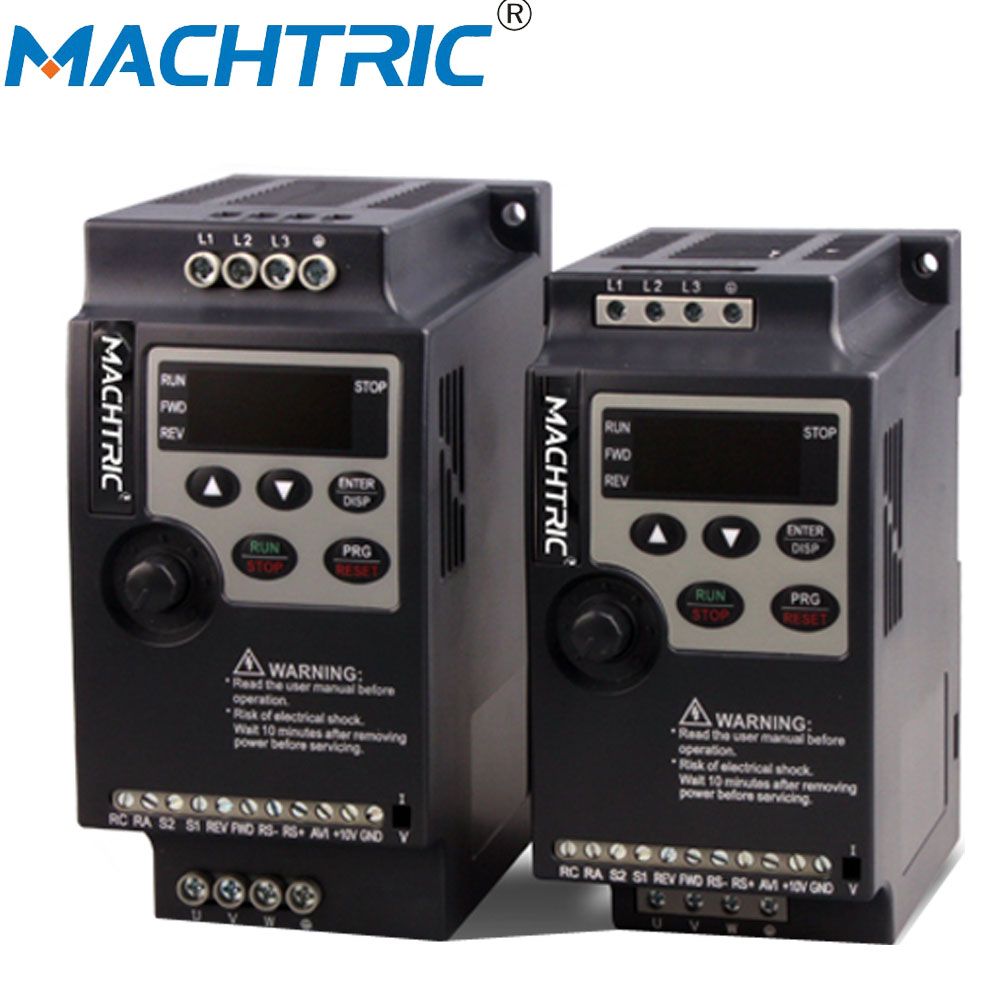

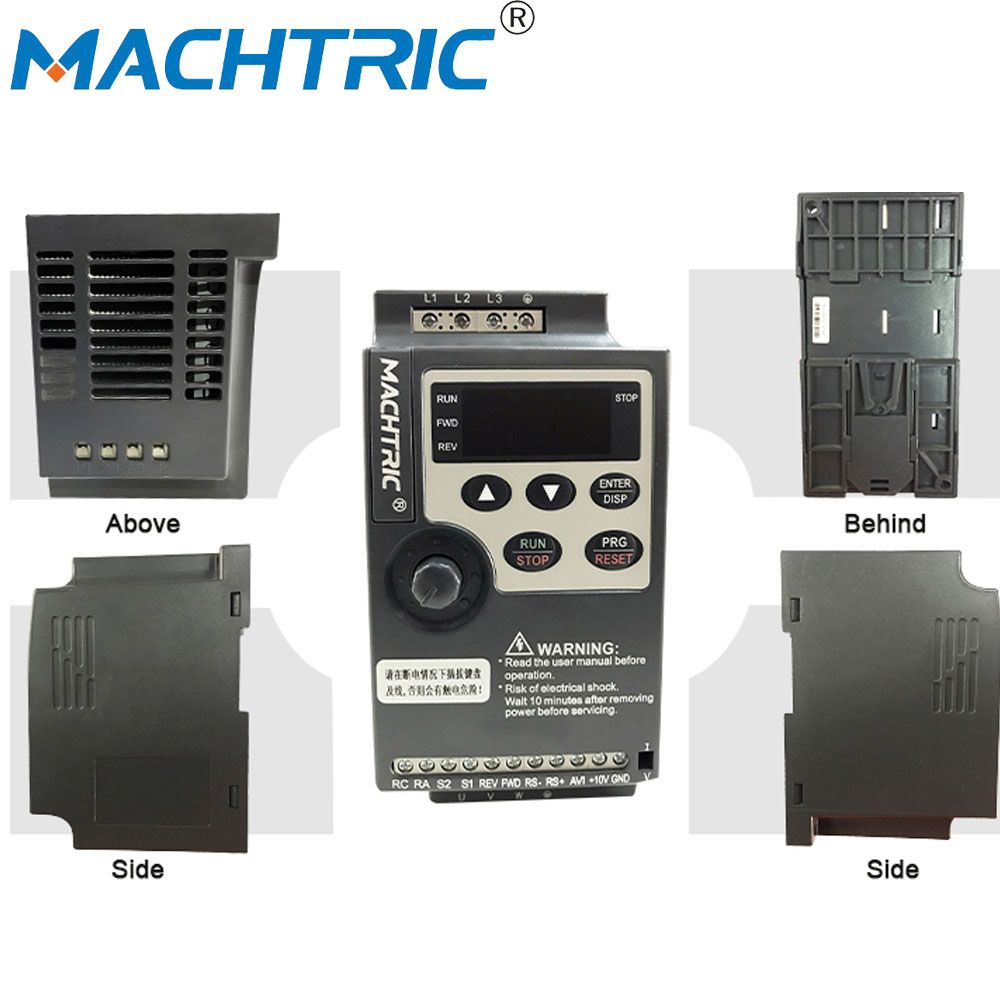

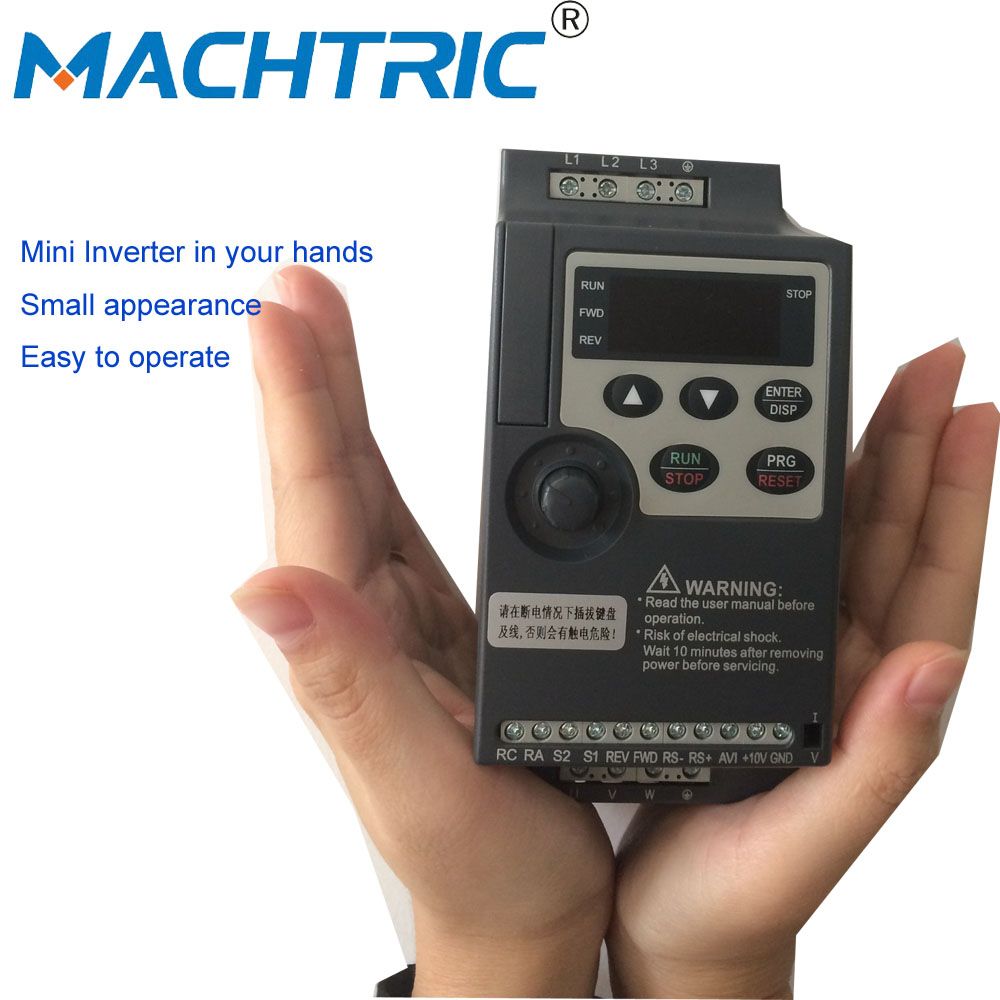

0.75~2.2KW mini size variable frequency inverter AC drive S800E
S800 E Series
User's Manual
Micro Universal -Purpose Drives
| Items | S800E |
Power
Supply | Rated voltage, Frequency |
One-phase/Three-phase AC 220V 50/60Hz |
| | Voltage Range |
220V: 170~240V |
| Output | Voltage Range | 220V: 0~220V |
| | Frequency Range | 0.10~400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. |
| Control SpeciAlations | Output Frequency
Range | 0.10Hz~400.00Hz |
| | Frequency Setting
Resolution | Digital input: 0.01Hz, analog input: 0.1% of
maximum output frequency |
| | Output Frequency
Accuracy | 0.01Hz |
| | V/F Control | Setting V/F curve to satisfy various load
Requirements. |
| | Torque
Control | Auto increase: auto raise torque by loading
Condition; Manual increase: enable to set
0.0~20.0% of raising torque. |
| | Multifunctional
Input Terminal | Four multi-function input terminals, realizing
functions including fifteen section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
| | Multifunctional
Output Terminal | 1 multi-function output terminals for displaying
of running, zero speed, counter, external
abnormity, program operation and other
Information and warnings. |
| | Acceleration/ deceleration Time Setting | 0~999.9s acceleration/deceleration time can be set individually. |
Other functions
| PID Control | Built-in PID control |
| | RS485 | Standard RS485 communication function(MODBUS) |
| | Frequency Setting | Analog input: 0 to 10 V, 0 to 20mA can be
selected;
Digital input:Input using the setting dial of the
operation panel or RS485 or UP/DOWN.
Note:AVI terminals can be used to select an
analog voltage input(AV) and analog current
input(AI) through the switch J2.
Note: AVI terminals can be used to select an
Analog voltage input (AV) and analog current
Input(AI) through the switch J2. |
| | Multi-speed | Four multifunction input terminals, 15 section
speed can be set |
| | Automatic
voltage |
| Model | Input | Power
Output
(KW) | Capacity
(KVA) | Current
Output
(A) | Load
Capacity
(60s)(A) | Motor
Equipped
(KW) |
| S800-2T0.4GE | 1PH/3PH
220V-
50/60HZ | 0.4 | 1.0 | 2.5 | 3.75 | 0.4 |
| S800-2T0.75GE | 0.75 | 2.0 | 5.0 | 7.50 | 0.75 |
| S800-2T1.5GE | 1.5 | 2.8 | 7.0 | 10.50 | 1.5 |
About the inverter's installation environment, please ensure it is in accordance with the following condition:
1) Environment temperature from -10ºC to +40ºC
2) Environment humidity 0~95% without condensing
3) Away from direct sunlight
4) The environment does not contain corrosive gas and liquid
5) The environment does not contain dust, floating fiber and metal dust.
6) Far away from radioactive materials and combustible substances
7) Far away from electromagnetic interference sources ( as welder, high-powered machines)
8) The installation surface shall be firm. Without vibration, the vibration cannot be avoided, please add anti-vibration spacer to reduce vibration.
9) Please install the inverter to a location where it is good for ventilation, inspection and maintenance, and away from heating unit ( as brake resistor)
10) Preserved enough space for inverter installation, especially for multiple inverters installation, please pay attention to the laying position of the inverter, and install an extra cooling fan to keep the environment temperature lower than 45ºC.
