Place of Origin: Fujian, China (Mainland)
Brand Name: MC
Model Number: S1100E
Output Power: 0.4-475KW
Output Type: Multiple
Input Voltage: 200-240V, 380-460V
Output Voltage: 200-240V, 380-460V
Type: AC-DC-AC
Output Frequency: 0-400Hz
Output Current: 2.5-940A
Ariable frequency inverter: AC frequency inverter
Dalas inverter: Frequency Inverter
Packaging & Delivery
Packaging Details: Standard Exported packing
Delivery Detail: 10-15days after payment
Specifications

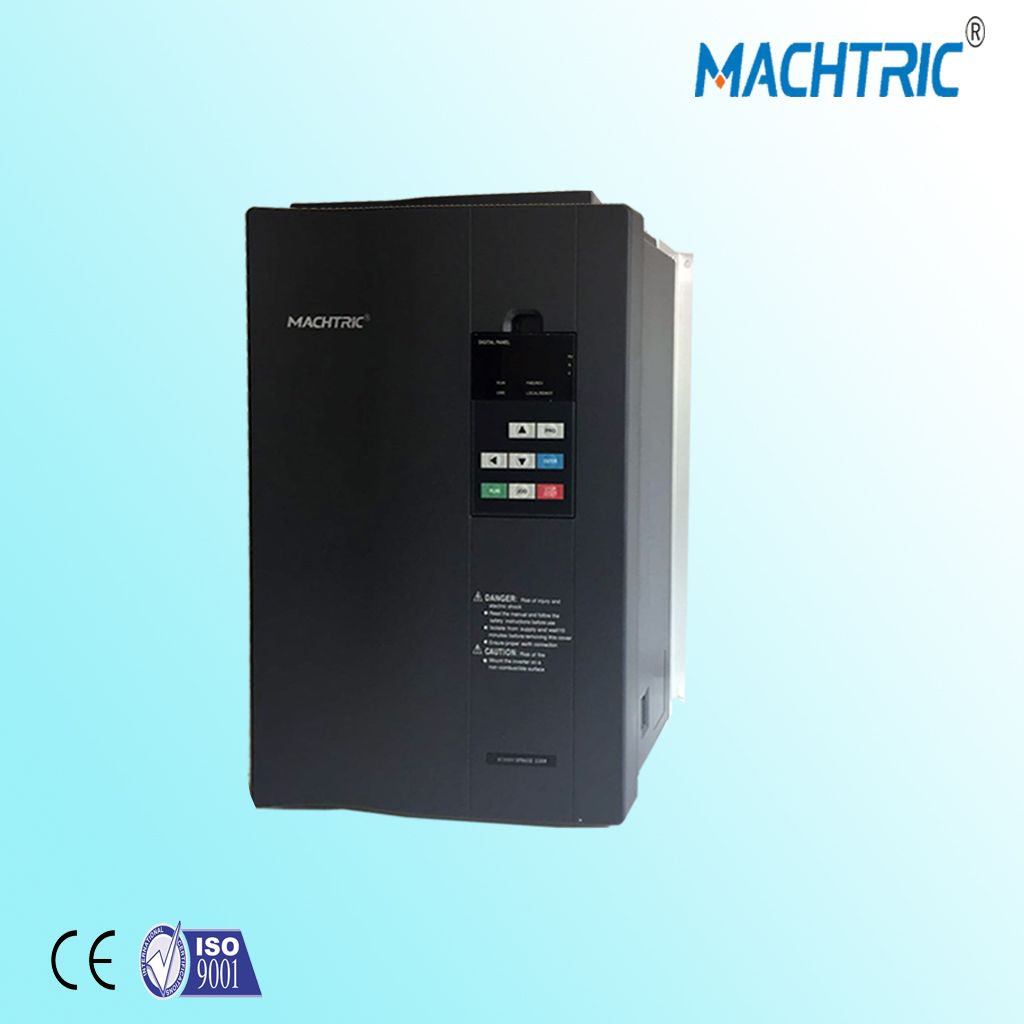

S1100E Series Inverter, High performance, superior performance, low noise, Mini size, Adopting the latest generation IGBT technology
Specifications:
1) Rated voltage: 220V, single & 3 phases, 440V, 3 phases
2) Power range: 0.75 ~ 315kW
3) Output frequency: 1.0 ~ 400Hz
Feature:
1. High performance, superior performance,
2. Low noise,
3. Mini size,
4. Adopting the latest generation IGBT technology
S1100 E Series-Universal
Purpose Inverter
High-performance, multifunctional
Universal inverter
The hole size of the tray for the operating panel
5.5KW(included) above: 141.5mmx79.5mm
3.7KW(included) below: 99.5mmx56mm
Target market of S1100 E series Inverter
Air conditioning, greenhouse, cold room
Blowing machine, water pump, air compressor
Conveyor, conveyor beit, cold storage facilities
CNC lathe, grinder, drill press, vertical machining centers, saws bed
Milling machine, setting machine
Weaving/knitting machines, bleaching/dyeing machines, fabric
Inspection machine, setting machine
Printing machine, rolling machine
Industrial washing machine, dry cleaning equipment
Plastic/ rubber processing machines (injection molding machine, crushing)
Machine, extrusion machine)
Bag making machines, hot bag machine, woven bag machine
Printing equipment, packaging machine, filling/sealing machine, etc.
Something about VFD
A variable-frequency drive (VFD) (also termed adjustable-frequency drive, variable-speed drive,
AC drive, micro drive or inverter drive adjustable-speed drive used in electro-mechanical drive
Systems to control AC motor speed and torque by varying motor input frequency and voltage
Three-phase induction motor single-phase motors
Pronounced in variable-torque centrifugal fan and pump applications Variable Torque AC Drive
AC variable frequency drives (VFD) for motor speed control
Variable-Speed Drive
Variable-Frequency Drive
Adjustable-Frequency Drive
Adjustable-Speed Drive.
|
Items |
S1100 E |
Power
Supply |
Rated voltage, Frequency |
Single phase/Three phase 220V 50/60Hz Single-phase 220V 50/60Hz |
Voltage Range |
220V: 170V~240V; 220V: 170V~240V |
Output |
Voltage Range |
220V: 0~220V; 220V: 0~240V |
Frequency Range |
0.10`400.00Hz |
Control method |
V/F control, Space vector control. |
Indication |
Operating status/Alarm definition/interactive guidance: eg, frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
Control Specifications |
Output Frequency Range |
0.10Hz~400.00Hz |
Frequency Setting Resolution |
Digital input: 0.01Hz, analog input: 0.1% of maximum output frequency |
Output Frequency Accuracy |
0.01Hz |
V/F Control |
Setting V/F curve to satisfy various load requirements |
Torque Control |
Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional Input
Terminal |
Eight multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal |
3 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
Acceleration/deceleration time Setting |
0~-6000s acceleration/deceleration time can be set individually |
Other Functions |
PID Control |
Built-in PID control |
RS485 |
Standard RS485 communication function(MODBUS) |
Frequency Setting |
Analog input: 0 to 10V, , 0 to 20mA can be selected;
Digital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
Multi-speed |
Eight multifunction input terminals, 15section speed can be set |
Automatic voltage regulation |
Automatic voltage regulation function can be selected |
Counter |
Built - in 2group of counters |
Protection/
Warning Function |
Overload |
150%, 60 second(Constant torque); 120%. 60 second (variable torque) |
Over Voltage |
Over voltage protection can be set |
Under Voltage |
Under voltage protection can be set |
Other Protections |
Overheat, short circuit, over current, and parameter lock and so on |
Environment |
Ambient Temperature |
-10 ° C to 40 ° C (non-freezing) |
Ambient Humidity |
Max. 95%(non-condensing) |
Altitude |
Lower than 1000m |
Vibration |
Max. 0.5G |
Structure |
Cooling Mode |
Forced air cooling |
Protective Structure |
IP20 |
Installation |
Mode |
Below 90KW: Wall Mounted; 110~200KW: Wall Mounted or in Cabinet; Above 220KW: in Cabinet
|
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
