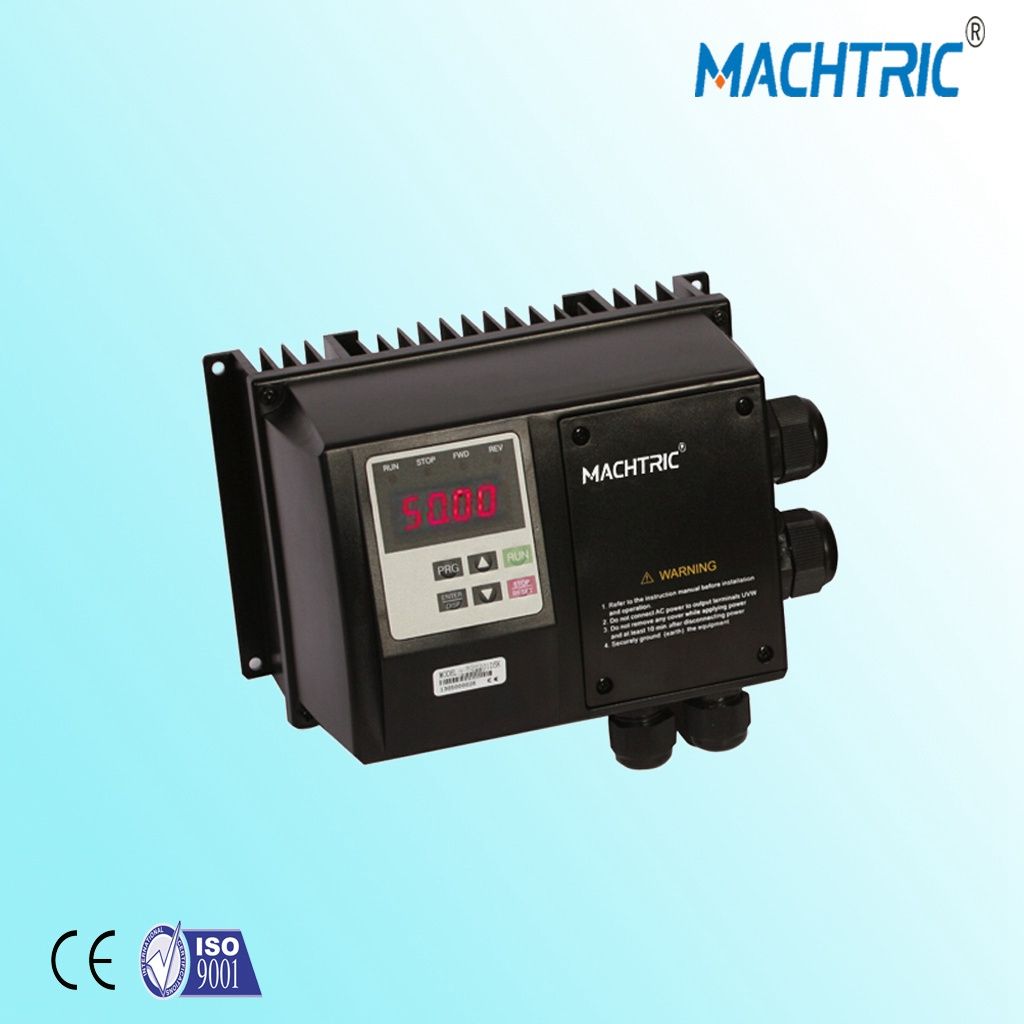

| Model | S2100S |
| Input | Rated voltage,Frequency | 3 AC 380V / 220V; 50-60 Hz |
| Voltage Range | 380V: 330V~440V;220V: 170-240V |
| Output | Voltage Range | 380 V: 0~380 V; 220V: 0-220V |
| Frequency Range | 0.10~400.0 Hz |
| Control method | V/F control,Space verctor control |
| Indication | Operating status/Alarm definition /interactive guidance;eg,frequency setting,the output frequency/current,DC bus voltage,the temperature and so on. |
| Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
| Frequency Setting Resolution | Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
| Output Frequency Accuracy | 0.01 Hz. |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase:auto raise torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
| Multifuncional Input Terminal | 8 multi-function input terminals,realizing function including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
| Multifuntional Output Terminal | 3 multi-function output terminals for displaying of running,zero speed,counter,external abnormality,program operation and other information and warnings |
Advantage :
Big savings on installation: With a built in RFI filter, the S2100S IP65 inverter can be positioned close to the motor which cuts the cost of shielded motor cables. Choose the version with integrated insulator to simplify your external connections.
Big performance: The S2100S IP65 is a modern sensorless vector inverter with 200% overload capacity, a wide range of supply and fieldbus options, and excellent I/O.
Big advantages of easy handling: The S2100S IP65 inverters integrate the EPM memory module - a simple plug in chip that stores all the drive settings. The EPM module can be programmed off-line and the settings transferred from drive to drive in seconds. In the unlikely event that a drive fails, the EPM guarantees you minimum downtime.
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
