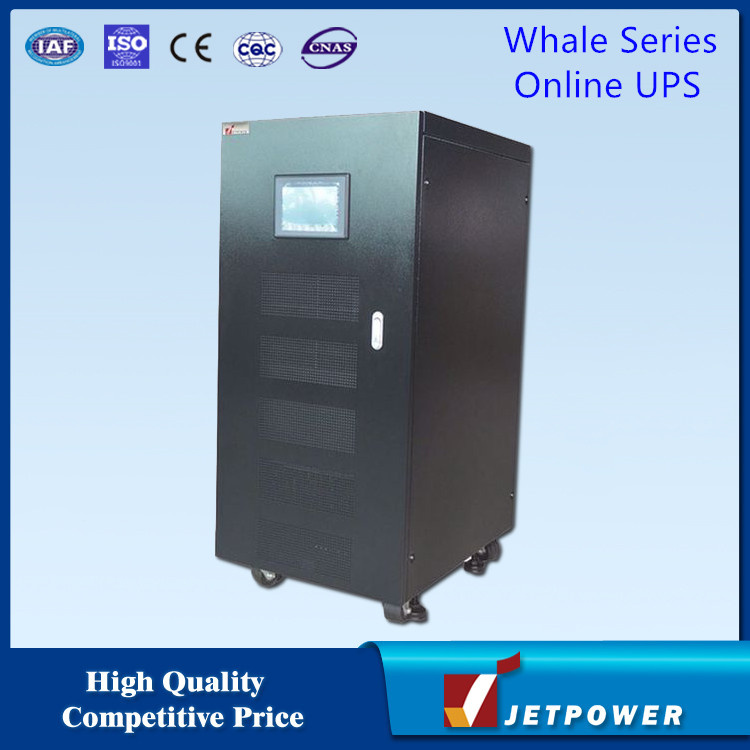

380V Three Phase 160kVA Online UPS with Isolation Transformer
| Price: |
US $ 2000-40000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Whale series 3-in/3-out 380V Industrial Online UPS (6kVA~200kVA)With Isolation Transformer Features:
1. All digital DSP control technology;
2. Advanced IGBT inverter technology;
3. Pure on-line double conversion technology;
4. Perfect protection:AC input/output over/under voltage, over load, short circuit, over-temperature, under-voltage warning, and battery over charge protection etc.;
5. Reduntant parallel function:up to 8 units can be paralleled freely;
6. Powerful communication system: RS-232 PORT, dry contact relays, emergency switch EPO interface;
7. Low self-consumptioin and high efficiency;
8. Pre-alarm system;
9. Friendly Touch Screen display;
10. Wide AC input range;
11. Powerful overload ability: under inverter mode-overload capacity 110%/125%/150% for 300min/10min/1min; under bypass mode, oerload 150%/170%/250 for 60min/10min/1min.
UPS Production:
Company profile:
Certificates:

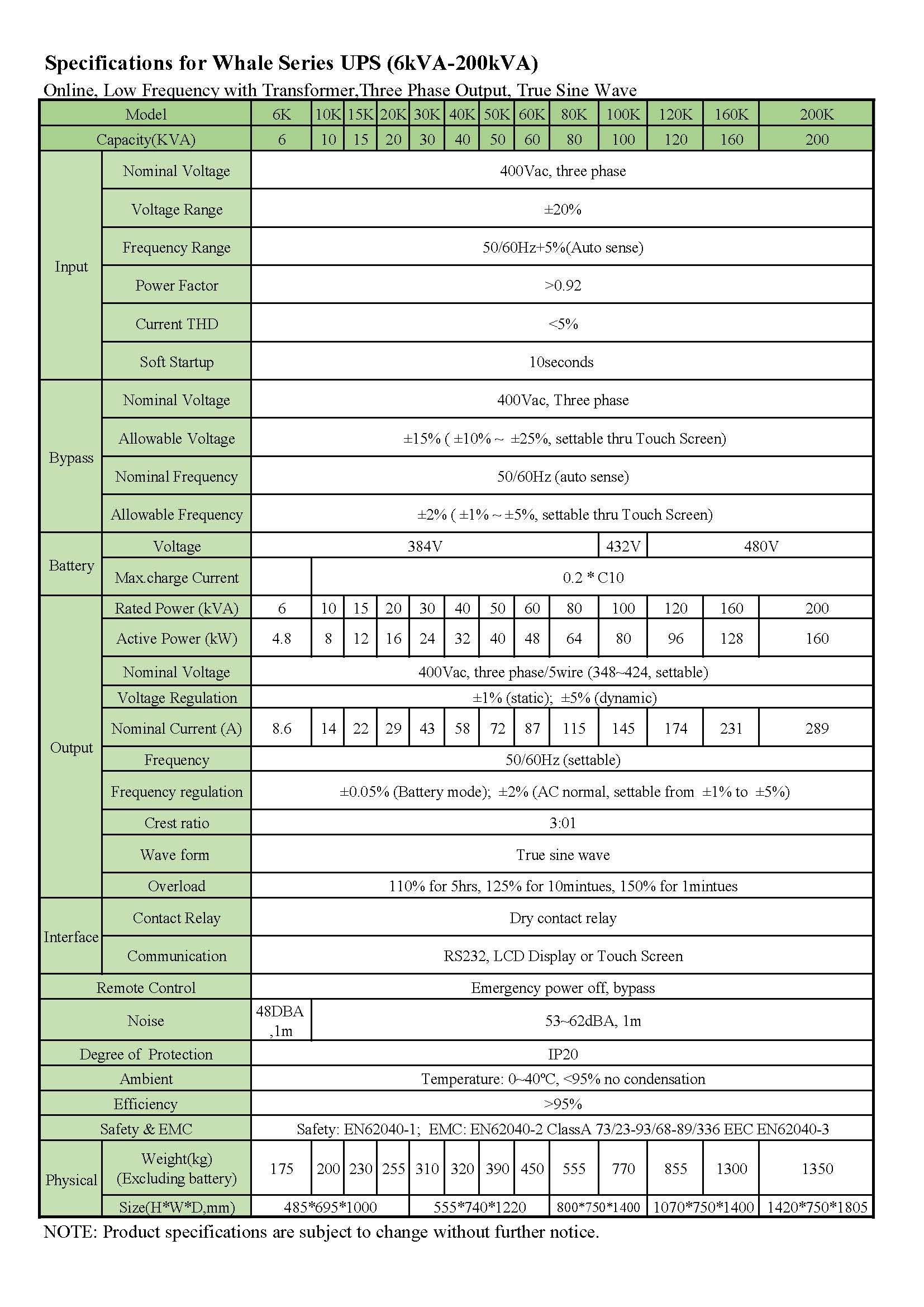

| Prod Model: |
Whale-160K |
| Design: |
Online UPS |
| Capacity: |
160kVA/128kw |
| Wave Form: |
True Sine Wave |
| Input Voltage Range: |
400VAC, Three Phase |
| Output Voltage: |
400VAC, Three Phase |
| Battery Voltage: |
480VDC |
| Max Charge Current: |
0.2*C10 |
| Efficiency: |
95% |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overload |
| Brand: |
Jetpower |
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
