| Prod Model: |
SPS60-48 |
| System Capacity: |
60A/3600W |
| System Input Voltage: |
176-300VAC, 1 Phase/3 Wire |
| System Output Voltage: |
42-58VDC |
| System Size: |
482*290*44mm |
| Rectifier Model: |
Mr4815*1-4PCS |
| Controller Model: |
CAS-03: RS232/RS485, LCD |
| Battery Management: |
Yes |
| AC Input: |
1*32A/2p, Single Phase |
| DC Distribution: |
24V/100W, 12V/150W |
| Battery Breaker: |
1*32A/2p |
| Output Type: |
Single |
| Warranty: |
>2 Years |
| Output Power: |
>500W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CSA |
| Input Voltage: |
176-300VAC |
| Brand: |
Jetpower |
Product Description
48V 60A 1U Mini Rack Mounting AC to dc rectifier power supply systemOutdoor wall-mount, with 1controller and 2pcs*15A rectifier module
System model: SPS60-48/CR4830
System capacity: 30A
System input voltage: 90~300VAC, 1phase/3wire
System output voltage: 48VDC
System Sizes: 482*290*44mm
Rectifier model: MR4815M (main specs:metal frontal panel, Single input (90-300VAC), 48VDC output, 870W, efficiency: 90%, 94%)
Controller model:CAS-03 (main specs: RS232/RS485,LCD,battery management, alarm)
AC input: 1pcs* 32A/2P
DC distribution: 24V/100W, 12V/150W
AC output: 220V/200W
Battery breaker: 1pcs* 32A/2P
4pcs *alarm relay
System lightning protection: AC lightning protection (Class-C), DC output lightning protection
Cooling: Air-cooling
IP protection: IP45
Optional: Secondary LVD, temperature compensation cable, lead-acid battery 40Ah, Lithium iron 40Ah
Advantages:
Reliability
Powtech has been engaged in designing and manufacturing online UPS,Line interactive UPS,Offline UPS nearly for 20 years.
Powtech professional design teams and strict quality control systems ensure each product from Powtech is reliable and ideal deals.
Powtech quality products meet the demands of many clients all around the world well according to their specific requirements.
Faster Delivery
With our own factory and product line, we can ensure faster delivery in the industry.
Further more, we have accumulated rich resources in shipping channels, which also promise our faster delivery time.
Powtech standard cases can be finished within 7 days and those custom-made within 8 days.
Lower Price
Powtech are committed to providing the best products for money of our customers all over the world.
Powtech has its own factory and massive production line,Which ensures that we can procure all materials at a lower purchasing cost than our competitors.
We promise that all products from Powtech are the most affordable in the industry.
Specifications for 48V Rectifier System| Model | SPS30-48 /MR4815 | SPS60-48 /CR4830 | SPS90-48 /CR4830 | SPS120-48 /CR4830 | SPS200-48 /SR4850 | SPS250-48 /SR4850 | WPS30-48 /MR4815 | WPS60-48 /MR4815 |
| Output Current | 30A | 60A | 90A | 120A | 200A | 250A | 30A | 60A |
| Rated Output Power | 1740W | 3600W | 5400W | 7200W | 11600W | 14500W | 1740W | 3600W |
| Rated Output Voltage | 53.5Vdc (42-58 Vdc) |
| AC Input |
| AC Input Voltage Range | 176~300Vac, 1phase/3wire (@ full load) |
| AC Input Frequency | 45Hz ~65Hz |
| AC input Power Factor | ≥0.99 |
| AC transfer Efficiency | ≥91% | ≥92% |
| AC Input Lightening protection | NA | 1pc*50A/2P ClassC SPD | 1pc*63A/2P ClassC SPD | 1pc*100A/2P ClassC SPD | 1pc*100A/2P ClassC SPD | 1pc*30A/2P ClassC SPD | 1pc*30A/2P ClassC SPD |
| DC Output |
| Output Voltage Range | 42~58 Vdc |
| Current Share | ±5% |
| Load Regulation | ≤0.5% |
| Voltage Regulation | ≤0.1% |
| Environment |
| Operating Temperature | (-20 to 50°C) (Rectifier Temp Range: -45°C to 75°C) |
| Relative Humidity | 5%~95% RH, No Condensation |
| Configuration |
| Rectifier Module | 2*MR4815 | 2*CR4830 | 3*CR4830 | 4*CR4830 | 4*SR4850 | 5*SR4850 | 2*MR4815 | 4*MR4815 |
| Controller | 1*CAS-03 | 1*CAS-03 | 1*CAS-03 | 1*CAS-03 | 1*CAS-03 | 1*CAS-03 | 1*CAS-03 | 1*CAS-03 |
| DC Distribution | 1pc*30A | 1pc*60A | 4pcs*32A/1P 4pcs*16A/1P (customizable) | 2pcs*63A/1P 4pcs*32A/1P 4pcs*16A/1P (customizable) | 1st LVD: 1pc* 63A /1P 5pcs*32A/1P
2nd LVD: 2pcs*16A /1P 2pcs*32A/1P (customizable) | 4pcs*6A/1P 1pcs*16A/1P2pcs*20A/1P 2pcs*80A /1P (customizable) | 5pcs*16A /1P 1pcs*32A/1P (customizable) | 5pcs*16A /1P 1pcs*32A/1P (customizable) |
| Battery Breaker | 1pc*30A | / | 2pcs*63A/1P
or 1pc*100A/1P | 2pcs*100A/1P | 2pcs*100A/1P | 2pcs*125A/1P | 1pcs*32A/2P | 1pcs*32A/2P |
| Alarm Relay | 4pcs | 4pcs | 4pcs | 4pcs | 4pcs | 4pcs | 4pcs | 4pcs |
| Others |
| Standard | UL60950/EN60950, EN55022, RoHS |
| Communication | LAN, RS232/RS485, Dry contact |
| Dimension (mm) | 482*290*44 (Subrack) | 482*290*44 (Subrack) | 482*330*132 (Subrack) | 482*300*176 (Subrack) | 482*300*264 (Subrack) | 482*300*264 (Subrack) | 650*550*300 (wall-mount) IP45 | 650*550*320 (wall-mount) IP45 |
|
| Optional | | | 2nd LVD, DC Lightning Protection at DC output | 2nd LVD, DC Lightning Protection | 2nd LVD, DC Lightning Protection | 2nd LVD, DC Lightning Protection | 2nd LVD, Teperature Compensation Cable, Lead-acid Battery 40Ah, Lithium Iron 40Ah |
Contact:
Alf Lu (Mr.)
TEL:+86 532-88721735-805
M B:+86 13854256587

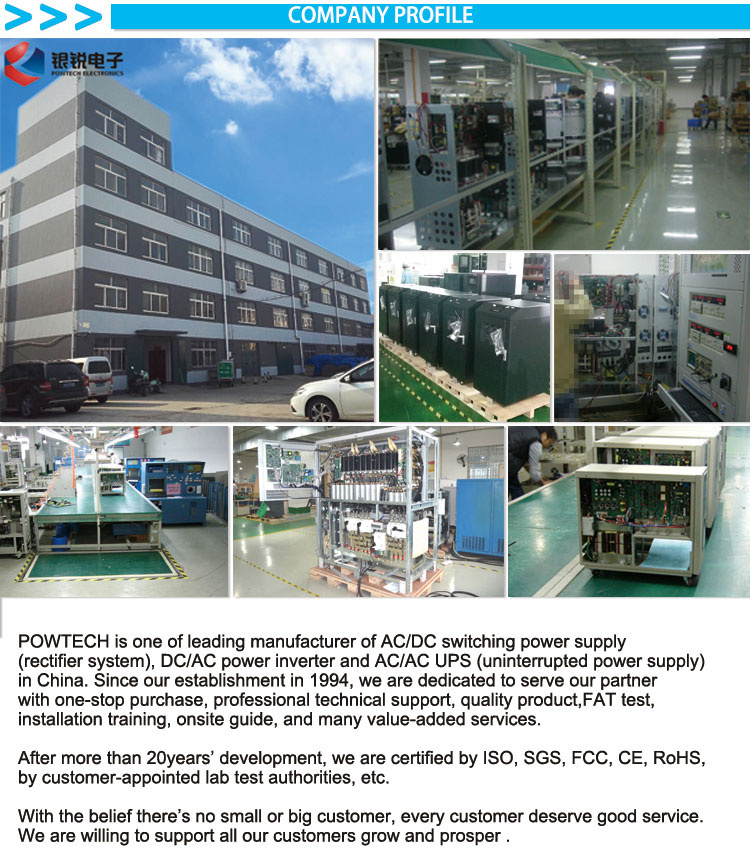

Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
