3G Compact GPS Tracking Device for Vehicle Security, Driver Safety and Fleet Management

Eelink specialize in the R&D manufacture and sales of 3G GPS Vehicle Tracker , 3G GPS Motorcle Tracker, 3G GPS personal Tracker,  3G Car security products for Australia market.
Due to the global process of . By the end of 2016 mobile operators from Australia, the USA and Canada are going to turn off their 2nd generation base stations. More countries will follow their example in 2017 and 2018.

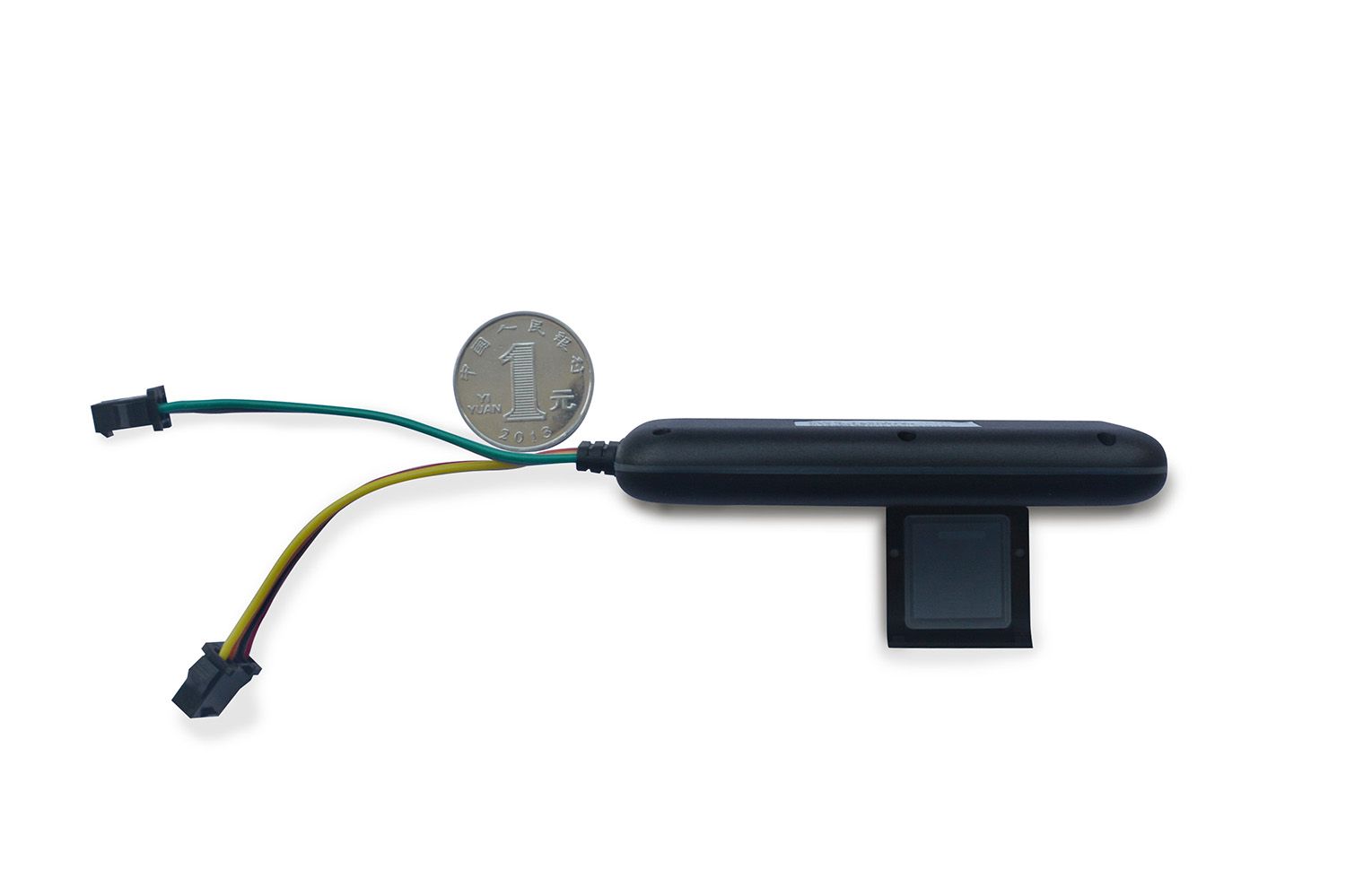

Utilizing cutting-edge GPS technology, the TK119-W features not only traditional tracking functions as cutoff petrol/electricity, geo-fence, ACC status checking, Speed & shift alarm, but optional digital outputs for Extend I/O port to add extension function, Waterproof level IP67 etc.

Product Description
Product Feature
GSM / WCDMA dual-mode 8-frequency,  universal in the world.
 Input voltage range: 7-36 V DC
 Double Module,GPS & LBS positioning.
 GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
Supports ACC status checking and vehicle status notifying.
Built-in battery, Power disconnect alarm & Low battery alarm.
Built-in G-sensor ,Vibration, collision and falling alarm.
GEO-fence alarm, speed & shift alarm.
Use relay to remotely cut the oil  (Precondition speed under 20KM/h or vehicle stop moving)
Extend I/O port to add extension function
Multiple protocol support, can be integrated to platform of customers
OTA upgrade firmware.
Water proof level IP67
PS: If you need cutting oil and electricity function, you chould choose to buy relay from us, but pls note that the devices should be matched with accessories to realize this function.

PLATFORM/APP:
Real-time Tracking
Route Play Back
Cut Oil (Need Relay)
Vibration Alarm
Collision / Falling Alarm
Speed Alarm
Geo-fence Alarm
Power Disconnect Alarm
Low Battery Alarm


Platefrom

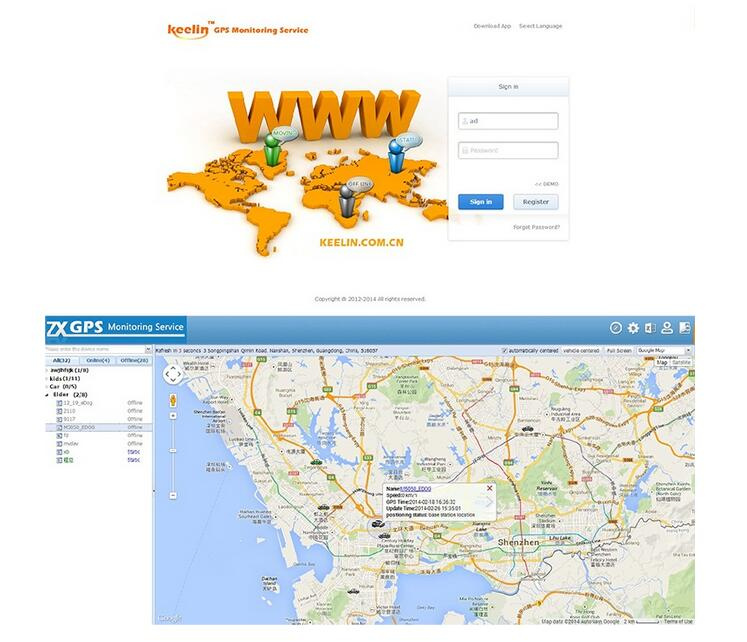

You can choose Keelin terminal monitoring platform or not.It is designed by EELINK, we can position, real time tracking and playback on the platform server.





GPS Tracker Operating Principle
There installed Satellite Receiver module and mobile phone module. GPS precise positioning with A-GPS and feedback position to the platform via GPRS at setting times(e.g. every 30s).It shows the precise position of the device on the map of platform. We need GPRS to transmit data, so the mobile phone with SIM card need the GPRS function.

Delivery
Sample and mini order will be delivered within 3 working days after the receipt of payment.
For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1,200,000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.


Voltage 12/ 24/ 36  VDC Work Current <50mA@12V Standby Current <10mA@12V GPS Accuracy 5-15m (Depend GPS signal) LBS  Accuracy About 200 m (Depending on density of base stations) GPS Frequency 1575MHz GSM Frequency 850/900/1800/1900MHz Hot/warm/cold Start <3s,<15s,<60s Battery Capacity 70mAh Dimensions (mm) 87(L)X41.6(W)X 12(H) Work Temperature -20ºC~70ºC Work Humidity 20%~80%RH Weight 50 g IP Level IP67

WCDMA Frequency: W850/W1900/W2100 MHz.
