Product Feature GSM / WCDMA dual-mode 8-frequency, universal in the world.
Input voltage range: 6-36 V DC
Double Module,GPS & LBS positioning.
GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
Supports ACC status checking and vehicle status notifying.
Built-in battery, Power disconnect alarm & Low battery alarm.
Built-in G-sensor ,Vibration, collision and falling alarm.
GEO-fence alarm, speed & shift alarm.
Use relay to remotely cut the oil
Extend I/O port to add extension function
Multiple protocol support, can be integrated to platform of customers
OTA upgrade firmware.

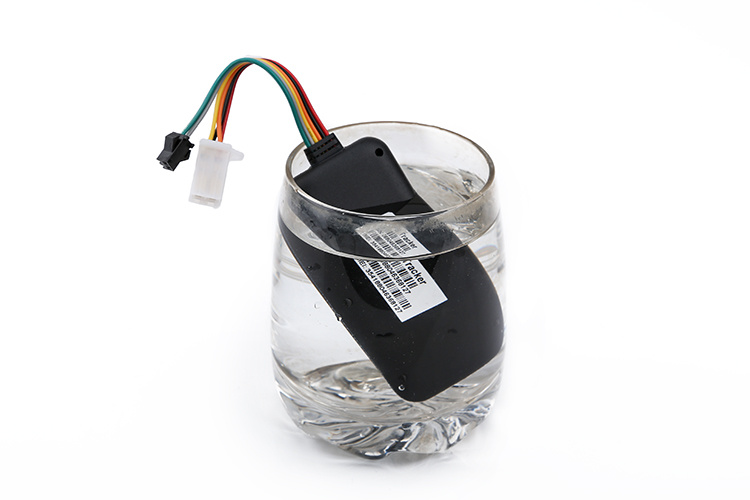

Water proof level IP67
PLATFORM/APP:Real-time Tracking
Route Play Back
Cut Oil (Need Relay)
Vibration Alarm
Collision / Falling Alarm
Speed Alarm
Geo-fence Alarm
Power Disconnect Alarm
Low Battery Alarm

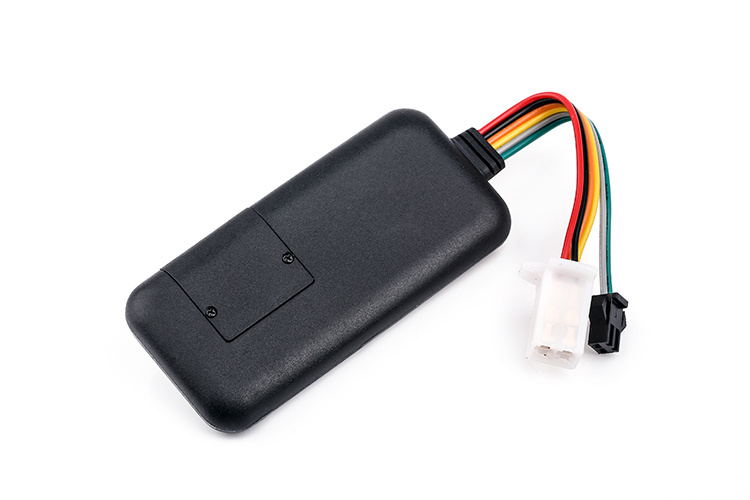

Products Picture

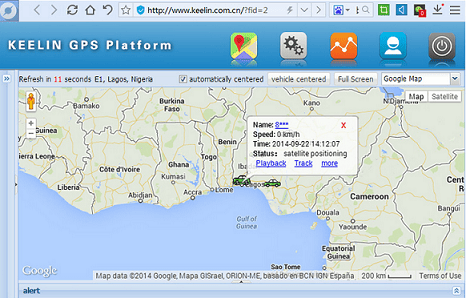

PlatefromYou can choose Keelin terminal monitoring platform or not.It is designed by EELINK, we can position, real time tracking and playback on the platform server.
GPS Tracker Operating PrincipleThere installed Satellite Receiver module and mobile phone module. GPS precise positioning with A-GPS and feedback position to the platform via GPRS at setting times(e.g. every 30s).It shows the precise position of the device on the map of platform. We need GPRS to transmit data, so the mobile phone with SIM card need the GPRS function.DeliverySample and mini order will be delivered within 1-2 working days after the receipt of payment.For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1,200,000 units per year. And for the popular units we hold 3000pcs stocks in advance per month. Voltage | 12/ 24/ 36 VDC | Work Current | <30mA@12V | Standby Current | <10mA@12V | GPS Accuracy | 5-15m (Depend GPS signal) | LBS Accuracy | About 200 m
(Depending on density of base stations) | GPS Frequency | 1575MHz | GSM Frequency | 850/900/1800/1900MHz | Hot/warm/cold Start | <3s,<15s,<60s | Battery Capacity | 90mAh | Dimensions (mm) | 87(L)X41.6(W)X 12(H) | Work Temperature | -20ºC~70ºC | Work Humidity | 20%~80%RH | Weight | 50 g | | IP Level | IP67 |
|
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.
We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
