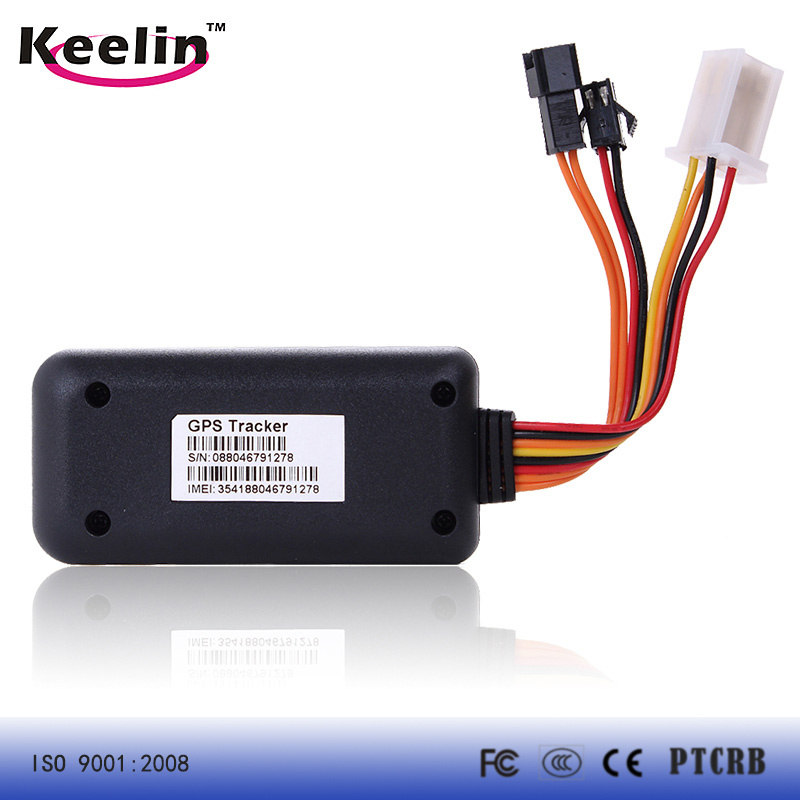

Product Features
*Supports quad bands,i.e. 850/900/1800/1900MHz, worldwide used.
*Wide Input Voltage:6-36V DC.
*GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle..
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
Alarm Type
Vibration Alarm(Optional)
Collision / falling Alarm(Optional)
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
SOS Alarm(need SOS Cable)
Base Specifications
Voltage 12VDC/24VDC/36VDCWork current <30mA@12V
Standby Curren <10mA@12V
GPS positioning accuracy 15m
GSM positioning accuracy 100m
GPS Frequency 1575MHz
GSM Frequency 850/900/1800/1900MHz
Hot/warm/cold start time <3s,<15s,<60s
Battery capacity 200mAh
Dimensions (mm) 79.5(L)X38.5(W)X10.5(H)
Operating temperature -20ºC~70ºC
Operating humidity 20%~80%RH
Net Weight 45 g

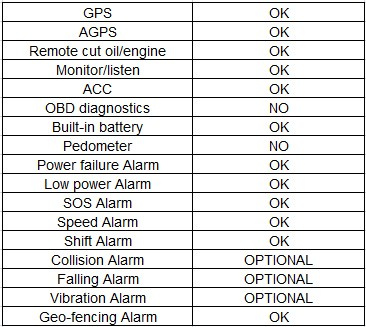

Main Function Table
Function Extension
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port , used for temperature and oil detection
Can be extended: External lithium battery port ,used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
Platform
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.

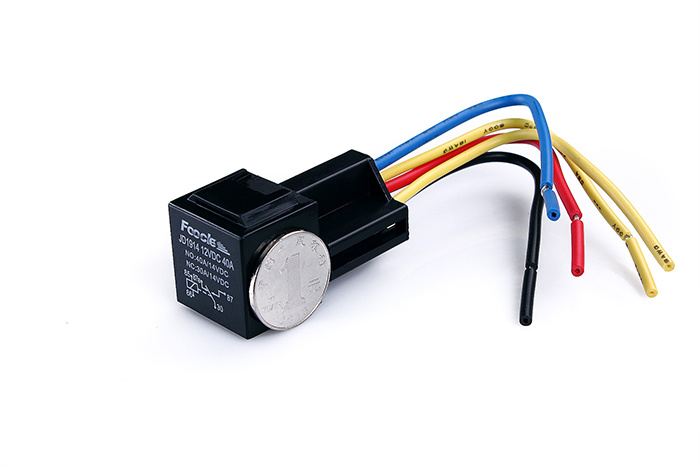

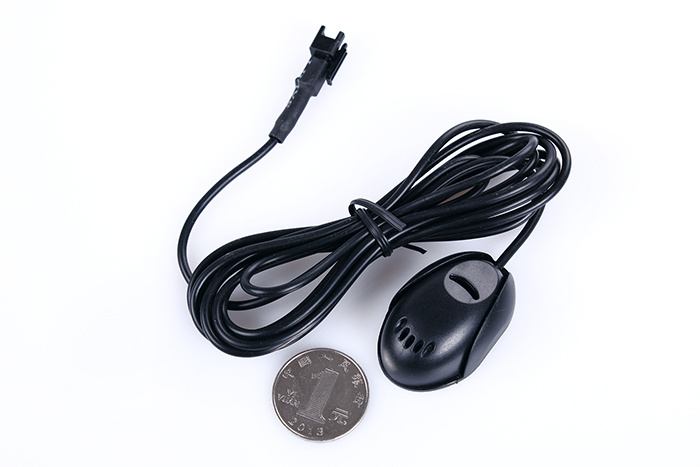

Accessories (Optional)Relay/ Microphone/SOS
| Base Specification |
| Voltage | 12VDC/24VDC/36VDC |
| Work current | <30mA@12V |
| Standby Current | <10mA@12V |
| GPS positioning accuracy | 15m |
| GSM positioning accuracy | 100m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold start time | <3s,<15s,<60s |
| Battery capacity | 200mAh |
| Dimensions (mm) | 79.5(L)X38.5(W)X10.5(H) |
| Operating temperature | -20ºC~70ºC |
| Operating humidity | 20%~80%RH |
| Net Weight | 45 g
|
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.
We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
