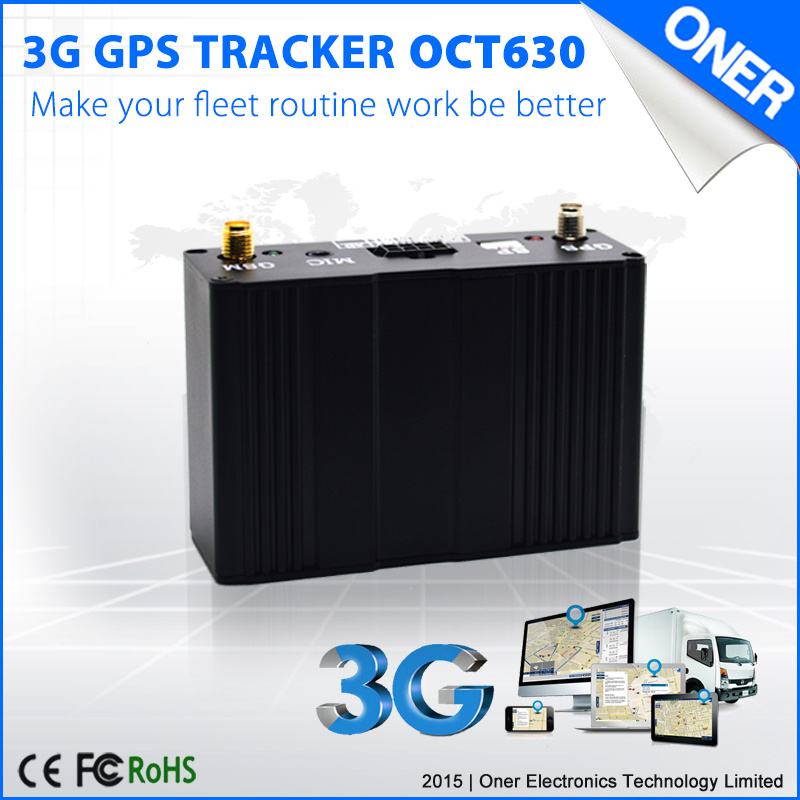

3G GPS tracker with real time googld map and tracking platform
Effective Technologies For Fleet Business
With expaned territory coverage and faster transmission speed, OCT630 brings the fleet business into the digital age, track your car without trouble and work well even in reamote area with weak signal. It makes work life a lot less stressful with automatic vehicle maintenance reminders, drivers' analytical reports, simplified payroll, decreased fuel costs and so much more!
OCT630 includes more new features and 3G connectivity with different frequency. With stable and fast
data transmission capacity, OCT630 make you ability to do tracking in the coverage gaps caused by the phase out of 2G. Further more, GPS tracker with 3g network support wider range of coverage, it can work well for those in remote, weak signal areas.
This 3g tracker is ideal for car tracking, fleet management, access tracking, etc. it allows you to set
schedule for all the cars. And multiple alerts like engine on alert, idle alert remind you to pay attention to
car security and maintenance. You also can get reminding when time to do maintenance.
OCT630 has extra accessories added such as camera, fuel sensor, RFID, Bluetooth among others.
Features
1. Tracking via SMS, GPRS, 3G (TCP/UDP)
2. High speed data transmisson
make stable tracking even in the area without stable signal.
3. Support expanded territory coverage, keep tracking for
those in remote area.
4. Support multiple frequency for working in different
countries: 900/2100MHz, 850/1900MHz, 850/2100Mhz
5. LBS tracking
6. Living location report: GPS data sent to server by time interval or distance
7. SOS panic button,emergency alarm.
8. Geo-fencing control and alarm.
9. Movement alarm
10. External power cut alarm
11. Stop car moving/Enable car moving
12. Mileage calculation report
13. GOOGLE MAP link for location via SMS.
14. ACC detecting:ACC detecting on/off status
15. Vehicle/driver Info setting and inquiry
16. Firmware update OTA_Tracker firmware's program can be updated on the air
17. 2 ways communication: Voice monitoring and speaking remotely on the phone (option)
18. Speed limitation
19. Check airtime/balance via SMS
20. Vehicle maintenance
21. Set driver working time via SMS
22. Engine on alarm
23. Data record with SD card(Option)
24. Fuel monitoring (option)
Technicial Specification
Power supply +9V - +35V / 1.5A
Backup Battery 550mAh
Dimension 60mmx85mmx30mm
Weight 145g
Operating temperature -20° to 55° C
Humidity 5% to 95% Non-condensing
Frequency 850/1900Mhz,900/2100Mhz UMTS | 850/900/1800/1900Mhz GSM
GPS Chipset Latest GPS SIRF-Star III chipset
GPS Sensitivity -158Db
GPS Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz chip rate
Channels 20 channel all-in-view tracking
Position Accuracy 10 m, 2D RMS
Velocity Accuracy 0.1 m/s
Time Accuracy 1 us synchronized to GPS time
Default datum WGS-84
Reacquisition 0.1 sec., average
Hot start <1 sec., average
Warm start <36 sec., average
Cold start 42 sec., average
Altitude Limit 18,000 m (60,000 feet) max.
Velocity Limit 515 m/second (1000 knots) max.
Interface 2 input and 1 output
LED 2 LED lights to show working status
Packing Contents(Standard)
1 GPS Vehicle Tracker
2 Relay
3 GSM Antenna
4 GPS Antenna
5 Power I/O Cable
Tracking System
http://onerststem.com ( demo user name: oner password:123 )
