3G WCDMA GPS Tracking Device
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
TL60 |
| Built-in Battery: |
250mAh |
| Frequency: |
850/900//1900/2100MHz |
| Size: |
42*33*35cm |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
| Port Number: |
Multichannel |
| Model: |
Integration Type |
| Chip: |
SiRF |
Product Description

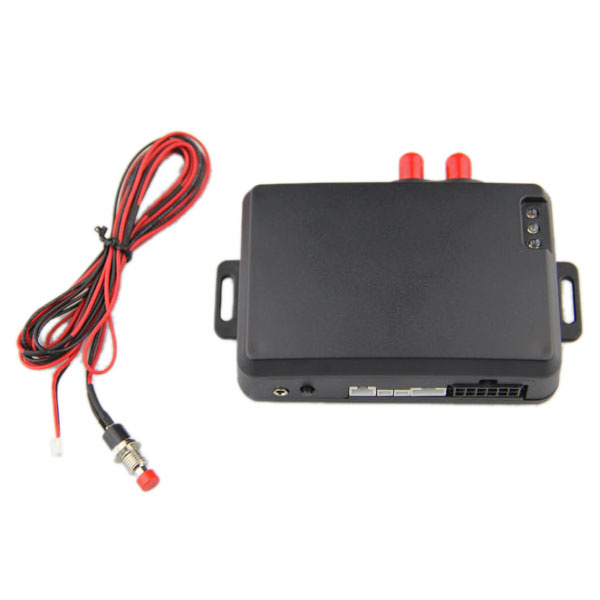

TL60 is a 3G(WCDMA) waterproof profesional GPS tracker designed for vehicles tracking applications.With professional chips, which support variety of features including:SOS,cut-off engine,listen-in, it is good for commerical tracking project.
Product Features:1. use USIM card, support WCDMA 3G network and GSM network.
2 .Support GPS satellite
3. support SMS/GPRS/ HSDPA/Internet data transportation
4. support mobile phone sms message to control and reach privacy security
5. support alarm by SMS, platform.
6. Built-in Li-ion battery
7. Integrate anti-theft, location, real-time control, monitoring, SOS panic alarm and tracking service.
Specification:
Enclosure dimensions | 93mm*62mm*25mm |
Weight | 200g |
DC Tolerance voltage | 9V - 35V |
Quad Band | 850/900/1800/1900MHz |
GPS Module | GPS/GLONASS |
Network | 3G network/wcdma network |
GSM Module | SIMCOM sim5360 sim5360e |
| | |
Protocol | NMEA0183 |
Number of Channels | 20 Channel Simultaneous Operation |
Current (GPRS online) | 60mA |
Current (GPRS transmission) | 80mA |
Sleeping mode | 40mA |
Accuracy Horizontal | <5 meters (50%), <8 meters (90%) |
Altitude | <10 meters (50%), <16 meters (90%) |
Velocity | 0.06 m/sec. |
Hot Start: | <13 sec |
Warm Start: | <42 sec |
Cold Start: | <84 sec |
Backup battery | 800mAh |
Communication | 3G GPRS \SMS\WCDMA |
Operating Temperature | -20°C to +55°C |
Storage Temperature | -40°C to +65°C |

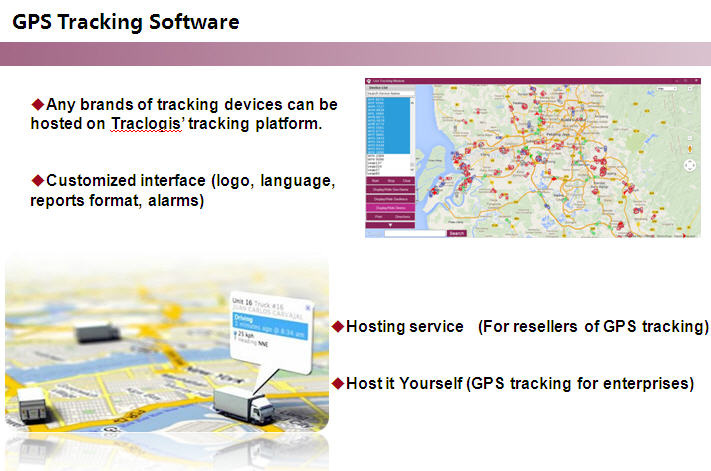

PLATFORM/APP:
- Real-time Tracking
- Route Play Back
- Cut Oil (Need Relay)
- Vibration Alarm
- Collision / Falling Alarm
- Speed Alarm
- Geo-fence Alarm
- Power Disconnect Alarm
- Low Battery Alarm
Unique Features:
1) Report simple (very easy compatible with your software)
2) Parameter configuration (via sms or pc-setup setup it)
3) Support Tcp/udp communications
4) Built in memory, storage the data in no gsm signal place.
5) Odometer or mileage(Via gps calculates mileage)
6) Prevent static excursion.
7) Intelligent Report.
8) ACK check enable or disable
9) SMS function
10) Fixed time/distance report
11) Geo-fence
12) Direction change report
13) SOS alarm
14) Built in backup battery, Lower battery alarm/power cut alarm
15) Over speed report
16) Sleeping mode
17) Arming and disarming
18) Emergency release
19) Communication: WCDMA 3G
Established in 2009, Traclogis is dedicated to provide Fuel control system and Fuel consumption monitoring solution and GPS-GSM/GPRS vehicle monitoring and fleet management solutions that has a transformative effect on the way business optimize their fleet and mobile assets.
With the development of modernization in industry and agriculture, and the wide use of industry monitoring and automatic management, the wireless control system is expanding rapidly, especially in irrigation works and electronic power, fuel consumption, with the strong demands from the market, Traclogis started the remote fuel monitoring solution study in 2009, based on the experience of fleet management solutions, we have released the complete solution of remote fuel monitoring solution successfully, which has helped our customers saving a lot of cost on the management of fleet and industrial equipment operation.
Traclogis is dedicated to enhancing the value of its customers' business through intelligent integration of location technology, information and services, according to the requests from the market, we can fulfill the needs of all sizes of companies,
No matter you are just going to enter into the fleet management industry or you have done successfully in this field, Traclogis can always be your partner.
Traclogis' strategy is to help our customers to lower threshold of entering into fleet management field, as well as saving cost for the fleet managers, Traclogis is ideally to provide full range of solutions to satisfied our clients, which include also OEM project according to customer's requests.
