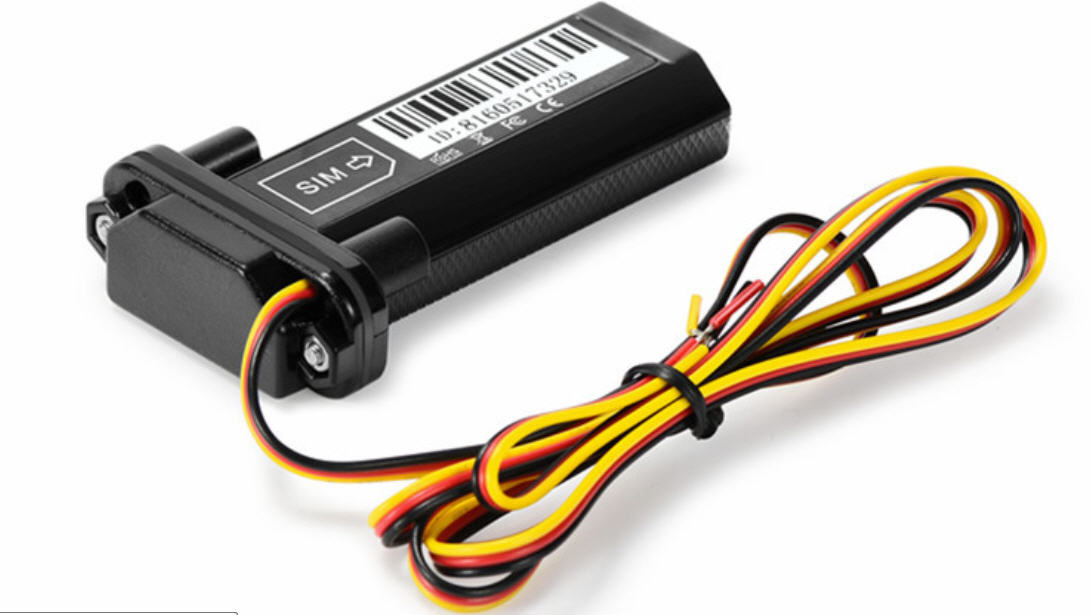

Commercial GPS vehicle tracker TL300
Product DescriptionThis tracking device is based on GSM/GPRS network and GPS Satellite positioning system, which is widely applied for tracking of yacht, boat, car, motorcycle, E-bike and other vehicles due to design of mini size, waterproof and wide voltage input 8-80V. It's one of your best choice on vehicle tracking with its practical functions and competitive price.Product Features
Stable & Practical Functions
Quad Band GSM, Enable to Work Worldwide
U-Blox GPS Chip, 56 Channels, Accuracy:10m
ACC detecting, Remote Engine cut, Geo-fence
Different reporting interval basing on Acc on/off, Daily report per 24 hours to your mobile phone
8-80V wide voltage input, backup battery available
LBS is available when GPS is invalid
SMS & Web tracking available
Map Link Available on SMS Query
Weather-Proof IP65 design

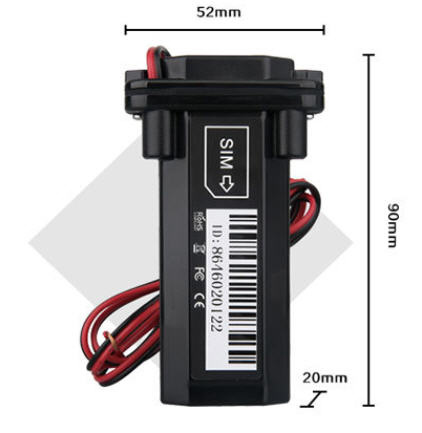

Mini design with size: 88x51x19mm(LxWxH)
Alerts
Towing alarm,
Over-speed alarm,
External power cut alert,
Geo-fence alert Specifications:
| Storage Temperature | -40 to 90 °C |
| Operating Environment | Temperature:-20 to 60 °C, Humidity:<95% |
| GPS Module | U-BLOX UBX-G7020, 56 channelsTemperature:-20 to 60 °C, Humidity:<95% |
| GPS/GSM Antenna | Built-inTemperature:-20 to 60 °C, Humidity:<95% |
| GPRS | MTK MT6260
Quad band:850/900/1800/1900 MHz,
GPRS Class 12 |
| Sensitivity | Tracking: -159 dBm
Cold starts: -144 dBm
Hot starts: -156 dBm
Cold start: <38s
Warm Start: <4s
Hot Start: 1s |
| A-GPS/LBS | AssistNow Online and AssistNow Offline services,OMA SUPL compliant GPRS |
| Power Supply | 8-80VDC, Backup Rechargeable 140mAh Li-Polymer Battery |
| Motion Sensor | Built-in |
| Case | ABS plastic, Fire-proof |
| Measurement | 88x51x19mm (LxWxH) |
| Weight | 100g |
Accessories:
Main harness
Cut-relay (optional)
Application
Corporate Fleet Management.
lLogistics & Courier.
lGovernment Municipal Transport.
lPolice & Defense Market.
lCar Security & Recovery.
lTaxi Management.

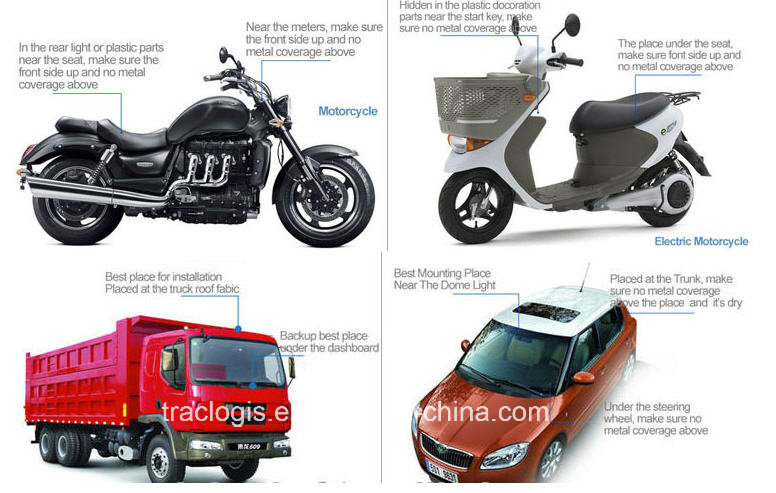

Installation Guide

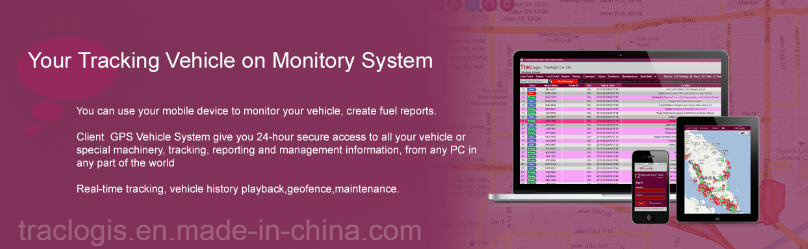

Traclogis Software System/Platform
Smart Real-time tracking interface
Humunized Geo-fence setting
Friendly maintenance module
Comprehensive reports
Cusomtized language accepted
Established in 2009, Traclogis is dedicated to provide Fuel control system and Fuel consumption monitoring solution and GPS-GSM/GPRS vehicle monitoring and fleet management solutions that has a transformative effect on the way business optimize their fleet and mobile assets.
With the development of modernization in industry and agriculture, and the wide use of industry monitoring and automatic management, the wireless control system is expanding rapidly, especially in irrigation works and electronic power, fuel consumption, with the strong demands from the market, Traclogis started the remote fuel monitoring solution study in 2009, based on the experience of fleet management solutions, we have released the complete solution of remote fuel monitoring solution successfully, which has helped our customers saving a lot of cost on the management of fleet and industrial equipment operation.
Traclogis is dedicated to enhancing the value of its customers' business through intelligent integration of location technology, information and services, according to the requests from the market, we can fulfill the needs of all sizes of companies,
No matter you are just going to enter into the fleet management industry or you have done successfully in this field, Traclogis can always be your partner.
Traclogis' strategy is to help our customers to lower threshold of entering into fleet management field, as well as saving cost for the fleet managers, Traclogis is ideally to provide full range of solutions to satisfied our clients, which include also OEM project according to customer's requests.
