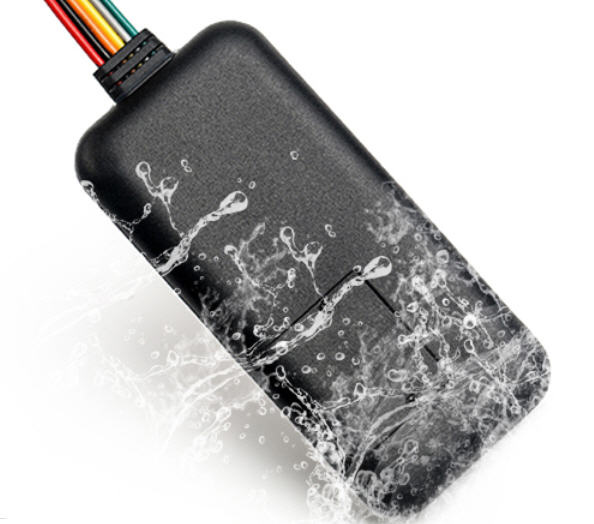

3G WCDMA GPS vehicle tracker TL200GProduct DescriptionTL200G is a 3G(WCDMA) waterproof mini GPS tracker designed for vehicles and motorcycles tracking applications.
With built-in antennas,small size and easy installation, which support variety of features including:SOS,cut-off engine,listen-in, it is good for commerical tracking project. PRODUCT FEATURES:
GSM / WCDMA dual-mode 8-frequency, universal in the world.
Input voltage range: 6-36 V DC
Double Module,GPS & LBS positioning.
GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
Supports ACC status checking and vehicle status notifying.
Built-in battery, Power disconnect alarm & Low battery alarm.
Built-in G-sensor ,Vibration, collision and falling alarm.
GEO-fence alarm, speed & shift alarm.
Use relay to remotely cut the oil
Extend I/O port to add extension function
Multiple protocol support, can be integrated to platform of customers
OTA upgrade firmware.
Water proof level IP67
Function Interface: Power cable , Relays, ACC
Extended Interface: GPIO for adding extensions (need customization)
PLATFORM/APP:
- Real-time Tracking
- Route Play Back
- Cut Oil (Need Relay)
- Vibration Alarm
- Collision / Falling Alarm
- Speed Alarm
- Geo-fence Alarm
- Power Disconnect Alarm
- Low Battery Alarm
Voltage | 12/ 24/ 36 VDC |
Work Current | <30mA@12V |
Standby Current | <10mA@12V |
GPS Accuracy | 5-15m (Depend GPS signal) |
LBS Accuracy | About 200 m
(Depending on density of base stations) |
GPS Frequency | 1575MHz |
GSM Frequency | 850/900/1800/1900MHz |
Hot/warm/cold Start | <3s,<15s,<60s |
Battery Capacity | 90mAh |
Dimensions (mm) | 87(L)X41.6(W)X 12(H) |
Work Temperature | -20ºC~70ºC |
Work Humidity | 20%~80%RH |
Weight | 50 g |
| IP Level | IP67 |

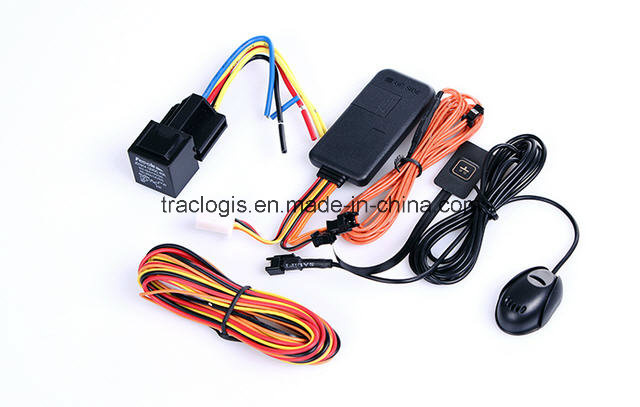

Accessories:
Main harness
SOS button
Microphone
Cut-relay
Application
Corporate Fleet Management.
lLogistics & Courier.
lGovernment Municipal Transport.
lPolice & Defense Market.
lCar Security & Recovery.
lTaxi Management.

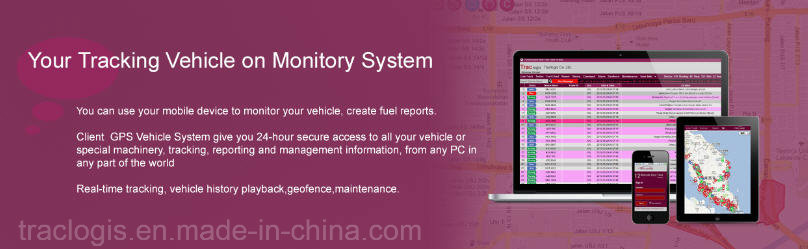

Traclogis Software System/Platform
Smart Real-time tracking interface
Humunized Geo-fence setting
Friendly maintenance module
Comprehensive reports
Cusomtized language accepted
