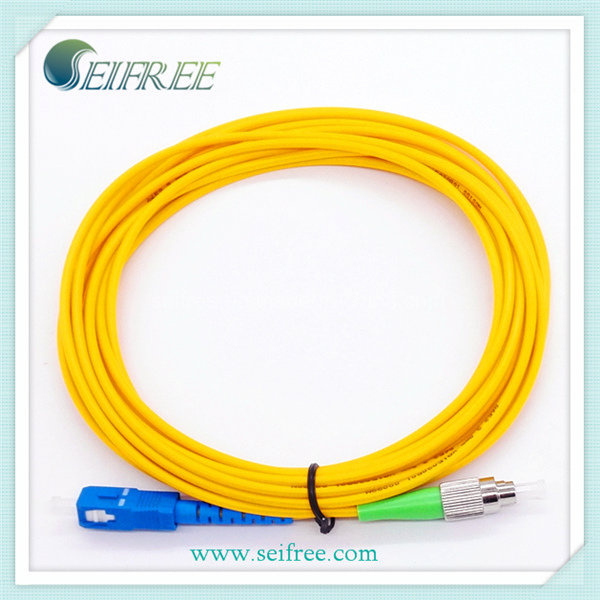

3m Single Mode Simplex Sc to FC Fiber Optic Patch Cord Cable

Name: 3m Single Mode Simplex Sc to FC Fiber Optic Patch Cord Cable
Brand: all-electronics-online.com
SKU: 828814685
Availability: InStock
Rating: 5 (71 reviews)

Price:	US $ 0.5-1.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Description
Patch cord is a fiber optic cable used to attach one device to another for signal routing.
Connector Type: FC/ SC/ LC/ ST etc. Ceramic Ferrule: PC, UPC, APC.

1. FC stands for Fixed Connection.
It is fixed by way of threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.

2. SC stands for Subscriber Connector - a general purpose push/pull style connector.
It is a square, snap-in connector latches with a simple push-pull motion and is keyed.

3. LC stands for Lucent Connector.
It is a small form-factor fiber optic connector, half the size of the SC.

4. ST stands for Straight Tip - a quick release bayonet style connector.
ST connectors are cylindrical with twist lock coupling. They are push-in and twist types.

5. PC stands for Physical Contact.
With the PC connector, the two fibers meet as they do with the flat connector, but the end faces are polished to be slightly curved or spherical. This eliminates the air gap and forces the fibers into contact.

6. UPC stands for Ultra Physical Contact.
The end faces are given an extended polishing for a better surface finish. These connectors are often used in digital, CATV, and telephony systems.

7. APC stands for Angled Physical Contact.
The end faces are still curved, but they're angled at an industry-standard eight degrees. This maintains a tight connection. These connectors are preferred for CATV and analogue systems.

Ordering Information

Cable	First End	Second End	Fiber Type	Pigtail Dia.(mm)	Fan Out Length	Jacket Type	Length
1=1Fiber	FU(A)=FC/UPC(APC)	FU(A)=FC/UPC(APC)	H=Hi 780	09=Φ0.9	05=50cm	E=PE	05=50cm
2=2Fiber	SU(A)=SC/UPC(APC)	SU(A)=SC/UPC(APC)	F=Flex 1060	2=Φ2mm	10=100cm	C=PVC	10=100cm
4=4Fiber			D=G652D	3=Φ3mm		H=LSZH
	LU(A)=LC/UPC(APC)	LU(A)=LC/UPC(APC)	A=G657A		20=200cm	A=Armored	20=200cm
R=Ribbon	X=Customization		B=G657B	X=Customization
			W=Bow-type
			OM1=62.5/125
			OM2=50/125
			OM3=50/125
			OM4=50/125

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Ferrule	/	PC		UPC		APC(Step)		APC(Conical)
Fiber Type	/	SM	MM	SM	MM	SM	MM	SM	MM
Insertion Loss	dB	<0.25	<0.20	<0.25	<0.20	<0.30	/	<0.30	/
Repeatability	Time	>1000
Interchangeability	dB	<0.10
Return Loss	dB	>45	>36	>50	>36	>60	/	>60	/

Prod Model:	SOFC-1-SU-FA-A-3-00-C-30
Product Name:	Fiber Optic Patch Cable
Fiber Type:	Sm
Connector Type:	Sc-FC
Ceramic Ferrule:	Upc, APC
Cable:	Simplex
Pigtail Diameter:	2.8mm
Length:	3m
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	FC-SC
Certification:	ISO9001
