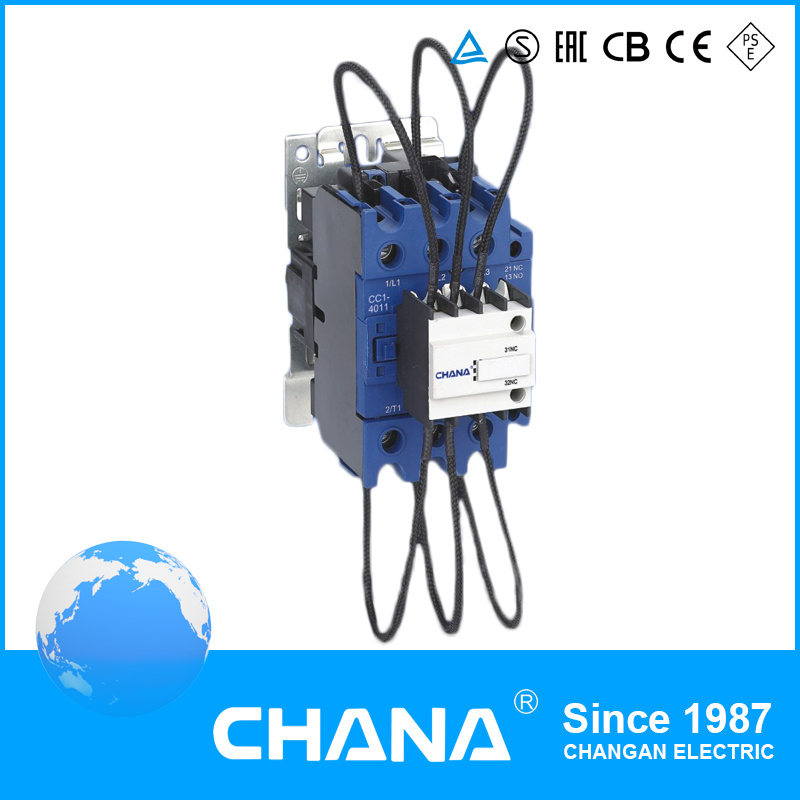

3p/4p 3phase Capacitor Switching Contactor
| Price: |
US $ 14.62-14.91/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Description For CJ19 Capacitor Switching Contactor Electric ratings: AC50/60Hz, up to 400V;
Standard: IEC/EN 60947-4-1
Ambient temperature: -5ºC~+40ºC
the average during 24 hours should not exceed +35ºC
Altitude:≤2000m;
Atmosphere conditions: At mounting site, relative humidity not exceed 50% at the max temperature of +40ºC, higher relative humidity is allowable under lower temperature. For example, RH could be 90% at +20ºC, special measures should be taken to occurrence of dews;
Pollution degree: 3
Installation category:
Installation conditions :
the inclination between installation plane and vertical plane is within ±5ºC
Impact and shake: the products should locate in the places where there are no obvious impact and shake.
Technical Data | Standard | | IEC/EN60947-4-1 |
| Model | | CJ19-25 | CJ19-32 | CJ19-43 | CJ19-63 | CJ19-80 | CJ19-95 |
| Rated Conventional Heating Current | Ith(A) | 25 | 32 | 43 | 63 | 80 | 95 |
| Rated Work Current | 415V/le(A) | 18 | 25 | 32 | 60 | 80 | 95 |
| Capacitor Controlled | 220/240V(Kvar) | 6 | 9 | 10 | 15 | 18 | 22 |
| 400/440V(Kvar) | 12 | 18 | 20 | 30 | 36 | 40 |
| Rated Insulation Voltage | Ui(V) | 690 | 690 | 690 | 690 | 690 | 690 |
| Rated Operation Voltage | Ue(V) | 400 | 400 | 400 | 400 | 400 | 400 |
| Electrical life(×10³) | Times | 120 | 120 | 120 | 100 | 100 | 100 |
| Mechanical life(×10³) | Times | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Restrained Surge Capacity | x le | 15 |
| Auxiliary Contact | Ith=10A | AC-15 360VA;DC-13 33W |
| Control Capacity |
| COIL PARAMETERS |
| Coil Power(VA) | Start-up | 76 | 110 | 110 | 230 | 230 | 230 |
| Holding | 10 | 11 | 11 | 32 | 32 | 32 |
| Rated Control Power | Us(V) | 24,36,48,110,220,380 |
| Pull time | Ms | 12~22 | 15~24 | 15~24 | 20~26 | 20~35 | 20~35 |
| Release time | Ms | 4~12 | 5~19 | 5~19 | 8~12 | 6~20 | 6~20 |
| Operation Range | Pick-up | (85%-110%)Us |
| Drop-out | (20%-75%)Us |
Overall and Mounting Dimensions (mm) | Model | Amax | Bmax | Cmax | Dmax | E | F | Note |
| CJ19-25 | 80 | 47 | 124 | 76 | 34/35 | 50/60 | be fixed 35mm din rail |
| CJ19-32 | 90 | 58 | 132 | 86 | 40 | 48 |
| CJ19-43 | 90 | 58 | 136 | 86 | 40 | 48 |
| CJ19-63 | 132 | 79 | 150 | - | - | - | Not only fixed by screws but also could be fixed with 35mm and 75 din rail |
| CJ19-80-95 | 135 | 87 | 158 | - | - | - |
Wiring and installation1The connection terminals are protected through insulation cover, which is reliable and secure for installation and operation;
2 For CJ19-25~43, screws are available for installation, as well as the DIN rail;
for CJ19-63~95, 35mm or 75mm standard rail are available for installation.How to Order?1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM is welcomed. Free OEM for more than usd3000 orders.Shipping:1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.Payment:1. We usually use T/T
2.30% deposit and 70% before shipping
3. L/C also acceptableWarranty:1. We provide 1.5 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
Our ServicesA. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B. After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.
C. Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.
FAQQ 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.
Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.
Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
| Prod Model: |
CJ19-43 |
| Utilization Category: |
AC-3 |
| Electric Ratings: |
AC50/60Hz |
| Rated Convertional Heating Current: |
25A, 32A, 43A, 63A, 80A, 95A |
| Control Coil Voltage: |
110V/220V/440V |
| Standarded: |
IEC60947-4 |
| Theory: |
Thermal Relay |
| Load: |
Medium Power Relay |
| Protective Characteristics: |
Open Relay |
| Action Principle: |
Electronic Type |
| Export Market: |
Global |
