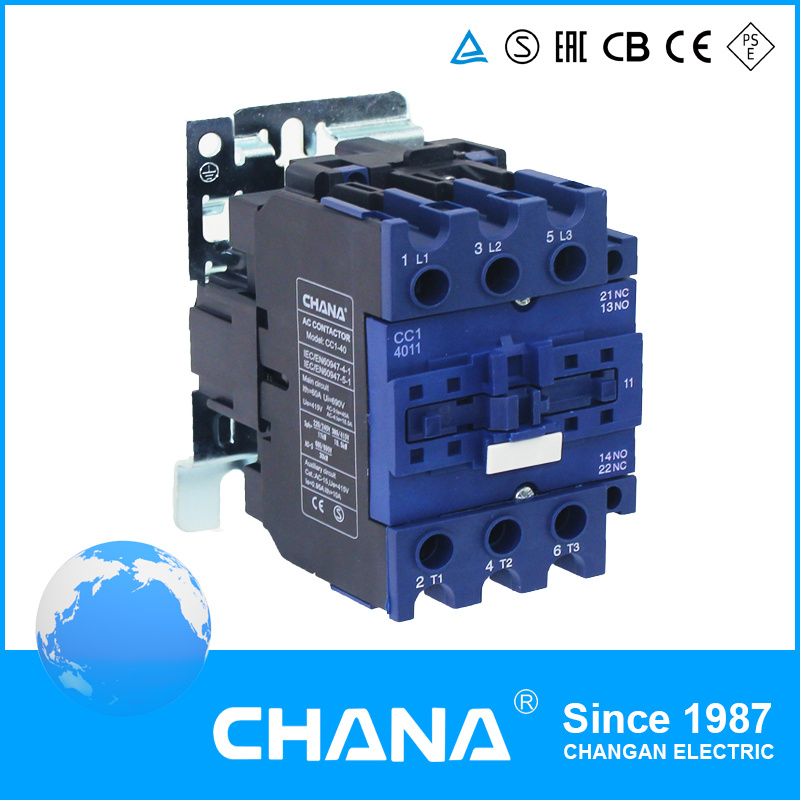

Cc1 Series Industrial AC/DC Contactor with Semko, CB, Ce, RoHS Approval

Name: Cc1 Series Industrial AC/DC Contactor with Semko, CB, Ce, RoHS Approval
Brand: all-electronics-online.com
SKU: 743156885
Availability: InStock
Rating: 4.7 (30 reviews)

Price:	US $ 2.8-20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

1. General

1) Application: remote making & breaking circuits; protect circuit
from over-load when assembling with thermal over-load relay;
frequent start-up and control of AC contactor;
2) Electric ratings: AC50/60Hz, 690V, up to 95A;
3) Utilization category: AC-3, AC-4;
4) Altitude: ≤2000m;
5) Ambient temperature: -5ºC~+40ºC;
6) Mounting category: III;
7) Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed ±5°;
8) Standard: IEC/EN 60947-4-1. IEC/EN 60947-5-1.

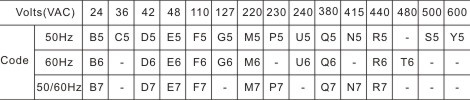

9) Control Coil Voltage(AC Coil Operation)

Control Coil Voltage(DC Coil Operation)

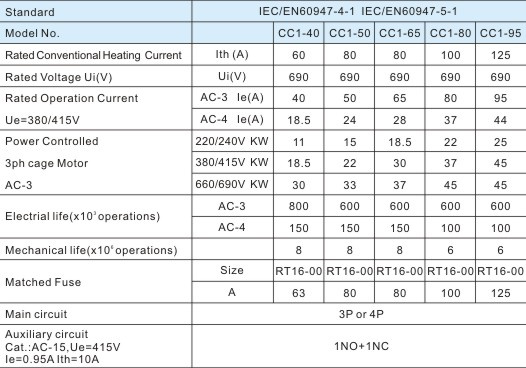

2. Technical Date

3. Company profiles

4. Featured products

Prod Model:	CC1-D40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC Standard:	IEC60947-4-1
Theory:	Electromagnetic Relay
Action Principle:	Electromagnetic Type
Protective Characteristics:	Contactor
Load:	Motor
Size:	Nomal
Usage:	Frequent Start-up and Control of AC Contactor

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
