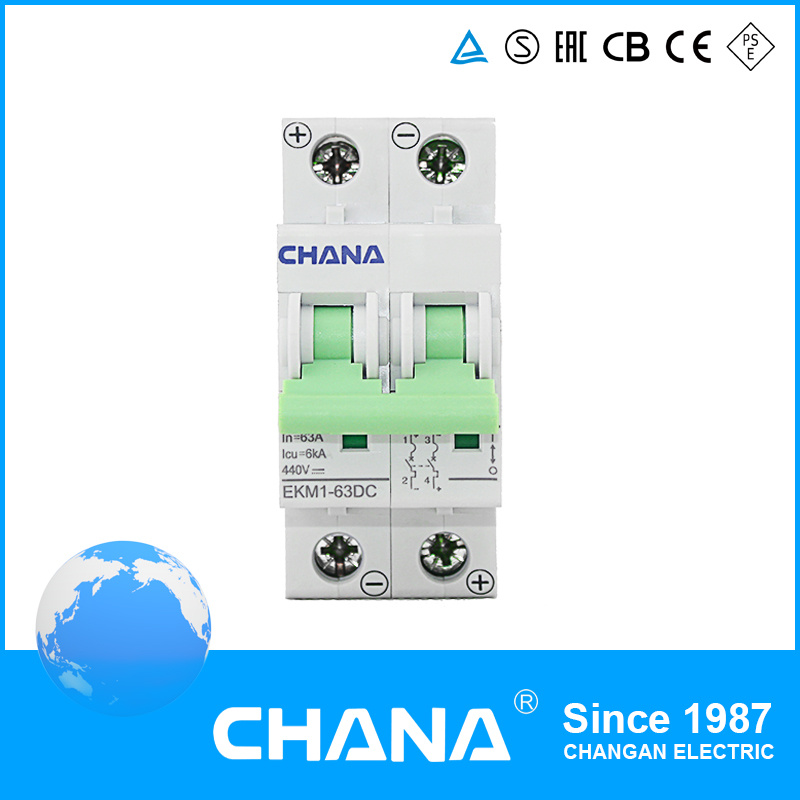

DC MCB 1p 63A Mini Circuit Breaker

Name: DC MCB 1p 63A Mini Circuit Breaker
Brand: all-electronics-online.com
SKU: 791831815
Availability: InStock
Rating: 4.3 (62 reviews)

Price:	US $ 22-27/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

DC MCB 1p 63A Mini Circuit Breaker
Free samples can be provided!!!

Standard	IEC60947-2
Electrical Feature
Rated current In	A	1,2,3,4,6,10,16,20,25,32,40,50,63
Poles	P	1,2,3,4
Rated voltage Ue	V	250V(1P),500(2P),750V(3P),1000V(4P)
Insulation voltage Ui	V	500
Rated frequency	Hz	50/60
Rated breaking capacity	A	6000/10000
Energy limiting class		3
Rated impulse withstand voltage(1.2/50) Uimp	V	4000
Dielectric test voltage at ind. Freq. For 1 min	V	2000
Pollution degree		2
Thermo-magnetic release characteristic		C(7~10)In
Mechanical Feature
Electrical life		>1500
Mechanical life		20000
Contact position indicator		Yes
Protection degree		IP20
Reference temperature for setting of thermal element	º C	30
Ambient temperature (with daily average≤ 35º C)	º C	-5...+40
Storage temperation	º C	-25...+70
Installation
Terminal connection type	Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable	25mm2 18-3AWG
Terminal size top/bottom for busbar	25mm2 18-3AWG
Tightening torque	2.0 N*m 22 In-Ibs
Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device
Connection	From top and bottom
Conbination with Accessory
Combination with accessories	Auxiliary contact, Shunt release, Under voltage release, Alarm contact

Ekm1-63 6ka/10ka Type Circuit Breaker with Ce and CB Certificates

How to Order?
1. Let us have the details of your requirements.
2. Price-list will be sent for confirmation.
3. After prices confirmed,PI will be sent for payment.
4. After get your Deposit,production will be arranged within one day.
5. When goods ready,all the documents for custom clearance will be scanned to you for the balance payment.
6. OEM/ODM is acceptable

Shipping:
1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable

Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

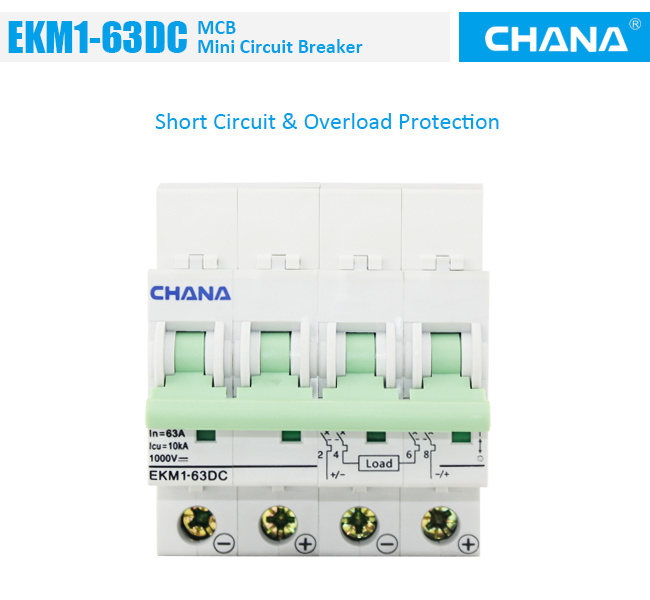

Prod Model:	EKM1-63DC
Export Market:	Global
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	SGS TUV RoHS

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
