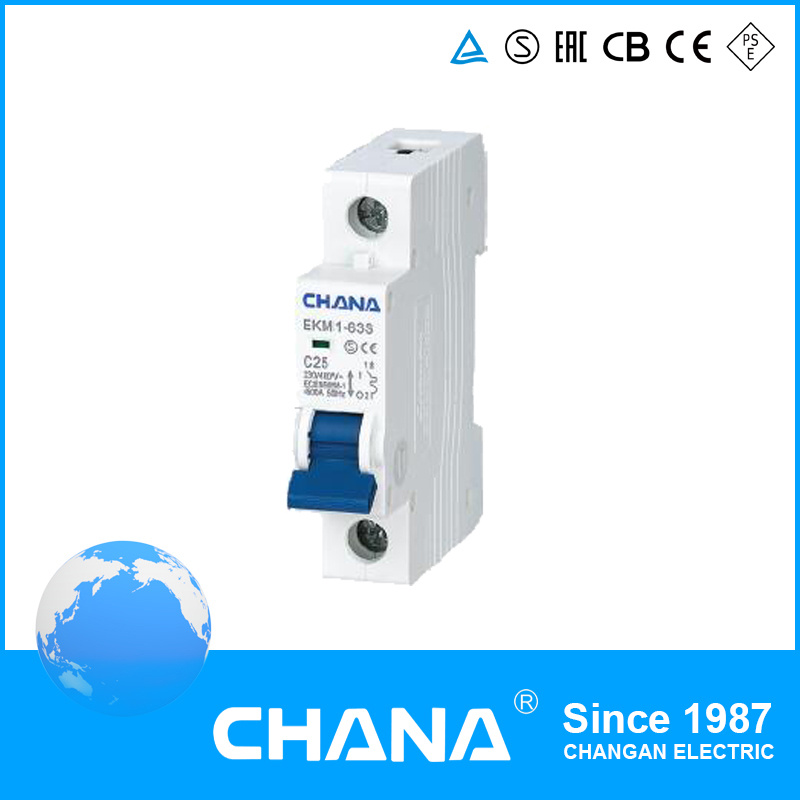

6ka New Type High Breaking Capacity Mini Circuit Breaker (MCB)

Name: 6ka New Type High Breaking Capacity Mini Circuit Breaker (MCB)
Brand: all-electronics-online.com
SKU: 744402625
Availability: InStock
Rating: 4.4 (98 reviews)

Price:	US $ 0.54-0.63/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	180/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Free Samples Can Be Provided

Model	MINI CIRCUIT BREAKER
Code	EKM1-63S
Standard		IEC60898-1
Electrical features	Rated current in	A	1 2 3 4 6 10 16 20 25 32 40 50 63
	Poles		1P,1P+N, 2P, 3P,3P+N, 4P
	Rated voltage Ue	V	240/415
	Insulation coltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	6000
	Rated impulse withstand voltage (1.2/50)Uipm	V	4000
	Dielectric test voltage at and ind.Freq.for 1min	KV	2
	Pollution degree		2
	Themo-magnetic release characteristic		B(3-5In) , C(5-10In) , D(10-20In)
Mechanical features	Electrical life		4000
	Machanical life		10000
	Protection degree		IP 20
	Reference temperature of setting of thermal element	°C	30
	Ambient temperature(with daily average≤35°C)	°C	-5~+40
	Storage temperature	°C	-25...+70
Installation	Terminal connection type		Cable/Pin-type busbar
	Terminal size top/bottom for cable	mm²	25
	Terminal size top/bottom for busbar	mm²	25
	Tightening torque	N*m	2.0
	Mounting		35mm DIN rail
	Connection		From top and bottom

Shipping:
1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable

Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

6ka/10ka Mini Circuit Breaker with TUV Approval (EKM1-63)

6ka/10ka Mini Circuit Breaker with TUV Approval (EKM1-63)

Prod Model:	EKM1-63S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Poles:	1p, 1p+N, 2p, 3p, 3p+N, 4p
Electrical Life:	4000
Mechanical Life:	10000
Protection Degree:	IP20
Ampers:	1A-63A
Rated Voltage:	240/415V
Breaking-Capacity:	6ka
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Insert
Structure:	MCB
Poles Number:	1
Certification:	CCC

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
