| Prod Model: |
EKM1-63 1P 63A 6KA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Breaking Capacity: |
6ka / 10ka |
| Pole: |

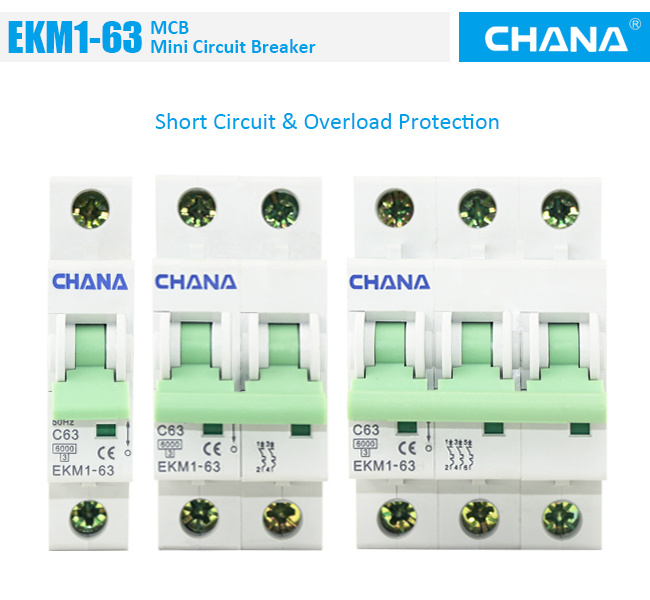

1p, 1p+N,2p, 3p, 3p+N, 4p |
| IEC Standard: |
IEC60898; En60898 |
| Brand Type: |
Chana or OEM |
| Export Market: |
Global |
| Quanlity: |
AAA |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
TUV |
| Function: |
Overload and Short-Circuit Protection |
Product Description

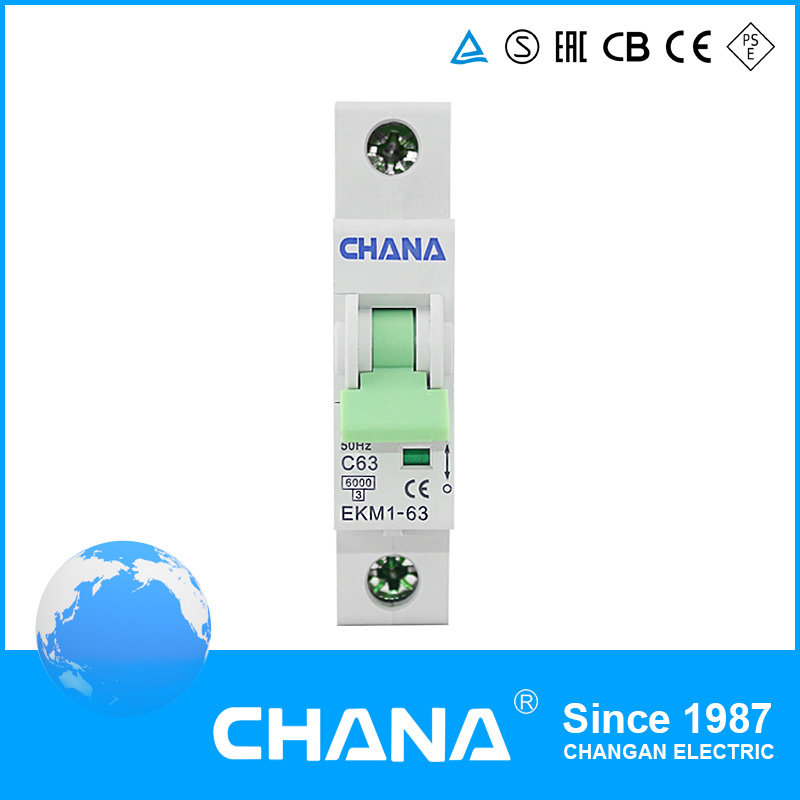

Description For EKM1-63 MCB
Free samples can be provided!!!
| Standard | IEC60898-1 |
| Electrical Feature |
| Rated current In | A | 1,2,3,4,6,10,16,20,25,32,40,50,63 |
| Poles | P | 1P,1P+N,2P,3P,3P+N,4P |
| Rated voltage Ue | V | 240/415 |
| Insulation voltage Ui | V | 500 |
| Rated frequency | Hz | 50/60 |
| Rated breaking capacity | A | 6000/10000 |
| Energy limiting class | | 3 |
| Rated impulse withstand voltage(1.2/50) Uimp | V | 4000 |
| Dielectric test voltage at ind. Freq. For 1 min | V | 2000 |
| Pollution degree | | 2 |
| Thermo-magnetic release characteristic | | B,C,D |
| Mechanical Feature |
| Electrical life | | 8000 |
| Mechanical life | | 20000 |
| Contact position indicator | | Yes |
| Protection degree | | IP20 |
| Reference temperature for setting of thermal element | º C | 30 |
| Ambient temperature (with daily average≤ 35º C) | º C | -5...+40 |
| Storage temperation | º C | -25...+70 |
| Installation |
| Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 25mm2 18-3AWG |
| Terminal size top/bottom for busbar | 25mm2 18-3AWG |
| Tightening torque | 2.0 N*m 22 In-Ibs |
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device |
| Connection | From top and bottom |
| Conbination with Accessory |
| Combination with accessories | Auxiliary contact, Shunt release, Under voltage release, Alarm contact |
How to Order?
1. Let us have the details of your requirements.
2. Price-list will be sent for confirmation.
3. After prices confirmed,PI will be sent for payment.
4. After get your Deposit,production will be arranged within one day.
5. When goods ready,all the documents for custom clearance will be scanned to you for the balance payment.
6. OEM/ODM is acceptable
Shipping:
1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable
Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
FAQ:
Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.
Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.
Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.
Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
