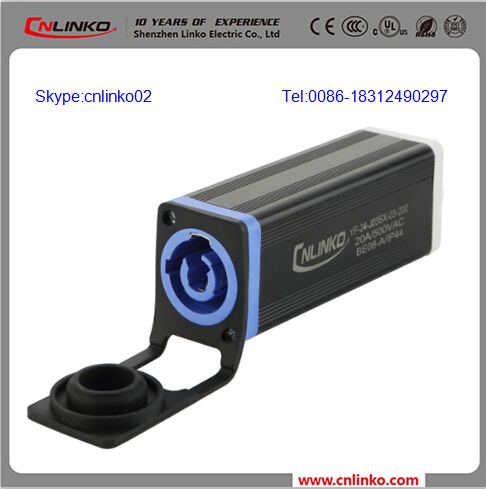

Locking 3 pole power connector/powerCon connector
Product Description:
YF series connectors,because of its unique locking bolt,which is easy to operate and has a unique blue-gray separable power input and output,so effectively distinguish device input and output ports and a power coupling,both portable terminals transform at same time and make it more flexibility.Widely used in Audio,video and power equipment.
1.Locking 3-pin connector of the device,with contacts for the middle,straight,pre-adaptation safety ground.
2.High current capacity 20A/250VAC.
3.The use of different colors(blue line)input and output(output gray)control,to avoid the possibility of inverworking.
4.Fast and easy locking system
5.Use of U.S. imports carried silver-plated beryllium copper double double entry,quality asurance,increasing the stability of the current and effective temperature control.
6. IP44 and IP65-way choice.
7.20A rms rated current
8.Unique copper core needle anti prolapse design.
|
| Specifications: | |
| Connecting mode: | latching lock |
| Protection level: | IP44/IP65 |
| Cable specification: | 2.5m2 ~4mm2 /14~12AWG |
| Diameter range: | Φ8mm ~Φ12mm |
| Contact diameter×Qty: | Φ2.0x3 |
| Current rating(A): | 20A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 2500V |
| Contact resistance: | <3mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder & lock screw |
| Prevent the combustion level: | UL94-V0 |
| Temperature rise: | 20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| | |
| Main characteristics: | |
| - Sealed against dust and fluid |
| - Vibration resistance,impact resistance,stretching resistance |
| - With one hand, can quickly insert or pull out |
| | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
