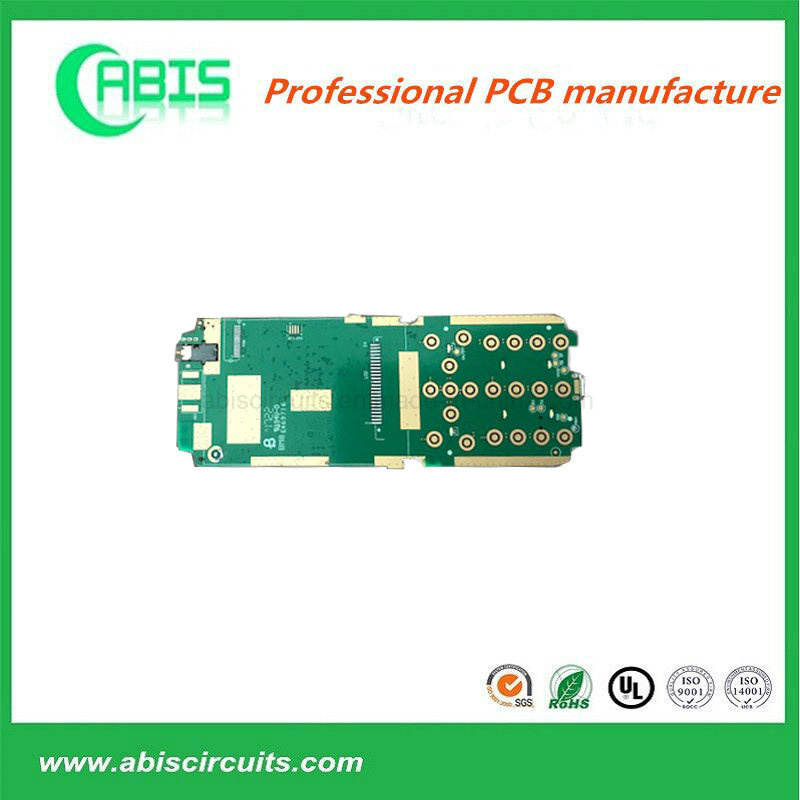

4 Layer PCB For Mobile Phone,0.08mm Min Line Space
1. Single-sided PCB, double side & multi-layer PCB with competitive price, good quality and excellent service.2. CEM-1, FR-1, FR-4, FR-4 High TG, Aluminum base material,Rogers,TEFLON.3. HASL, HASL lead free, Immersion Gold/ Silver/Tin, OSP,gold plating/finger,Carbon ink.4. Printed Circuit Boards adhere to IPC Class 2 international PCB standard.5. Quantities range from prototype to medium batch production.6.100% E-Test.
| 1 | Layer | 1-20 layers |
| 2 | Material | FR-4 (CEM-1,Aluminum base,FR-1,CEM-3,FR4 High TG,TEFLON for selection) |
| 3 | Board thickness | 0.2mm-6mm |
| 4 | Max.finished board size | 1200*600mm |
| 5 | Min.drilled hole size | 0.1mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spacing | 0.075mm(3mil) |
| 8 | Surface finish/treatment | HASL/HASL lead free,Immersion Gold/Tin/Silver,OSP,gold plating/finger,Carbon ink,Peelable mask |
| 9 | Copper thickness | 18um-280um(0.5OZ-8OZ) |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Outline Tolerance | ±0.13mm |
| 12 | Impedance control Tolerance | ±10% |
| 13 | Hole tolerance | PTH:±0.075mm,NPTH:±0.05mm |
| 14 | Certificate | UL,ISO9001,ISO14001,SGS |
|
| 15 | Profiling punching | Routing,V-CUT,Beveling |
| 16 | Production capability | 72,000 s.q.m/month |

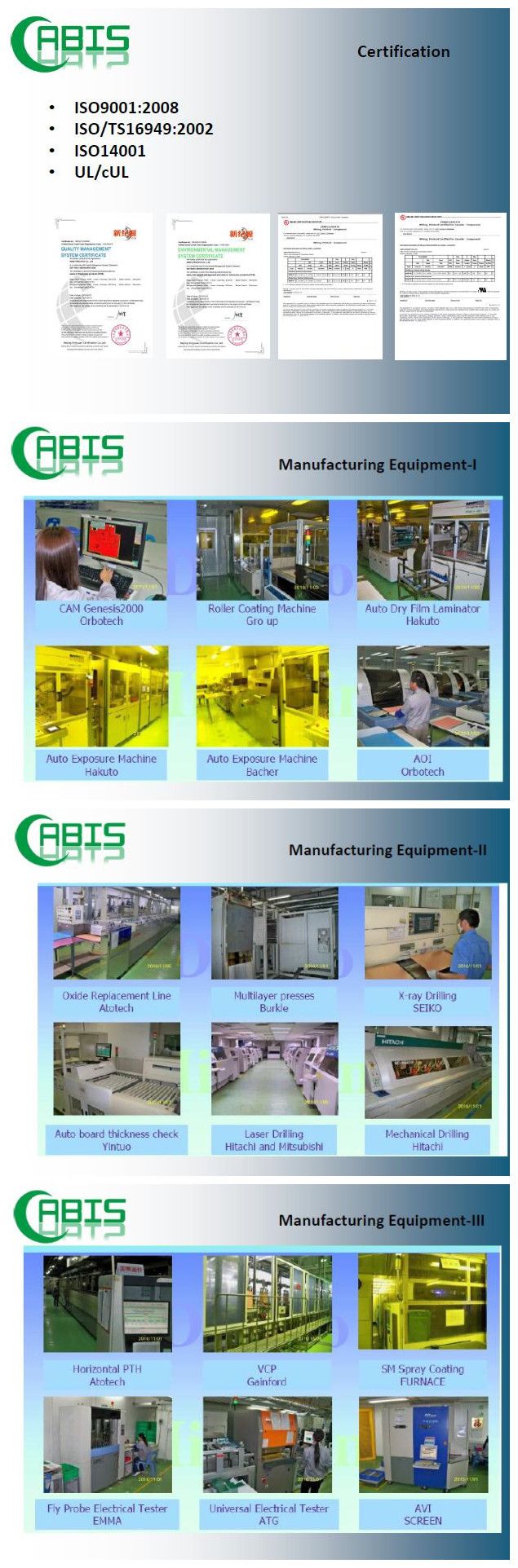

Certifications and Factory Pictures

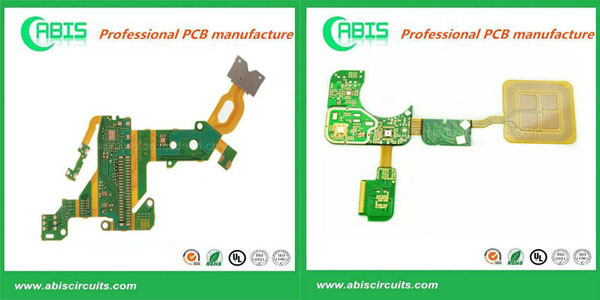

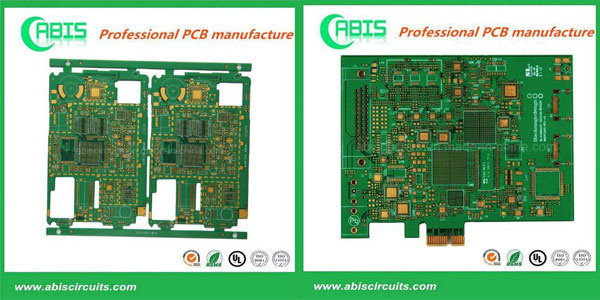

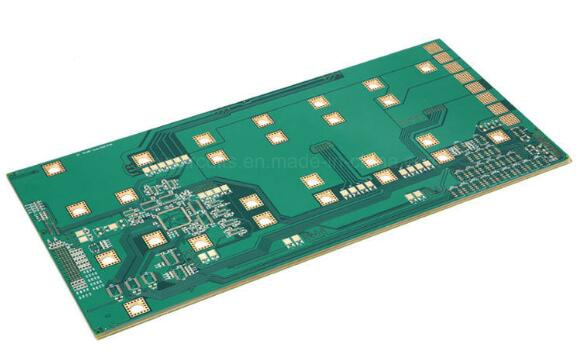

Product show:

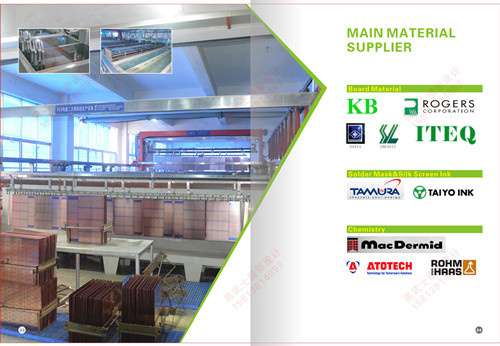

Main Material Supplier:

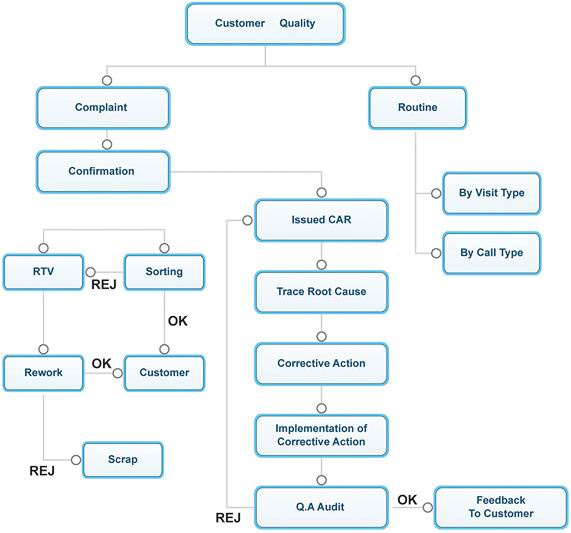

Quality Control Flow:
Pre-Sale and After-Sale Service: 1 Hour quotation
2 hours complaint feedback
7*24 hour technical support
7*24 order service
7*24 hour delivery
7*24 production run FAQ
Q1:Are you a factory or trade company?
A: Abis is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBA Board for 11 years.
Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.
Q3:What is your testing policy and how you control the quality?
A: For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there's many steps to PCB production, we usually do inspection after every step.
Q4: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.
Q5: What is your certificate?
A: ISO9001:2008, ISO14001: 2004, UL, SGS report.
Q6: What files should we offer?
A: If only need PCB, please provide Gerber File and manufacturing specifications; If need PCBA,Please provide Gerber File, Manufacturing specification, BOM list and Pick & Place/XY file.
Q7: Can I get a sample?
A: Yes, It's reasonable to get a sample to test our quality at first.
Q8: Does ABIS CIRCUITS bevel gold fingers?
A: Yes. A standard 45-degree bevel, also bevel at 15 or 30 degrees upon request. For multi-layer board, please ensure there is adequate back set for the bevels.
Q9: Why choose us?
A: With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost saving for customers.
. We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.
. We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback
Abis Circuits Co. Ltd, established in 2006, Located in shenzhen, our company has about 1100 workers and two PCB workshops with about 50000 square meters. Our products are mostly used in the field of testing, computer, medical equipment and military, and have good performance in all kind of functional test. Our perfect management, advanced equipments, and professional staffs are the keys for us to fight to win more market shares with other competitors. Customer's satisfaction and support are what we have been strived for.
Now we have passed ISO9001, SGS and UL certificates. With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layer, Blind and buried Board, high-precision(Rogers), High TG, Alu-base and flexible boards to our customer with fast turn and high quality level.
With more than 10 years experience in international business, we have abtained over 500 customers in the world, We sincerely appreciate trust and support from our new and old customers home and abroad all the time. At this time when global economy is development rapidly, we do hope to cooperate with all the friends to make a more brilliant future.
