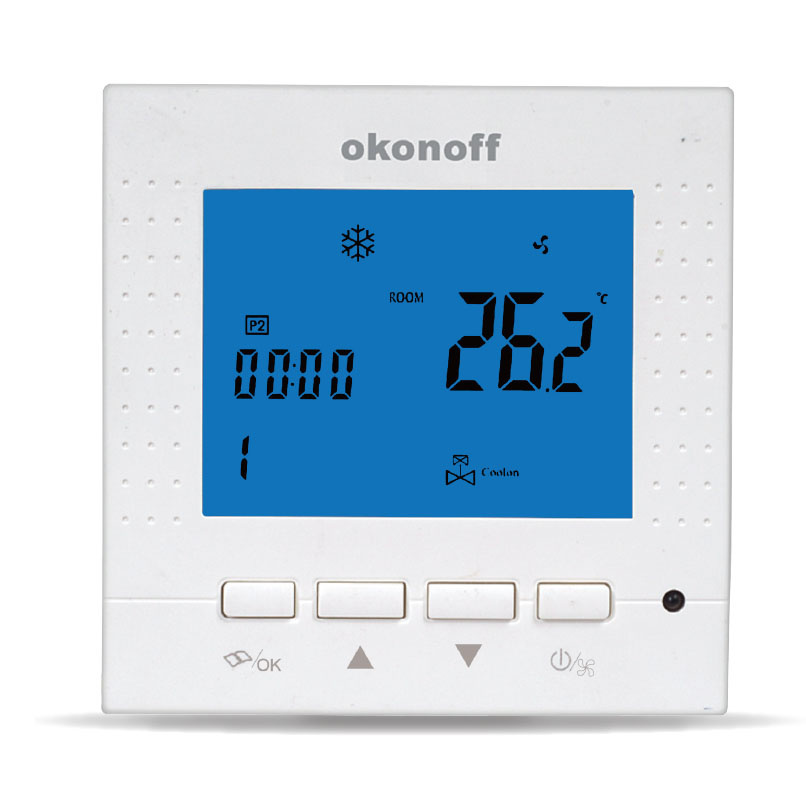

4-Pipe Fan Coil Timing Sleeping Thermostat with Keylock (S400BFT)
| Price: |
US $ 16-18.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Western Union |
S400 series of thermostats are applied to controlling the terminal fan coil of the two/four pipe water system air-conditioning. Can intelligent adjust the running state of electrical valve or three speed fan coil according to the difference between indoor temperature and setting temperature, create a comfortable and energy saving indoor environment.
Feature:
1. Large screen LCD English character display, blue back light.
2. Room temperature, clock, week show at the same time
3. 5-1-1 day programmable on week (such as 5-working day, Saturday, Sunday) 4 time periods a day for the setting of the programming data; the programming data of each working state (heating/cooling/constant) are independent.
4. Temperature adjustment function, adjustable range is ±5ºC
5. With memory parameter function, it can recover the working state after the power
resumption
6. 24 hours timing power on/off function, the set step is one half hour(30 minute)
7. With 8 hours sleeping function
8. Optional function: insert card function, it is in the running comfortable mode when the card is inserted, it is in the power saving state when do not insert the card
9. Four kinds of fan speed modes: High/Middle/Low/Auto, can programmable setting the fan-controlled (control the fan on/off according to water valve state), against the cold wind, anti-dewing10. Can control the electrical vale and magnetic valve of Ac 220V, three speed fan coil and Ac 3-wire & 2-control (SPDT) or 3-wire & 1-control (SPST)Model spec:| Model | Apply to equipment | Back light | 5-1-1day programming | Timing | Sleeping | Key lock | Mainframe linkage | Insert card |
| S400 | Two pipe | √ | √ |
|
| √ |
|
|
| S400BF | Four pipe | √ | √ |
|
| √ |
|
|
| S400H2 | Two pipe | √ |
| √ | √ | √ |
| √ |
| S400BFH | Four pipe | √ |
| √ | √ | √ |
| √ |
| S400T | Two pipe | √ |
| √ | √ | √ |
|
|
| S400BFT | Four pipe | √ |
| √ | √ | √ |
|
|
| S400H1 | Two pipe | √ |
| √ | √ | √ | √ |
|

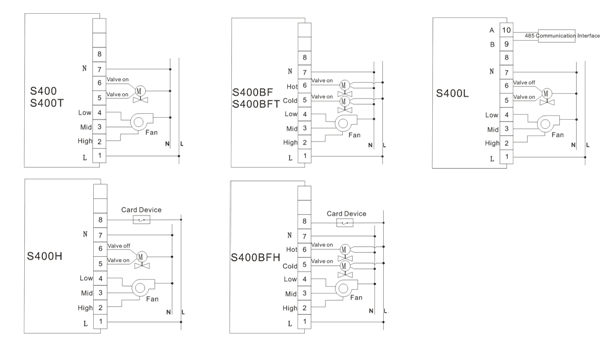

Wiring Diagram:

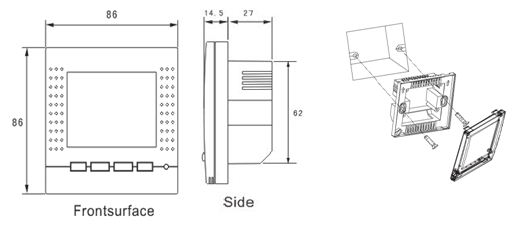

Installation:
| Prod Model: |
S400BFT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
220VAC±10% |
| Working Environment: |
-5~+50oc |
| Working Environment Relative Humidity: |
Rh<85% |
| Storing Environment: |
-10~+60oc |
| Storing Environment Relative Humidity: |
Rh<92% |
| Temperature Control Range: |
5~35oc |
| Temperature Control Precision: |
0/-2oc |
| Current Load: |
<=3A(Resistive Load) |
| Wire Diameter: |
>=0.75 Mm2(18AWG) |
| Grade Of Protection: |
IP40 |
| Usage: |
Air Conditioner |
| Certification: |
ISO |
| Control Type: |
Digital |
| Type: |
Temperature Controller |
| Display Type: |
LCD |
| Material: |
PC+ABS Engineer Plastic |
| Brand: |
Okonoff |
