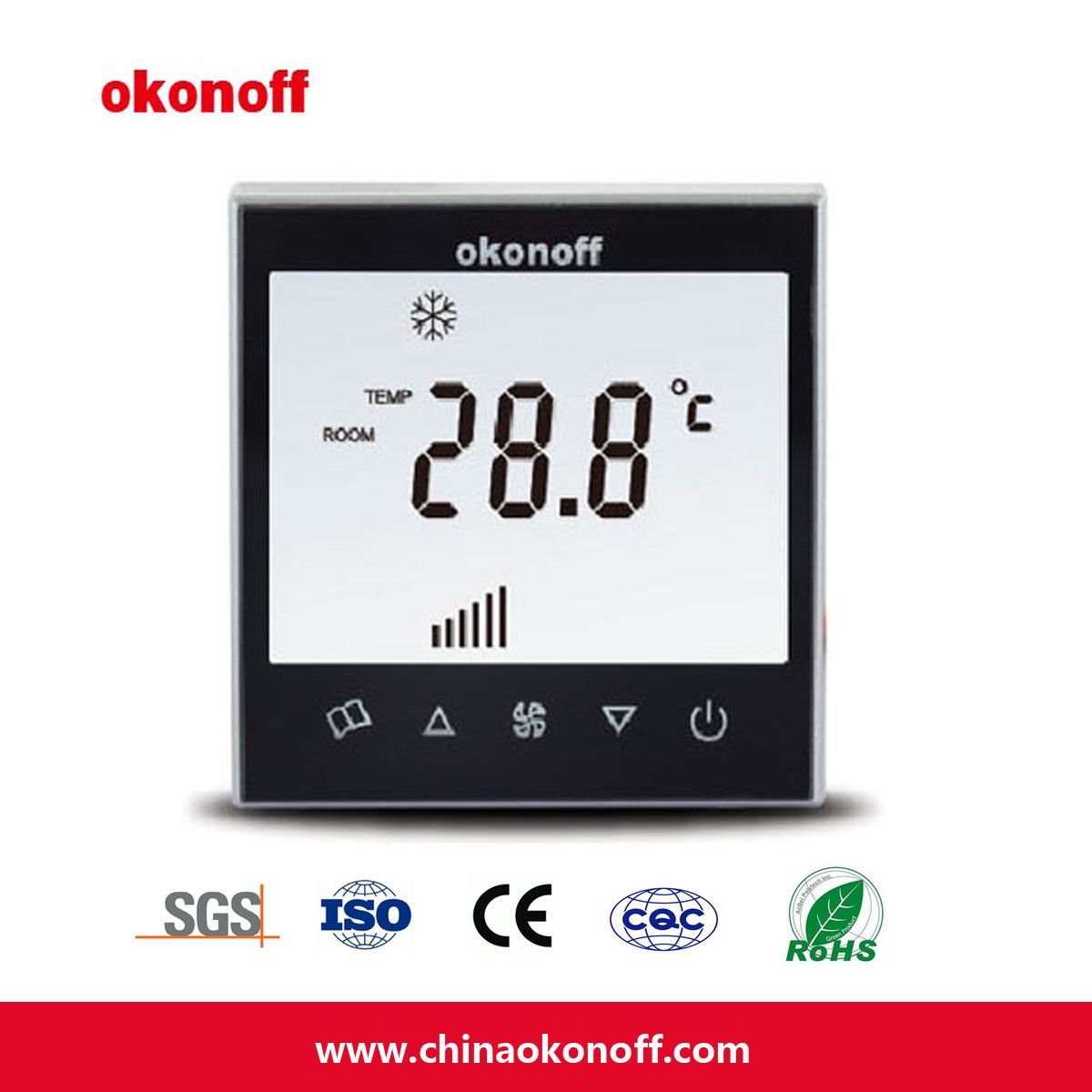

4-Pipe Touch Screen Digital Fan Coil Room Thermostat (Q8-F)
| Price: |
US $ 20.11-22.56/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
350/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Q8-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
220VAC 50Hz |
| Temperature Control Range: |
5º C ~ 35º C |
| Curent Load: |
3A |
| Sensing Element: |
Ntc |
| Temperature Control Precision: |
0/-1ºC |
| Cable Diameter: |
0.75mm2 |
| Grade Of Protection: |
IP40 |
| Installation: |
86 Type Installing Box |
Product Description
Q8 series of thermostats are applied to controlling the electrical load or electrical valves in the electric heating or water heating system.
Feature:
1.With capacitive touch technology.
2.Ultra thin design, the import tempering glass panel, large full screen LCD display.
3.Integrated design.
4.PIR function, the back light will be on when the people approached(please refer to the model spec)
5.24 hours timer switch function, adjustable step is 1 hour.
6.Week programming, four periods for setting the time and temperature.
Wiring Diagram:
Installation:
Model Spec.:
Model
| Display Mode | Time Period Programmable | Back Light | External sensor | 485 Communication | Mainframe Linkage | Current load |
| Q8-S-PE | HTN | √ | √ | √ | √ | | ≤16A(resistive load) |
| Q8.v-S-PE | VATN | √ | √ | √ | √ | | ≤16A(resistive load) |
| Q8-S-PW | HTN | √ | √ | | √ | | ≤3A(resistive load) |
| Q8.v-S-PW | VATN | √ | √ | | √ | | ≤3A(resistive load) |
| Q8-S-PWH | HTN | √ | √ | | √ | √ | ≤3A(resistive load) |
| Q8.v-S-PWH | VATN | √ | √ | | √ | √ | ≤3A(resistive load) |
