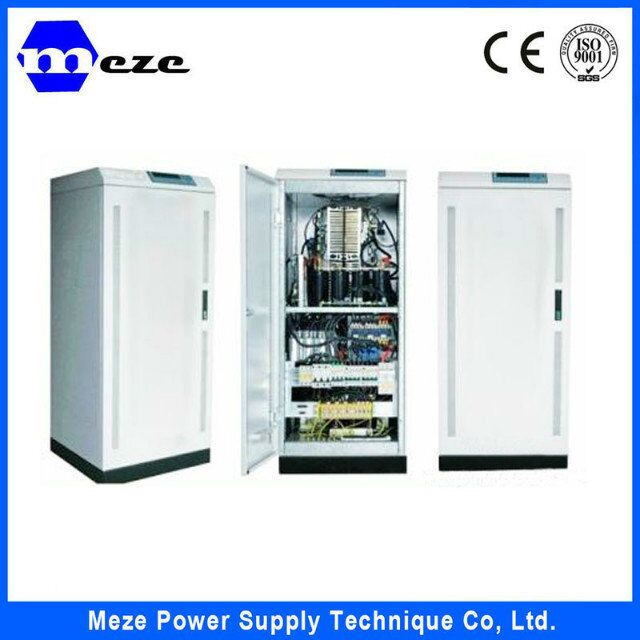

40kVA UPS Power 3 phase DC Online UPS with Battery
Model | MZT2010 | MZT2015 | MZT2020 | MZT2025 | MZT2030 | MZT2040 | MZT2050 | MZT2060 | MZT2080 |
capacity | 10KVA | 15KVA | 20KVA | 25KVA | 30KVA | 40KVA | 50KVA | 60KVA | 80KVA |
imput | Voltage | 304-456VAC |
frequency | 50(60)HZ±5% |
Frequency tracking rate | 1HZ/S |
power factor | >0.97 |
current | 16A | 24A | 32A | 40A | 56A | 64A | 80A | 105A | 128A |
output | Voltage | 220VAC±1%or230VAC±1% |
frequency | 50HZ/60HZ±5% |
frequency factor | 0.8 |
waveform distortion | Linear load≤0%,nonlinear load |
overload capacity | overload110-150%To bypass the power supply lasts for 5 minutes |
peak factor | 3:1(max) |
transfer time | Oms |
battery | Voltage | 360V | 384V |
charging time | 8-10hours |
overall efficiency | >92% | 93% |
protective function | Electronic short circuit protection;Current limiting protection for 1-3 times the rated current |
panel | LED | Battery low boltage,inverter,bypass,abnormal condition,overload indicator |
LCD | BIOS interface,frequency,battery voltage,load percentage,temperature in driers |
Communication interface | RS232&SNMP |
environment | temperature | 0~40ºC |
humidity | 0-95% |
Storage temperature | 025ºC-55ºC |
Service altitude | <1500 |
noise | | | 55~68 |
physical characteristics | Weight(kg) | 155 | 240 | 297 | 326 | 336 | 352 | 355 | 415 | 468 |
Dimenson(mm) | 720*450*1130 | 855*450*1230 | 1000*660*1460 |
executive standard | UD/T 1095-2000 |
Three-input single-output Product features:
Load protection ability
Machine within the standard output isolation transformer, strong anti-interference ability,
for the user to provide more comprehensive and perfect protection equipment.Very small zero
voltage difference, meet the demand of precision instruments and equipment of the power supply,
to protect the safe operation of the equipment.Load good compatibility, can adapt to a variety of
different load and meet the needs of various applications.
Strong adaptability to the environment
Wide range of input voltage of 304v ~ 456v, avoid frequent switch to the battery power supply,
suitable for electric power conditions,UPS input frequency range is very wide,To ensure access
to a variety of fuel generator can be stable work.
High Battery optimize performance
Adopting intelligent battery management technology, so as to prolong the service life of
batteries, reduce the battery maintenance times.Advanced constant-voltage charging technology,
maximum activate cells, save the charging time, extend the service life of the battery.Charging
current can be independent m anagement according to the concrete situation,
Network management
LCD display panel, accurately show the UPS working environment and working condition
information, convenient for the user to the operation of the UPS. Through RS232 interface with
UPS intelligent monitoring software can communicate with computer, The various parameters of
UPS clearly displayed in the communication interface. External SNMP adapter, UPS has remote
network management function, provides the data and current supply to UPS for the real-time
information, communication and management through a variety of network operating system.
Energy saving and environmental protection design
Can be disassembled type modular design, easy to maintain and highly save resources;
Adopting intelligent fan speed regulation is designed, according to the load of UPS power
components, environment temperature and actual temperature, intelligent on/off and speed of
the fan control, cooling performance, high energy saving at the same time, extend the service life
of fan; Adopting circulation control circuit design,good power saving performance ;Adopt green
rectifier and inverter technology, to provide users with clean energy.
