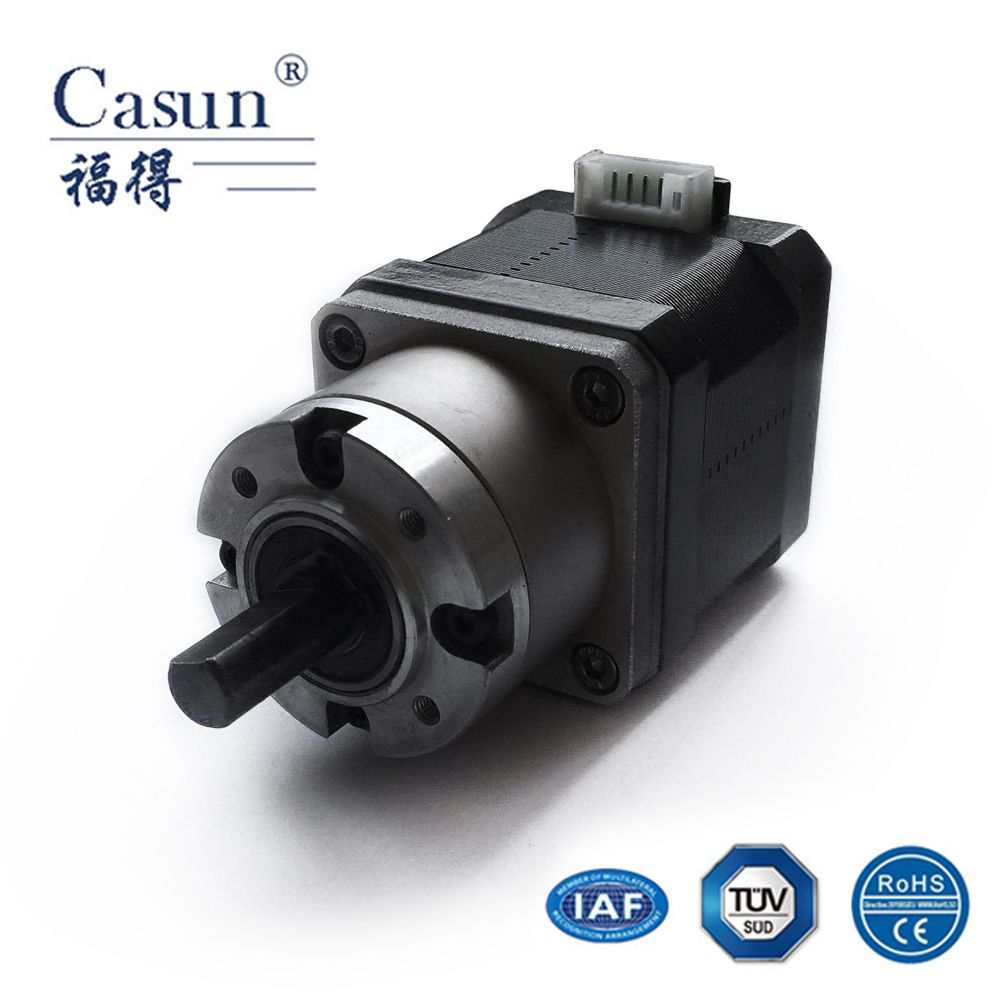

42mm Step 2 Phase NEMA 17 Geared Stepping Motor (42SHD0217-5G)
| Price: |
US $ 45-47/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Fude Manufacture is the super V.I.P GOLDEN SUPPLIER for stepper motor1) Over 10000+ designs2) Over 1000+ designs for 20183) Small order accept42mm step 2 Phase NEMA 17 Geared Stepping Motor (42SHD0217-5G)---------------------------------------------------------------------------------------Product information 1) Raw materials: tested by professional precise equipment.2) 3 inspection lines3) 1 year gurantee + famous chain customers| HYBRID GEAR STEPPER MOTOR 42SHD0217-5G Casun |
| General Specification | Electrical Specification |
| Step Angle | 1.8° /1:5 | Rated Voltage | 3.75V |
| Number of Phase | 2 | Rated Current | 1.5A |
| Insulation Resistance | 100MΩmin. (500V DC) | Resistance per phase | 2.2ohm±10% |
| Insulation Class | Class B | Inductance per Phase | 5.0mH±20% |
| Rotor Inertia | 57g.cm² | Holding torque | 500mN.m |
| Mass | 0.65kg | Detent torque | 15mN.m |
| Gear redution ration | 1:5 | Out torque (ref) | 2.0N.m (at 0-25RPM) |

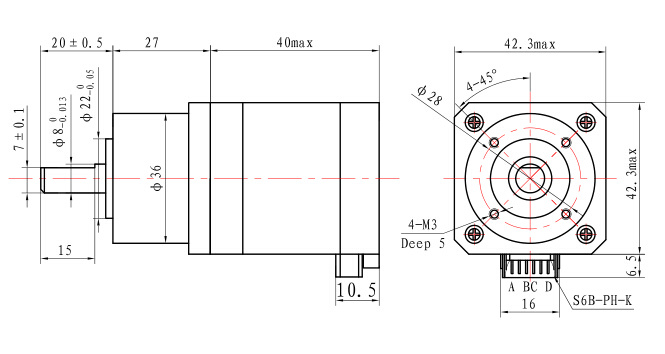

Figure Dimensions Unit:mm
|
OEM &ODM are welcomed.---------------------------------------------------------------------------------------Package Details1) Carton box with foam inside.2) Can be customized.
---------------------------------------------------------------------------------------
Working Process1) First, Fabricate the Product;2) Second, Assemble the Component;3) Third, Testing the Motor;4) Fourth, Quality Inspection.
---------------------------------------------------------------------------------------Company InformationGuangzhou Fude Electronic Technology Co.,Ltd1) Our Core Competencies are Hybrid stepper motor, PM stepper motor, Hybrid linear stepper motor And Closed Loop stepper motor;2) Our Nich Market are North & South Amercia, Europe and Asia;3) Our value Message is with us your money in safe your business in safe;4) Quality is the soul of our enterprise, Certificated by CE, RoHs, TUV.
---------------------------------------------------------------------------------------Why Choose Us?1) Competitive Advantage Products;2) CE, RoHs, ISO9001, TUV Rheinland Certification report;3) OEM &ODM are welcomed, we have our own R &D members team;4) <1% Defect rate and 1 year guarantee;5) FREE Sample OFFER &SMALL order welcomed;6) Payment by PAYPAL;7) Confidentiality Aagreement "Business Secret CONTRACT" Welcome Contact Us!!| Contact Person | Sarah Mai |
| Email | [email protected] |
| Mob | +0086 18218393143 |
| Address | No.2, Xiaoshima Commercial Street, Shima Village, Baiyun District, Guangdong PR |
| Prod Model: |
42SHD0217-5G |
| Step Angle: |
1.8 Degree |
| Phase: |
2 |
| Gear Redution Ratio: |
1:5 |
| Holding Torque: |
500mn.M |
| Rated Current: |
1.5A |
| Rated Voltage: |
3.75V |
| Rotor Inertia: |
57g.Cm2 |
| Out Torque (Ref): |
2.0n.M (at 25rpm) |
| Number Of Wire: |
4 |
| OEM &ODM: |
Welcomed Geared Stepping Motor |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Electromechanical |
| Operate Mode: |
Two-Phase Bipolar |
| Certification: |
Ce &RoHS &TUV |
| Brand: |
Casun |
