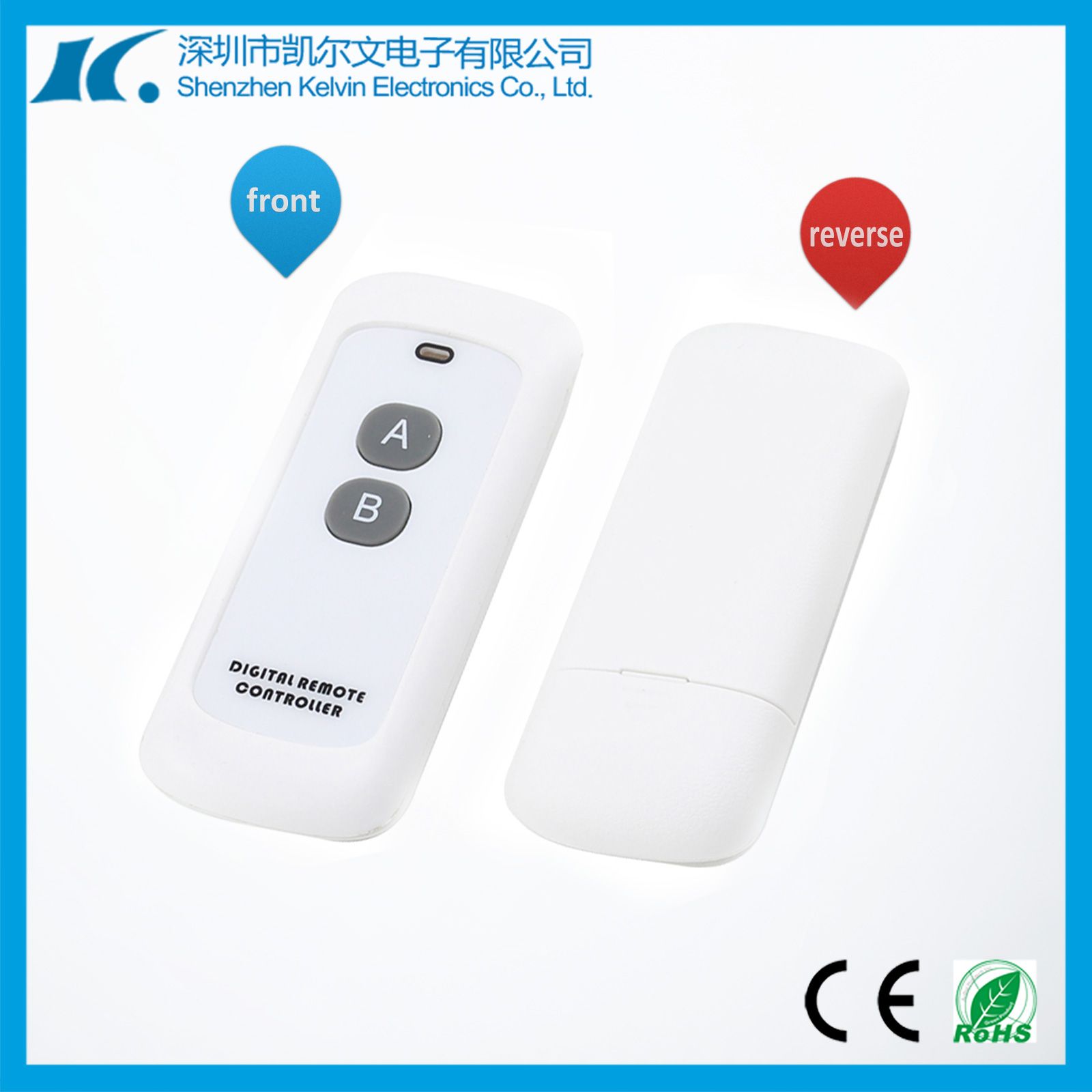

433.92MHz learning code universal rf remote controller KL600-1/2/3/4/5/6/8
RF Remote Control Transmitter 1/2/3/4/5/6/8- Button 50-150m Range (KL600-1/2/3/4/5/6/8)
Designed for universal medium range remote control applications. Our radio remote control transmitter is highly configurable with frequency from 250MHz to 450MHz and encoding type from fixed code / learning code to high security rolling code.
.

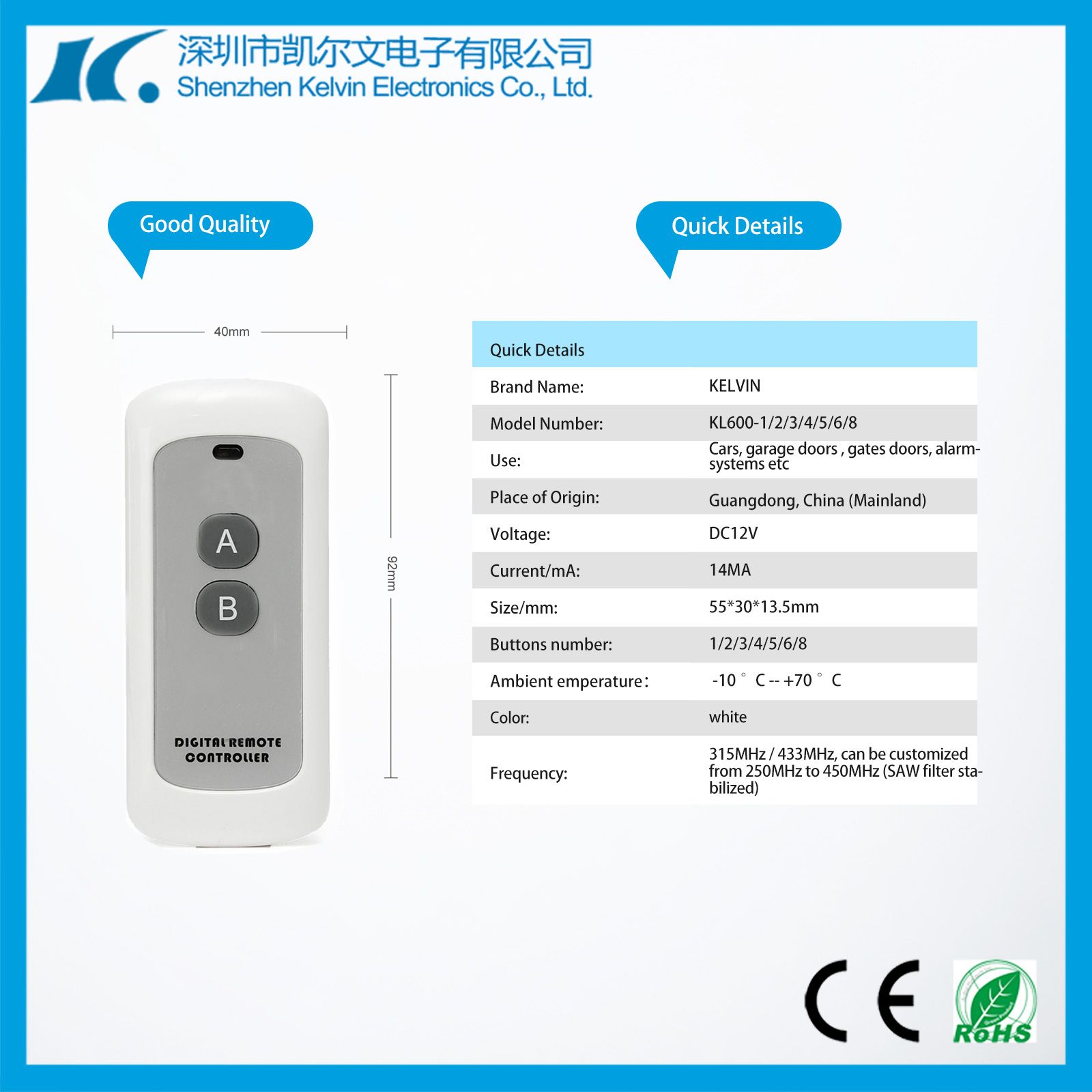

RF Remote Control Transmitter Features / Technical Specifications
| Antenna Type: | Internal/External |
| Modulation Type: | Reliable ASK technology / FSK technology with 868MHz (Customized) |
| Working Voltage: | DC12V (Battery Size: 12V 23A) |
| Working Current: | 14mA |
| Standby Current: | 4uA |
| Transmitting Distance: | 50-150m (150-500 ft.)* @-105dBm, 433MHz |
| Encoding Type: | Fixed Code (2260, 2262, HT12E, etc.), Learning Code (1527, 527, RT1587, etc.), Customize High Security Rolling Code(HCS301)** |
| Encoding Method: | Soldering or by Learning code - Fixed Code / Auto code learning - Learning Code & Rolling Code |
| Frequency: | 315MHz / 433MHz, Customize 868MHz |
| Channel / Button Number: | 1 / 2 / 3 / 4 / 5 / 6 / 8(optional) |
| Dimension: | 92mm x 40mm x 15mm |
| Weight: | 40g |
| Operating Temperature: | -20° to 72°C (-4° to 161.6°F) |
| Enclosure Material: | As shown in product photo, plastic or metallic |
| Other: | Sleek new case with flashing LED transmission indicator |
| Manufacturing: | High-quality SMT manufactured |
| Certificate: | CE, R&TTE, FCC compatible*** |
*Transmitting Distance: Transmitting distance is measured LOS (line of sight) with little radio interference, actual distance may vary greatly depending on the installation and operating environment.
** High Security Rolling Code (HCS301): With Kelvin Anti-Code Grabbing technology the transmitter's code changes every time the transmitter button is pressed. This prevents the electronic theft of the code.
***Certificate: Our products are certificate compliant, for more information on either CE or FCC ID, please contact us.
Like a more customized product?
The button labels can be customized to your needs, and we can also add your brand logo on the transmitter.
RF Remote Control Transmitter Customizations
Button Labels: ABCD/ 1234 / Lock, Unlock, Stop, Alarm / Customizable
Color: As shown in photo, some model has multiple colors to choose from
Brand Label: Brand logo print / etching available for large orders. Contact us for details
Frequency: 868MHz / 915MHz can be customized.
Coding Type: Rolling Code, or our private learning code.
RF Remote Control Transmitter Applications
Widely used in automobiles, motorcycles, remote engine starter, vehicle door locks, anti-theft alarm and security system, personal alarm, home security system, home electric control, wireless toys, short-to-medium distance wireless remote control products, garage door and gate openers, wireless roller blinds and shutter control, industry automation, etc.
Feature Highlights
Extremely Low Harmonic, easy to pass CE & FCC test.
Low Quiescent Current, down to 4uA.
Good-looking appearance, antenna could be internal or external depends on buyer's requirements.
RF Remote Control Transmitter Product Availability
Eastern Europe, North America, Mid East / Africa, Central / South America, Asia, Western Europe, Australasia
Due to EU regulations, 433MHz transmitters / receivers is preferred in European countries.
Shipping
1) Express: DHL, FedEx, UPS, TNT, EMS, etc.
2) By air
3) By sea
4) By special line
Depends on buyer's requirement.
FAQ
1) What is your warranty period?
Generally, we provide 1 year warranty for all our products unless otherwise mentioned. (Some are 2 years.)
For DOA (Defective On Arrival) items, which will be replaced or refund, please inform us within 3 days of arrival, please also keep all components and original packaging as further checking maybe required, faulty items must be returned for repair or exchange.
2) If i don't know how to use the products, what can i do?
Pls contact us whenever you need our help, even we are not online.
You can write email to us, or contact us byTrademanager, Skype, and other IM tools.
We are all very glad to answer your questions.
3) What certifications do you have?
Most of our products are approved with CE certification, some are with FCC.
If you have any other requriements with certifications, we also would like to help you.
Our Service
1. Accept OEM, ODM &silk-screen printing you logo on the shell.
2. Response in 10 hours.
3. Experienced R&D staff.
4. Professional SMT equipments.
5. Accept payment via T/T, Paypal, Western Union, Escrow, and so on.
6. Delivery by DHL,UPS,EMS or by sea as your requirments.
For order
1).Accept OEM.
2).Print logo on the case and pakage
3).Payment Details :30% deposite,70% balance before shipment. Payment accept T/T, Western union, PayPal, optional)
4).Minimum Order:100 pcs (accept trial order)
5).Delivery Details: within 3-5 days depends on order quantity.
Shenzhen Kelvin Electronics Co., Ltd. is one of the leading manufacturers of RF products in China. We were established in 2006, and equipped with professional R&D team and abundant technical skills.
Our main business covers RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.
Kelvin always wins customers' recognition with quality and after-sales service. All items designed with Europe standard, meeting the CE and RoHS requirement. We have been ISO9001: 2000 certified since 2015. It's carried out strictly from raw material purchasing to packing and warehousing, also effectively lower down the defective rate. Besides, we are trying to make a real difference to the environment by improving our production processes and adopting environmental material, etc.
Company History: Feb 2006 Company Founded--DEC 2006 1st SMT production line--Nov 2008 1st Ce Certification--Feb 2016 Subsidiary company established
Sales performance: Turnover in 2012 Over 10million RMB--2016 Over 10million RMB
Scope of business: RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.
Prospects for development: Bright future is coming
