| Prod Model: |
KL-K103X |
| Standby Current: |
8mA |
| Frequency: |
433MHz/315MHz, Optional |
| Decoding Type: |
Learning Code(1527), Fixed Code(2262) |
| Output Mode: |
Switching on/off(Dry Contact) |
| Working Mode: |
Momentary / Toggle / Latching |
| Max Load: |
7A (Relay Contact) |
| Application: |
Automatic Doors |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
| Material: |
Plastic |
| Battery Type: |
Button Battery |

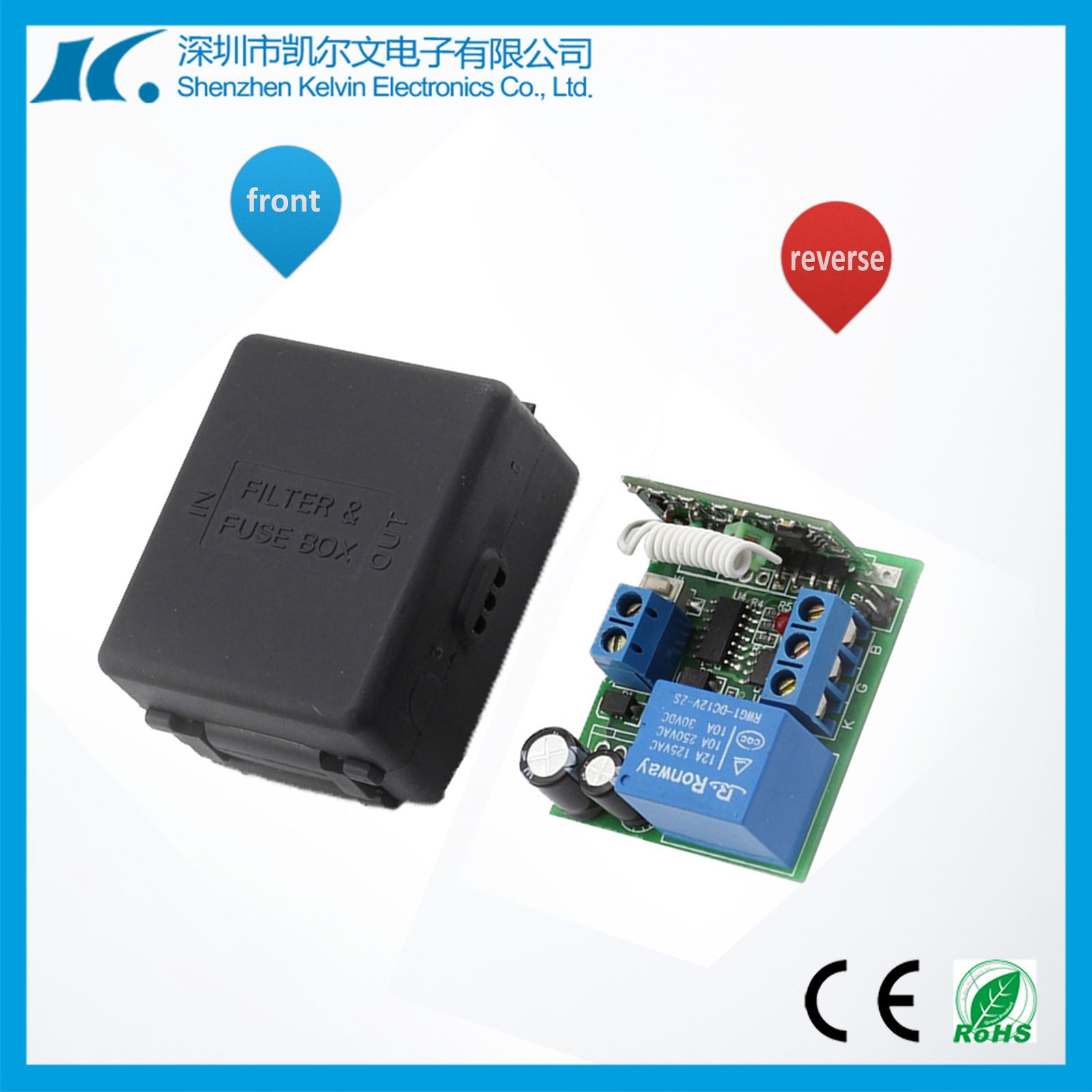

Product Description
Operation Method:
1. Match code:
Hold learning button and learning indicator light blinks, then press a buttons of remote control, if indicator lights flashes 3 times, match code successfully. Maximum 20 remote controls can be matched.
Pls note that KL-K103X can learn any data code. It means it can be controlled by whichever button you press on the remote while matching.
2. Delete code:
Hold learning button till the indicator LED lights and then off, delete successfully.
3. Set working mode:
S1 & S2 program the sequence as follows:
Jumper on S1→ Toggl
Jumper on S2→ Latching
No Jumper on S1 &S2→ Momentary
Tech Data:
DC 12V 1-Channel Remote Control Switch KL-K103X
| Input | DC 12V (DC9V, 24V is customized) |
| Channels | 1 |
| Working Current | 8mA |
| Working Frequency | 433MHz / 315MHz (other frequency is customized) |
| Receiver Sensitivity | -103dBm |
| Decoding Type | Learning Code(EV1527) / Fixed Code(2262) |
| Output Mode | Switching Signal (Dry Contact) |
| Working Mode | Momentary / Toggle / Latching |
| Max Load of Relay Contact | 7A |
| Dimension | 44*37*20mm |
Working Mode:
1. Momentary: Press remote button A, the corresponding relay on the receiver is on; release button A, the relay is off, the same as others.
2. Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same as others.
3. Latching: Press remote button A, the relay A is on, B is off; press button B, the replay B is on, A is off.

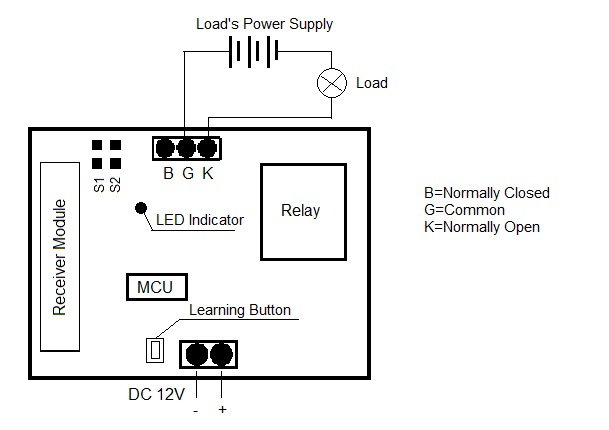

Wiring Way & Diagram:
B=Normally Closed, G=Common, K=Normally Open
