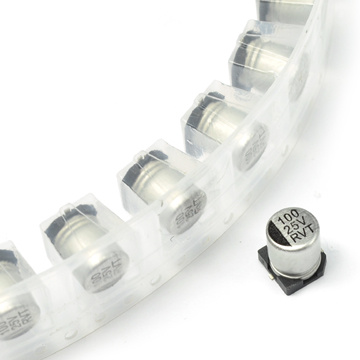

TMCE24-SMD Aluminum Electrolytic Capacitor
Key Specifications/Special Features:
Rated working voltage: 4 to 100V DC
Nominal capacitance range: 0.1 to 1, 500μ F
Capacitance tolerance (120Hz, 20° C): ± 20% (M)
Leakage current: I≥ 0.01CRUR or 3uA, whichever is greater (after 2 minutes application of rated voltage)
CR: Nominal capacitance
UR: Rated voltage
Dissipation factor (120Hz, 20° C) (Tand): UR 4, 6.3, 10, 16, 25, 35, 50, 63, and 100V
Tand ≤ O8, 0.35, 0.26, 0.20, 0.16, 0.14, 0.12, 0.12, 0.12, and 0.10
Load life: After 2, 000hrs application of WV at 85° C
The capacitor shall meet the following limits:
Capacitance change: ≤ ± 20% of initial value (4V: Within ± 25%)
Dissipation factor: ≤ 200% of initial specified value
Leakage current: ≤ Initial specified value
Shelf lifespan: After storage for 1, 000hrs at 85° C
Dissipation factor: Not more than the initial specified value
Leakage current: Not more than the initial specified value
Capacitance change: Within ± 10% of the initial value
Operating temperature range: -40 to 85° C
Shenzhen Topmay Electronic Co,.Ltd
17-year manufacturer of capacitors
Established in 1998, Shenzhen Topmay Electronic Co. Ltd is engaged in manufacturing, researching and developing a wide variety of capacitors.
Wide product range
Multilayer ceramic capacitors (radial, axial, and SMD)
Ceramic disc capacitors (low and high voltage)
Aluminum electrolytic capacitors (radial, axial and SMD)
Film capacitors (polyester, polypropylene and metallized)
Tantalum capacitors (radial, SMD, axial) and others)
Mica capacitors
Super capacitors
Monthly output of 1 million units
Prompt delivery
In-stock items: three- to five-day lead time
Regular orders: seven- to 10-day lead time
OEM orders: 15-day lead time
| Description | Size(mm) | U/P | MOQ | L/T |
| SMD E-CAP | 1000uF 6.3V | 10*10.5mm | $0.069 | 5000 | 12 work days |
| SMD E-CAP | 220uF 10V | 6.3*7.7 | $0.025 | 5000 | 12 work days |
| SMD E-CAP | 470uF 10V | 8*10.5 | $0.048 | 5000 | 12 work days |
| SMD E-CAP | 1000uF 10V | 10*10.5 | $0.069 | 5000 | 12 work days |
| SMD E-CAP | 220uF 16V | 6.3*7.7 | $0.025 | 5000 | 12 work days |
| SMD E-CAP | 22uF 25V | 5*5.4 | $0.017 | 5000 | 12 work days |
| SMD E-CAP | 470uF 25V | 10*10.5 | $0.069 | 5000 | 12 work days |
| SMD E-CAP | 220uF 35V | 10*10.5 | $0.069 | 5000 | 12 work days |
| SMD E-CAP | 220uF 50V | 10*10.5 | $0.069 | 5000 | 12 work days
|
| | TMCE24-SMD Aluminum Electrolytic Capacitor | Description | Qty | MFG | TOPMAY U/P($) |
| 40 | SURFACE MOUNT ALUMINUM EL-CAPACITORS | ZV Series 10X10.5mm,105 10V/1000uF | 40,000 | Topmay | 0.0725 |
| 41 | SURFACE MOUNT ALUMINUM EL-CAPACITORS | EV Series 6.3X7.7mm,105 10V/220uF | 10,000 | Topmay | 0.0265 |
| 42 | SURFACE MOUNT ALUMINUM EL-CAPACITORS | EV Series 6.3X5.5mm,105 10V/100uF | 20,000 | Topmay | 0.0216 |
| 43 | SURFACE MOUNT ALUMINUM EL-CAPACITORS | EV Series 4X5.5mm,105 50V/1uF | 10,000 | Topmay | 0.0167 |
| 3 | SURFACE MOUNT ALUMINUM EL-CAPACITORS | EV Series 6.3X5.5mm,105 16V/100uF | 20,000 | Topmay | 0.0216 |
Established in 1998, and mainly engaged in manufacturing, researching & developing, and dealing in various capacitor, Shenzhen Topmay Electronic Co., Ltd. is an industrial enterprise with independent corporate entity and has its headquarters located at the flourishing center of Shenzhen, a city has been recognized as the frontier of China economy. After years' persistent hard work by all the companions, Topmay has now developed to be a famous electronic company that promotes very quickly with the most advanced technology.
Topmay has large factories by joint venture. Located in NanTong city. Years' continuous development now provides us with standard workshop of 12, 000 square meters, 6 production lines and 862 employees.
Presently, Topmay products mainly include the following products:
The whole series capacitors Film capacitor, Ceramic capacitor, Tantalum capacitor, Aluminum Electrolytic Capacitor, and etc.
Topmay holds an idea that the products quality is the life of a company. In order to serve our customers better, and to enhance the products grade, Topmay has invested a lot to the application of kinds of international system and quality certifications, and have achieved the following: ISO9001: 2000, ISO14001, Greatwall, CE, SA, UL, TUV, VDE, and etc. Topmay insist on a tenet that people should be oriented, efficiency is the priority, quality should be emphasized, and credit is the uppermost. And we try our best to exploit and to innovate, and keep improving our production technology. So now we gradually grow up to be an outstanding one in our industry. Topmay products are of numerous varieties, compete species, super quality, competitive price and stable function, and all of their indexes have reached the international advanced level.
Topmay takes marketing as the key procedure of the company's entire development. One after another, we attend many global electronics fairs that take place in Munich, Hong Kong, Shanghai, Guangzhou, and Shenzhen. Meanwhile, we get going kinds of driving publication on the well-known B2B websites, such as EbigChina, Made-in-China. com, Globalsources and etc. All these have surely afforded us a good result, a profound influence, and a continuously expanded clients group. At present, Topmay's business primarily concentrates abroad, more than 65%'s export. Because of the super-quality products, the eminent business reputation, the omnibearing technique service and competitive prices, we have established a stable relationship of good cooperation with overseas customers. Now our products have been sold to many distant places, such as USA, Canada, Brazil, Germany, England, France, Spain, Turkey, Russia, Poland, Arabia, Bulgaria, Korean, Malaysia, India, HK, Taiwan, and etc. Namely, a large scope of overseas market has been successfully occupied.
