Shenzhen Topmay Electronic Co., Ltd. >> 470UF 400V Snap in Aluminum Electrolytic Capacitor 105c

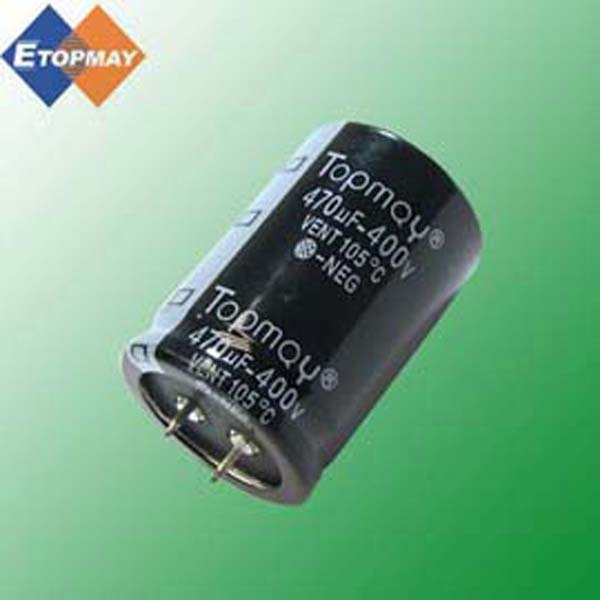

470UF 400V Snap in Aluminum Electrolytic Capacitor 105c

470UF 400V Snap in Aluminum Electrolytic Capacitor 105c
Price: Negotiable/Piece
Trade Terms: FOB,CIF,FCA
Min Order: 1000/Piece
Pay Type: T/T,Western Union
Capacitor

6800UF Snap-in Terminal Aluminum Electrolytic Capacitor

Features
  105ºC,2000 hours, snap-in terminal, Long life.
   Suitable for Ballast circuit,inverter,transducer.

Specifications
ItemCharacteristics
Rated Voltage Range10~450V.DC
Operating Temperature
Range
-40ºC~105ºC
Capacitance Tolerance±20%(M)  (25ºC,100 or 120Hz)
Leakage CurrentI≤ 3 (mA)
Whichever is greater after 5 minutes at 25ºC.
Dissipation Factor
UR(V)200250~450
tgδ0.150.20
     (25ºC,100 or 120Hz)


Low Temperature
Characteristics
Impedance ratio at 100Hz or 120Hz shall not exceed the values given in the below table.
UR(V)10~3550~100200~250400~450
Z-40ºC/Z2510677
Load  LifeAfter application of rated voltage with ripple current for 2000hours at 105ºC,the following specification shall be satisfied.
Capacitance ChangeWithin ±20% of the initial value
 Dissipation FactorNot more than 200% of the specified value
Leakage CurrentNot more than the specified value
OthersMeet Q/RME 149-2013, GB/T 5993-2003

More details pls ask for datasheets!

About Us:
Shenzhen Topmay Electronic Co,.Ltd
18-year manufacturer of capacitors
Established in 1998, Shenzhen Topmay Electronic Co. Ltd is engaged in manufacturing, researching and developing a wide variety of capacitors.
Wide product range
Multilayer ceramic capacitors (radial, axial, and SMD)
Ceramic disc capacitors (low and high voltage)
Aluminum electrolytic capacitors (radial, axial and SMD)
Film capacitors (polyester, polypropylene and metallized)
Tantalum capacitors (radial, SMD, axial) and others)
Mica capacitors
Super capacitors
Monthly output of 1 million units
Prompt delivery
In-stock items: three- to five-day lead time
Regular orders: seven- to 10-day lead time
OEM orders: 15-day lead time

Radial Electrolytic CapacitorU/P(USD)MOQL/TPayment
2200uF   10V   10X20   0.03532000015-20 DAYSTT advanced
100uF     16V    5X110.00592000015-20 DAYSTT advanced
10 uF      25V    5X110.00422000015-20 DAYSTT advanced
100 uF     25V    6,3X110.00782000015-20 DAYSTT advanced
470uF     25V    10X120.02182000015-20 DAYSTT advanced
1000 uF   25V    10X200.03782000015-20 DAYSTT advanced
2200 uF   25V   13X210.06472000015-20 DAYSTT advanced
1000 uF  35V    13X200.06042000015-20 DAYSTT advanced
4.7 uF    50V     5X110.00472000015-20 DAYSTT advanced
47 uF     50V    6,3X110.00822000015-20 DAYSTT advanced
1000 uF  50V   13X250.08472000015-20 DAYSTT advanced
47 uF    400V   16X250.16242000015-20 DAYSTT advanced




Prod Model: TMCE18
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Color: Black
Tolerance: +-20
Voltage: 100V
Type: Aluminum Electrolytic Capacitor
Application: Lighting
Package Type: Through Hole
Capacitance: 3300UF
Manufacturing Material: Aluminum
Tuning: Aluminum
Established in 1998, and mainly engaged in manufacturing, researching & developing, and dealing in various capacitor, Shenzhen Topmay Electronic Co., Ltd. is an industrial enterprise with independent corporate entity and has its headquarters located at the flourishing center of Shenzhen, a city has been recognized as the frontier of China economy. After years' persistent hard work by all the companions, Topmay has now developed to be a famous electronic company that promotes very quickly with the most advanced technology.

Topmay has large factories by joint venture. Located in NanTong city. Years' continuous development now provides us with standard workshop of 12, 000 square meters, 6 production lines and 862 employees.

Presently, Topmay products mainly include the following products:

The whole series capacitors Film capacitor, Ceramic capacitor, Tantalum capacitor, Aluminum Electrolytic Capacitor, and etc.

Topmay holds an idea that the products quality is the life of a company. In order to serve our customers better, and to enhance the products grade, Topmay has invested a lot to the application of kinds of international system and quality certifications, and have achieved the following: ISO9001: 2000, ISO14001, Greatwall, CE, SA, UL, TUV, VDE, and etc. Topmay insist on a tenet that people should be oriented, efficiency is the priority, quality should be emphasized, and credit is the uppermost. And we try our best to exploit and to innovate, and keep improving our production technology. So now we gradually grow up to be an outstanding one in our industry. Topmay products are of numerous varieties, compete species, super quality, competitive price and stable function, and all of their indexes have reached the international advanced level.

Topmay takes marketing as the key procedure of the company's entire development. One after another, we attend many global electronics fairs that take place in Munich, Hong Kong, Shanghai, Guangzhou, and Shenzhen. Meanwhile, we get going kinds of driving publication on the well-known B2B websites, such as EbigChina, Made-in-China. com, Globalsources and etc. All these have surely afforded us a good result, a profound influence, and a continuously expanded clients group. At present, Topmay's business primarily concentrates abroad, more than 65%'s export. Because of the super-quality products, the eminent business reputation, the omnibearing technique service and competitive prices, we have established a stable relationship of good cooperation with overseas customers. Now our products have been sold to many distant places, such as USA, Canada, Brazil, Germany, England, France, Spain, Turkey, Russia, Poland, Arabia, Bulgaria, Korean, Malaysia, India, HK, Taiwan, and etc. Namely, a large scope of overseas market has been successfully occupied.
