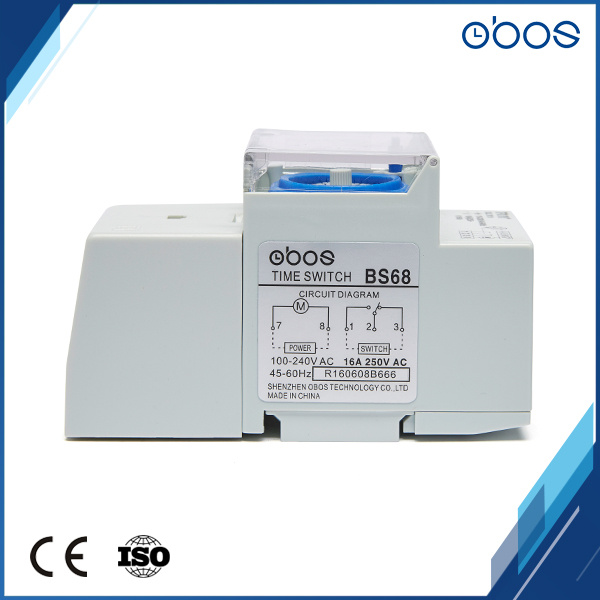

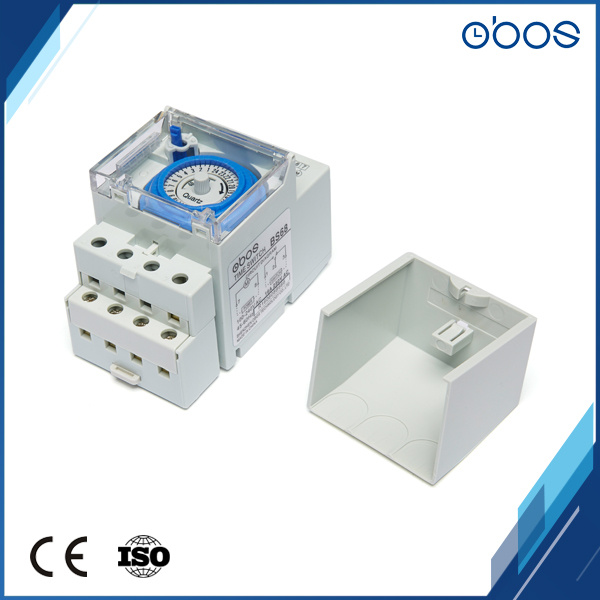

48 Times on off Timer Switch Mechanical
| Price: |
US $ 3-6/Piece |
| Min Order: |
6/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Company profile
shenzhen OBOS science and technology co., LTD., founded in 2006 in shenzhen which is full of vitality and innovation, close to prosperity Hong Kong.
Company has been committing to intelligent automation control of electronic products in the field of research, development, production and sales
.
After 10 years of the development , the company has set a good brand image in the market.
Now the OBOS products bas been exported to more than countries such as North America, Europe, southeast Asia, Latin America and the Arab countries etc BS68(sul181h)
Function:
The product can open and close all kinds of power supply automatically according to the user's time.
The control objects can be road lamp, neon lamp, billboard, producing equipment, broadcast TV,and all that the circuit fixtures and home appliances need setting time to control.
C
FAQ:
1:what's your company's advantage :
proper performance price ratio
2: Could I put my own logo on it?
Q:Sure, customers' logo can be printed or put on the items.
3: How about the longevity of the items?
Normally 2 years
4:A:Could you provide sample ?
Of course, We provide sample with clients,
5.:How long does it take to make a sample?
Q:Normally within one week.
Thanks for your reading. If any product meets your need, welcome to send us an email. We are sure any of your information will be replyed as soon as possible.

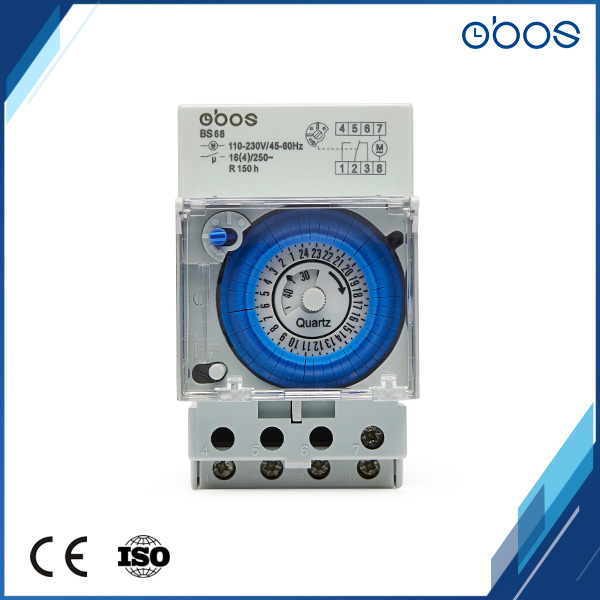

the operating instructions for Rotating type time switch
1. Please set all the blue handle to pull to the inner side of the dial.
2. Adjust their time position, Please rotate the minute hand button according to the direction of the arrow make it in accordance with the time now, pay attention to the time display for 24-hour dial, do not use wrong in morning and afternoon.
3. Set up the working time, such as: to open the ten o 'clock in the morning, at 6 PM to closing, please in at 10 to 18 points in this location all set the handle to pull out.
4. After the time set, please send the manual switch to the middle position (AUTO) automatically.

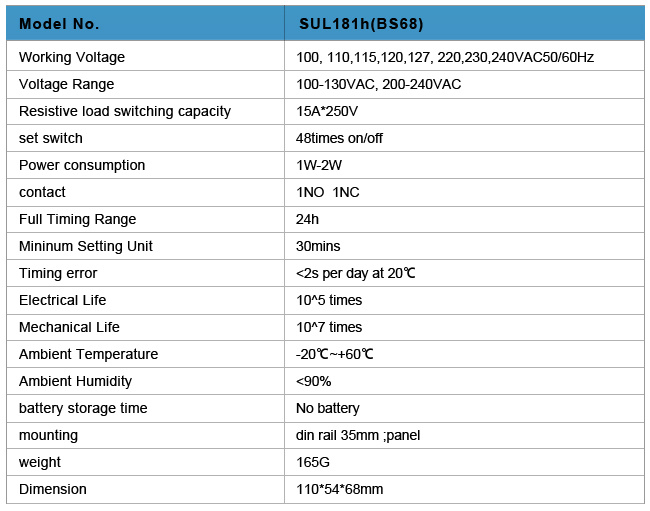

| Prod Model: |
BS68(sul181h) |
| Working Voltage: |
100, 110, 115,120,127,220,220,230,240V AC |
| Voltage Range: |
100-130VAC; 200-240V/AC |
| Frequency: |
50/60Hz |
| Contact Capacity(Resistance): |
15A*250VAC |
| Contact Electrical Life: |
100000 Times |
| Machine Life: |
10000000 Times |
| Average Error: |
<2s Per Day at 20ºC |
| Open / Close Times: |
10 Times a Day / a Week Circle |
| Consumed Power: |
1W-2W |
| Timing Control Range: |
1min-168h |
