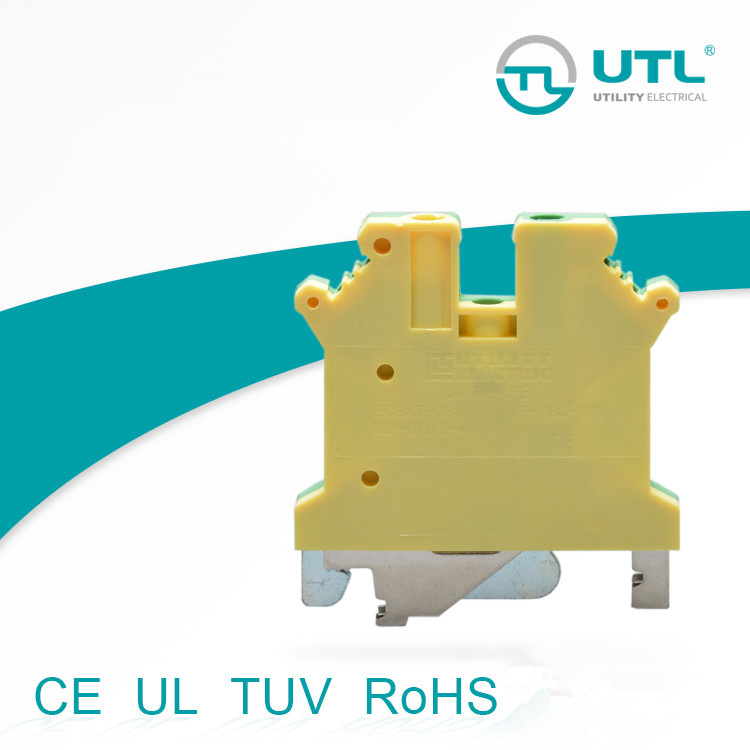

4mm2 AWG24-10 800V Voltage Earth Connector

4mm2 AWG24-10 800V Voltage Earth Connector
Price: US $ 0.1-1/Piece
Min Order: 100/Piece
Pay Type: T/T,Western Union,Paypal

4mm2 AWG24-10 800V Voltage earth connector
Model No.JUT1-4PE
Item name JUT1 Ground Screw Series
ColorYellow green as photo,or OEM
Size TH:6.2 W:42.5 H:47.0 H:52.0
Landing TerminalWith yellow/green insulation outer-case,installed on tracks NS32-G or NS32-U
Rigid/soft Cable0.2-6.0mm2/0.2-4.0mm2
Conductor Size24-10AWG
Mark barTwo character styles,with horzontal and vertical arrangements,ten spaced
IVoltage rating/Current rating800V/41A
Payment termA.Below US$300,western,paypal accepted
B.Above US$300,bank account
CertificateTUV/CE/UL/VDE/RoHS/SGS/CCC/CQC  approved standard
Logo      Customized logo are available as request
Design ability        We can supply sample,OEM&ODM is welcome


Features:

JUTl universal landing terminal serminal series product is mainly for landing or connecting to neutral,
 it possesses current load capabilitu of corresponding specification wiring terminal. Its low-connection
 resistance,anti-corrosion connection point and yellow/green mark all can meet the regulated demand of relative technical standard.

UTL specialized in producing all kind of terminal block.Through persistent research and development, we have grown into a leading manufacturer of this line.We produce several series products for you choose,if you are interesting in any of our product Please feel free to contact us or E-mail us we are happy to give you more details
Prod Model: JUT1-4PE
IEC: 60947-7-1
Current: 41A
Voltage: 800V
Thickness: 6.2
Application: Transmission of Electrical Signals
Type: DIN Rail Screw Terminal Blocks
Material: Red Copper
Certification: Ce
Brand: Utl
UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
