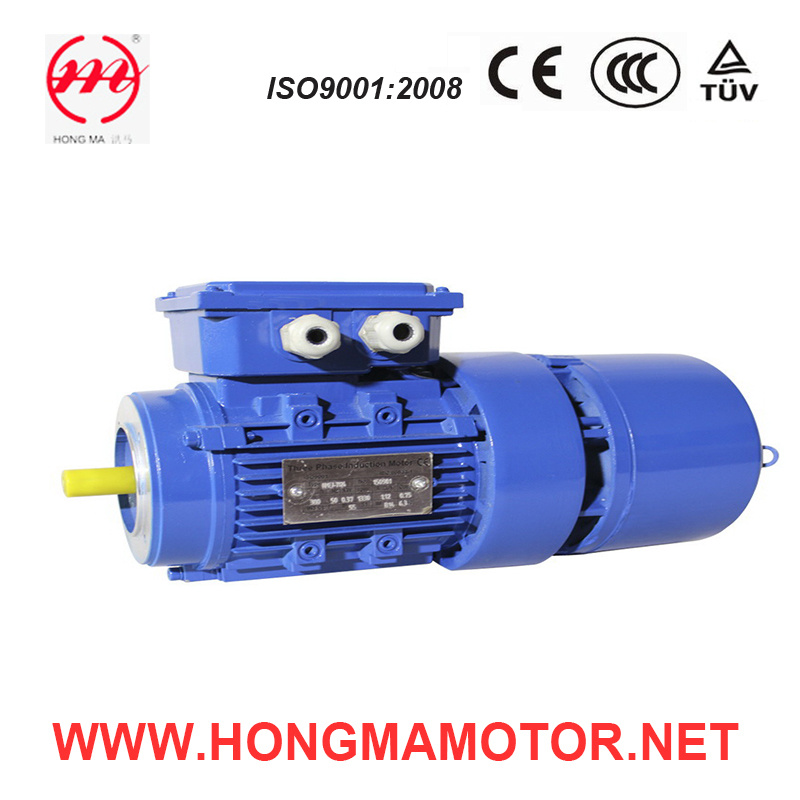

HMEJ (AC) series Self-Braking Electric Motor
HMEJ series AC brake motor is three-phase asynchronous motor which is totally enclosed squirrel cage with additional AC brake of disk type. It has advantage of fast brake, simple structure, high reliability and good versatility. In additional, the brake has manual work releasing structure which is widely used in mechanical equipment and transmissions devices for various requirements of rapid stop and accurate positioning.
Technical Data
TYPE | POWER | 380V 50Hz Full Loaded | Brake torque | Brake timw | Energizing Power | Weight | Housing Material |
|
(kw) | Speed (r/min) | Current(A) | Eff | Power factor | (Nm) | <(s) | <(w) | (kg) |
|
Synchrouns Speed 3000r/min(2P)380V 50Hz |
YEJA711-2 | 0.37 | 2756 | 1 | 70.0 | 0.81 | 4 | 0.20 | 40 | 9.3 | ALU |
YEJA712-2 | 0.55 | 2792 | 1.4 | 72.0 | 0.82 | 4 | 0.20 | 40 | 10.5 |
YEJA801-2 | 0.75 | 2830 | 1.9 | 72.1 | 0.83 | 7.5 | 0.20 | 50 | 14 |
YEJA802-2 | 1.1 | 2830 | 2.7 | 75.0 | 0.84 | 7.5 | 0.20 | 50 | 15 |
YEJA90S-2 | 1.5 | 2840 | 3.5 | 77.2 | 0.84 | 15 | 0.20 | 60 | 20 |
YEJA90L-2 | 2.2 | 2840 | 4.9 | 79.7 | 0.85 | 15 | 0.20 | 60 | 23 |
YEJA100L-2 | 3 | 2860 | 6.4 | 81.5 | 0.87 | 30 | 0.20 | 80 | 31 |
YEJA112M-2 | 4 | 2880 | 8.3 | 83.1 | 0.88 | 40 | 0.25 | 100 | 44 |
YEJA132S1-2 | 5.5 | 2900 | 11.2 | 84.7 | 0.88 | 75 | 0.25 | 130 | 80 |
YEJA132S2-2 | 7.5 | 2900 | 15.1 | 86.0 | 0.88 | 75 | 0.25 | 130 | 94 |
YEJA160M1-2 | 11 | 2930 | 21.4 | 87.6 | 0.89 | 150 | 0.35 | 150 | 150 |
YEJA160M2-2 | 15 | 2930 | 28.9 | 88.7 | 0.89 | 150 | 0.35 | 150 | 160 |
YEJA160L-2 | 18.5 | 2930 | 35 | 89.3 | 0.90 | 150 | 0.35 | 150 | 180 |
Synchrouns Speed1500r/min(4Pole)380V 50Hz |
YEJA711-4 | 0.25 | 1390 | 0.8 | 65.0 | 0.74 | 4 | 0.20 | 40 | 9.3 | ALU |
YEJA712-4 | 0.37 | 1390 | 1.13 | 67.0 | 0.74 | 4 | 0.20 | 40 | 10.5 |
YEJA801-4 | 0.55 | 1390 | 1.6 | 71.0 | 0.74 | 7.5 | 0.20 | 50 | 14 |
YEJA802-4 | 0.75 | 1390 | 2.1 | 73.0 | 0.75 | 7.5 | 0.20 | 50 | 15 |
YEJA90S-4 | 1.1 | 1400 | 2.9 | 76.2 | 0.76 | 15 | 0.20 | 60 | 20 |
YEJA90L-4 | 1.5 | 1400 | 3.7 | 78.5 | 0.78 | 15 | 0.20 | 60 | 23 |
YEJA100L1-4 | 2.2 | 1420 | 5.2 | 81.0 | 0.80 | 30 | 0.20 | 80 | 31 |
YEJA100L2-4 | 3 | 1420 | 6.8 | 82.3 | 0.81 | 30 | 0.20 | 80 | 33 |
YEJA112M-4 | 4 | 1440 | 8.8 | 84.2 | 0.82 | 40 | 0.25 | 100 | 44 |
YEJA132S-4 | 5.5 | 1440 | 11.8 | 85.7 | 0.83 | 75 | 0.25 | 130 | 80 | CI |
YEJA132M-4 | 7.5 | 1440 | 15.8 | 87.0 | 0.84 | 75 | 0.25 | 130 | 94 |
YEJA160M-4 | 11 | 1460 | 22.5 | 88.4 | 0.84 | 150 | 0.35 | 150 | 150 |
YEJA160L-4 | 15 | 1460 | 30 | 89.4 | 0.85 | 150 | 0.35 | 150 | 160 |
Synchronous speed 1000r/min(6P)380V 50Hz |
YEJA711-6 | 0.18 | 880 | 0.74 | 56.0 | 0.66 | 4 | 0.20 | 40 | 9.3 | ALU |
YEJA712-6 | 0.25 | 880 | 0.95 | 59.0 | 0.68 | 4 | 0.20 | 40 | 10.5 |
YEJA801-6 | 0.37 | 900 | 1.3 | 62.0 | 0.70 | 7.5 | 0.20 | 50 | 14 |
YEJA802-6 | 0.55 | 900 | 1.8 | 65.0 | 0.70 | 7.5 | 0.20 | 50 | 15 |
YEJA90S-6 | 0.75 | 910 | 2.3 | 69.0 | 0.70 | 15 | 0.20 | 60 | 20 |
YEJA90L-6 | 1.1 | 910 | 3.2 | 72.0 | 0.72 | 15 | 0.20 | 60 | 23 |
YEJA100L-6 | 1.5 | 940 | 4.0 | 76.0 | 0.74 | 30 | 0.20 | 80 | 33 |
YEJA112M-6 | 2.2 | 950 | 5.7 | 79.0 | 0.74 | 40 | 0.25 | 100 | 44 |
YEJA132S-6 | 3 | 960 | 7.4 | 81.0 | 0.76 | 75 | 0.25 | 130 | 80 | CI |
YEJA132M1-6 | 4 | 960 | 9.8 | 82.0 | 0.76 | 75 | 0.25 | 130 | 90 |
YEJA132M2-6 | 5.5 | 960 | 12.9 | 84.0 | 0.77 | 75 | 0.25 | 130 | 94 |
YEJA160M-6 | 7.5 | 970 | 17.2 | 86.0 | 0.77 | 150 | 0.35 | 150 | 150 |
YEJA160L-6 | 11 | 970 | 24.5 | 87.5 | 0.78 | 150 | 0.35 | 150 | 160 |
Synchronous speed 750r/min(8P)380V 50Hz |
YEJA801-8 | 0.18 | 690 | 0.94 | 51.0 | 0.57 | 7.5 | 0.20 | 50 | 14 | ALU |
YEJA802-8 | 0.25 | 690 | 1.2 | 54.0 | 0.58 | 7.5 | 0.20 | 50 | 15 |
YEJA90S-8 | 0.37 | 690 | 1.5 | 62.0 | 0.60 | 15 | 0.20 | 60 | 20 |
YEJA90L-8 | 0.55 | 690 | 2.2 | 63.0 | 0.61 | 15 | 0.20 | 60 | 23 |
YEJA100L1-8 | 0.75 | 700 | 2.4 | 71.0 | 0.67 | 30 | 0.20 | 80 | 31 |
YEJA100L2-8 | 1.1 | 700 | 3.3 | 73.0 | 0.69 | 30 | 0.20 | 80 | 33 |
YEJA112M-8 | 1.5 | 700 | 4.4 | 75.0 | 0.69 | 40 | 0.25 | 100 | 44 |
YEJA132S-8 | 2.2 | 710 | 6.0 | 80.5 | 0.71 | 75 | 0.25 | 130 | 80 | CI |
YEJA132M-8 | 3 | 710 | 8.1 | 82.5 | 0.71 | 75 | 0.25 | 130 | 94 |
YEJA160M1-8 | 4 | 720 | 10.3 | 84.0 | 0.73 | 150 | 0.35 | 150 | 140 |
YEJA160M2-8 | 5.5 | 720 | 13.6 | 85.0 | 0.74 | 150 | 0.35 | 150 | 150 |
YEJA160L-8 | 7.5 | 720 | 18.4 | 86.0 | 0.74 | 150 | 0.35 | 150 | 160 |
Connection:
Power under 3KW selects Star connection; Power up 3KW selects Delta
Connection
Package
The range of frame size from 80 to 132: Package by carton box and then
Packed by wooden box
The range of frame size 160 and above: One wooden box per set
