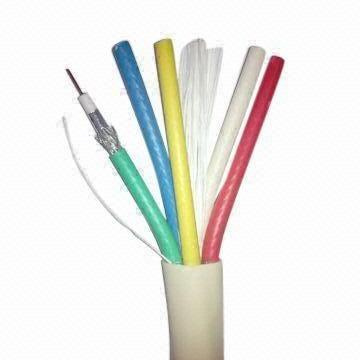

5 Bundled RG6 Multi-Core Coaxial Cables

Name: 5 Bundled RG6 Multi-Core Coaxial Cables
Brand: all-electronics-online.com
SKU: 724436565
Availability: InStock
Rating: 4.7 (29 reviews)

Price:	Negotiablekm
Trade Terms:	FOB
Min Order:	50km
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Description:
RG6 5-Packed, SC, Bonded Laminated Aluminum Tape, FPE, Al Braid,
PVC Jacket, Filler, Rip Cord, PVC Jacket
Center Conductor:
18AWG Solid Copper
Diameter: 1.02mm+/-0.01mm
Dielectric:
Gas Injected Foam Polyethylene
Diameter over Dielectric: 4.57mm+/-0.13mm
Shield:
1st shield: AL/PET/AL, non-bonded to the dielectric, 0.055mm*19mm
2nd shield: Aluminum Magnesium Alloy Wire, 4*16*0.12mm
Mylar:
PET Mylar, 0.015mm*20mm
Jacket:
Material: PVC
Diameter Over Jacket: 6.86mm+/-0.203mm
Color: Blue, Green, Red, Yellow, White
Printing: Per customer requirement
Cabling:
5 Cables Packed with PP Filler, Rip Cord, PET Mylar 0.025mm*42mm;
Nominal O.D.: 17.7mm
Jacket:
Material: PVC
Nominal Diameter Over Jacket: 21.5mm
Color: White
Printing: Per customer requirement
Electrical Properties:
Impedance: 75Ohm+/-3Ohm
Return Loss: Per EN50117
Nominal Velocity of Propagation: 83

Nominal Attenuation @ 68F(20C):
Frequency	dB/100meters (Max)	dB/100feet (Max)
5MHz	1.3	0.4
47MHz	4.1	1.25
230MHz	8.6	2.62
470MHz	12.8	3.90
862MHz	17.7	5.40
950MHz	18.7	5.70
2150MHz	29.6	9.02
2400MHz	31.6	9.63
3000MHz	RecordOnly	RecordOnly

Prod Model:	Coaxial Cable
Center Conductor:	Solid Copper
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ISO
Type:	RG6
Model:	RG6
Brand:	Wanma

Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
