High Flexible Robot Cable/Special Cable
| Price: |
US $ 10/Meter |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
10 million cycle times |
| Conductor: |
Tinned Copper/ Copper |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Application: |
High Flexible Robot Cable |
| Range Of Application: |
Robot |
| Brand: |
Wanma Special Cable |
Product Description

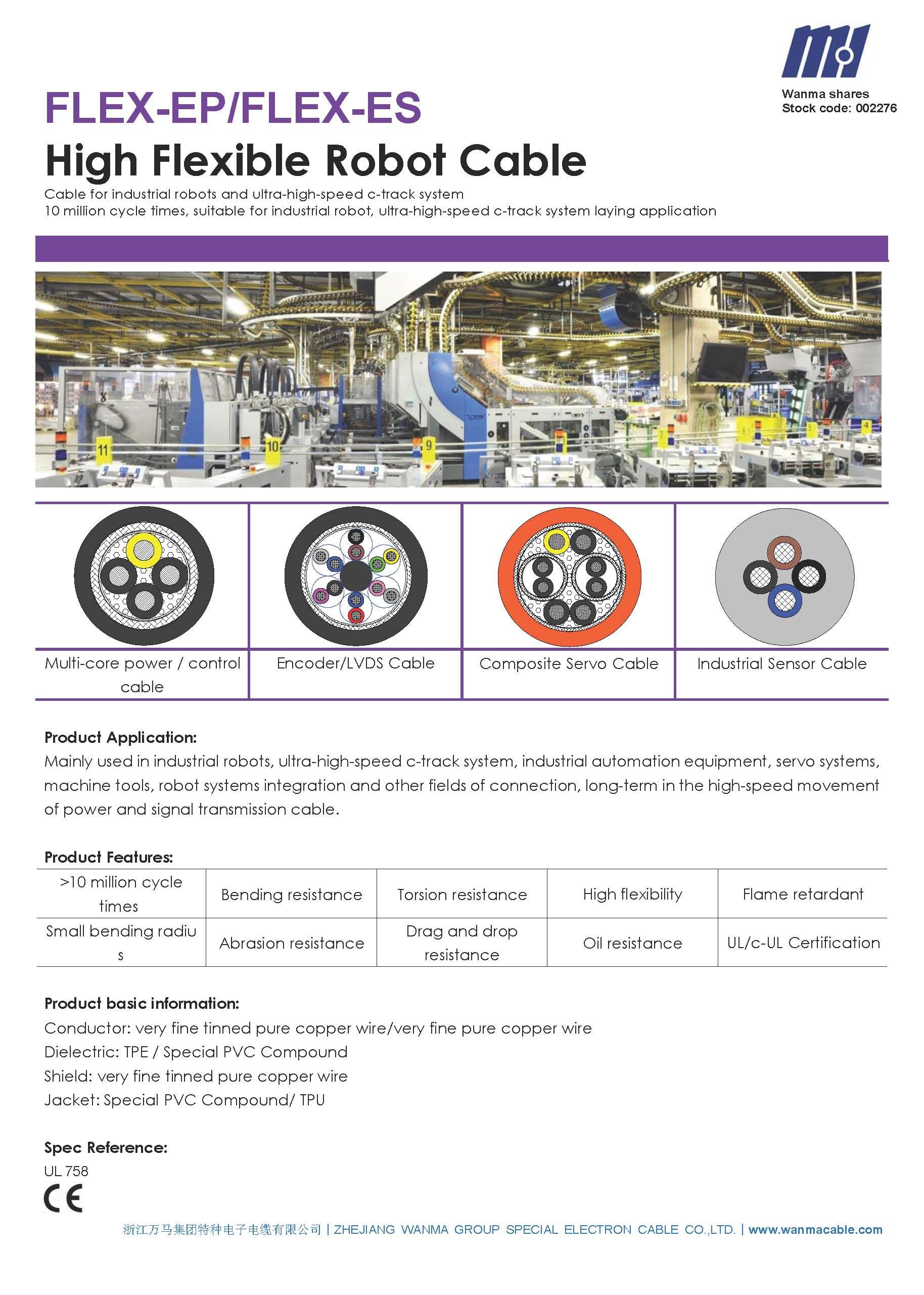

High flexible Motion Cable selection index: 10 million times bending life products| Serial Number | Description | UL STYLE | Dielectric Material | Jacket Material | Flame Retardant | Oil Resistance | EMC | Core Number Range | Conductor Section Range | Page |
| FLEX-EP410/UL2586 | 600V 105C High flexible power cable [shielded] | 2586 | PVC | PVC | YES | YES | YES | 3C~12C | 0.5mm2~4mm2 | D31~32 |
| FLEX-EP415/UL2586 | 600V 105C High flexible power cable | 2586 | PVC | PVC | YES | YES | / | 3C~12C | 0.5mm2~4mm2 | D33~34 |
| FLEX-EP420/UL2570 | 600V 80C High flexible power cable [shielded] | 2570 | PVC | PVC | YES | YES | YES | 3C~12C | 0.5mm2~4mm2 | D35~36 |
| FLEX-EP425/UL2570 | 600V 80C High flexible power cable | 2570 | PVC | PVC | YES | YES | / | 3C~12C | 0.5mm2~4mm2 | D37~38 |
| FLEX-EP430/UL2517 | 300V 105C High flexible power cable [shielded] | 2517 | PVC | PVC | YES | YES | YES | 3C~12C | 0.5mm2~1.5mm2 | D39~40 |
| FLEX-EP435/UL2517 | 300V 105C High flexible power cable | 2517 | PVC | PVC | YES | YES | / | 3C~12C | 0.5mm2~1.5mm2 | D41~42 |
| FLEX-EP440/UL2464 | 300V 80C High flexible power cable [shielded] | 2464 | PVC | PVC | YES | YES | YES | 3C~12C | 0.5mm2~1.5mm2 | D43~44 |
| FLEX-EP445/UL2464 | 300V 80C High flexible power cable | 2464 | PVC | PVC | YES | YES | / | 3C~12C | 0.5mm2~1.5mm2 | D45~46 |
| FLEX-ES450/UL20276 | 30V 80C
High flexible encoder/LVDS cable | 20276 | PVC | PVC | YES | YES | YES | 2P~12P | 0.14mm2~0.5mm2 | D47~49 |
| FLEX-ES455/UL20276 | 30V 80C
High flexible encoder/LVDS cable | 20276 | PVC(Color Point Identificatio) | PVC | YES | YES | YES | 2P~12P | 0.14mm2~0.5mm2 | D50~52 |
| FLEX-EP460/UL2570 | 1000V 80C
High flexible servo power cable | 2570 | TPE | PVC | YES | YES | YES | 4C+(1P~2P) | 0.34mm2~4mm2 | D53~54 |
| FLEX-EP480/UL21223 | 1000V 80C High flexible servo power cable | 21223 | TPE | TPU | YES | YES | YES | 4C+(1P~2P) | 0.34mm2~4mm2 | D55~56 |
| FLEX-ES465/UL2464 | 300V 80CHigh flexible sensor cable | 2464 | PVC | PVC | YES | YES | / | 3C~12C | 0.14mm2~0.34mm2 | D57~58 |
| FLEX-ES470/UL2464 | 300V 80
CHigh flexible sensor cable [shielded] | 2464 | PVC | PVC | YES | YES | YES | 3C~12C | 0.14mm2~0.34mm2 | D59 |
| FLEX-ES475/UL20276 | 30V 80CHigh flexible sensor cable | 20276 | PVC | PVC | YES | YES | / | 2C~5C | 0.08mm2~0.25mm2 | D60 |
Remark: 1 If you need product technical information, please contact our Sales engineer. 2 not limited to the specifications listed in this specification, other specifications can be customized according to customer requirements.
Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.
Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.
Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.
We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.
We are always ready for your professional inquiry.
