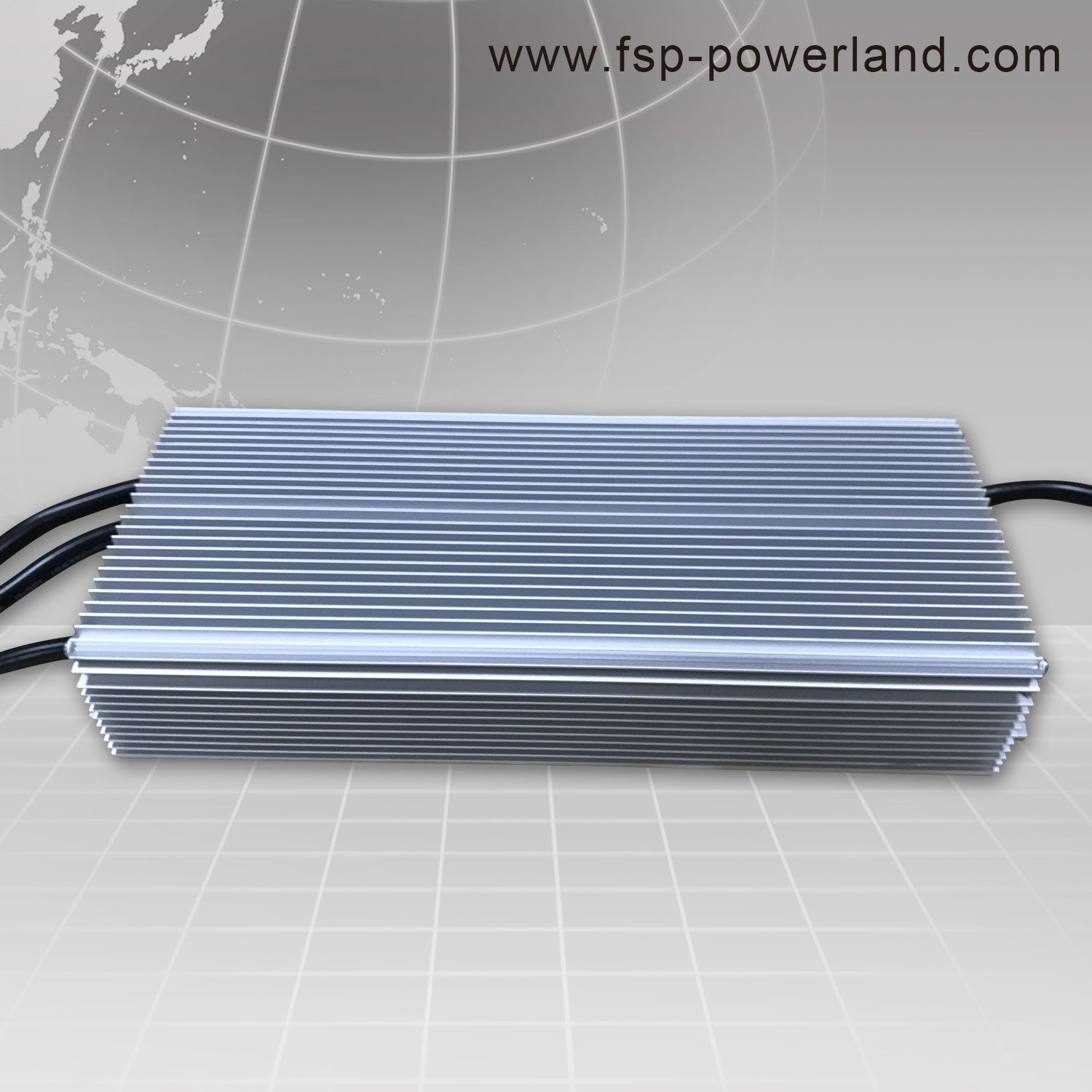

500W 11.9A 32~48V Outdoor Programmable Constant Current Waterproof LED Driver
Powerland's PLD500-SMT-48 offers digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 11.9A, and designed for 0(0.05)-10V/
PWM/Rset/Clock/DMX Ultra-deep dimming applications.
ApplicationsOutdoor & indoor LED lights
LED lights with flexible current settings
Parking lights and Architecture decoration lights
LED Horticulture lights
LED Fishing lights
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 108~305Vac | 500W | 32V
…
48V | 11.9A | 95.5% | 90ºC | 5.5A | 570W | <20% | >0.95 |
* Based on 25ºC
ambient temperature, rated input voltage, and full load.Features
Ultra-deep dimming dowm to 0.5% compatible with DMX
12V/100mA auxiliary output(optional)
Output current programmable
>70,000 hours lifetime at 75ºC Tcase >7 years warranty at 75ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant current output
Compatible with 0-10V, PWM, external resistor, clock,DMX dimming
Universal input voltage: 108~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class A
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications | Model | PLD500-SMT-48 |
| Output Voltage | 32~48V |
| Output Current | 11.9A |
Output AUX Power Voltage (Optional) | 12V |
Output AUX Power Current (Optional) | 0-100mA |
| Dimming | 0(0.05)~10V, PWM, External Resistor, Clock, DMX |
| Current Programmable | Yes |
| Output Power | 500W |
| Max. Current Ripple | ±5% |
| Max. Voltage Ripple | 250mVp-p |
| Voltage Range | 108~305Vac |
| Frequency Range | 47~63Hz |
| Max. Input Current | 5.5A |
| Max. Input Power | 570W |
| Power Factor | >0.95 @ 120Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
| Efficiency | 95.5% |
| THD | <20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load |
| Protections | OVP, OTP, OCP, SCP |
| Environmental Protection | UL Dry & Damp & Wet |
| Working Temperature | -40~+70ºC |
| Max. Case Temperature | 90ºC |
| Surge Protection | 5.5kV/11kV |
| Agency Approbations | UL8750 |
| Electromagnetic Compliance | Per Title 47 CFR Part 15 Class A |
| Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
| Isolation(Primary to Secondary) | 3750Vac / 10mAMax / 60seconds |
| Isolation(Primary to Earth) | 1875Vac / 10mAMax / 60seconds |
| Isolation(Secondary to Earth) | 500Vac / 10mAMax / 60seconds |
| Dimension | 280x123x54 mm (11.02x4.84x2.13 inch) |
| Mounting Length | 290 mm (11.42inch) |
| Overall Length | 304 mm (11.97 inch) |
| Weight | 3.56 kg ( 7.85lb) |
| Life Time | >70,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
Electrical Specifications

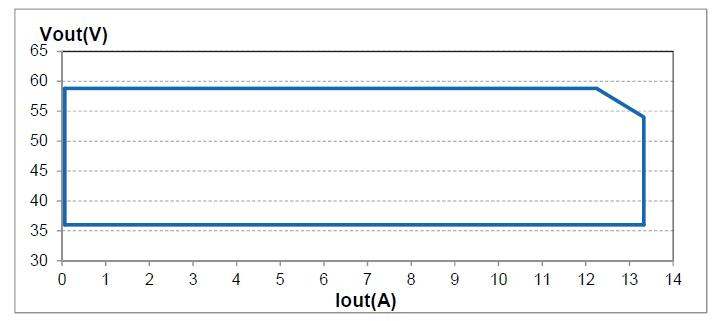

I-V Programming Area: Output Voltage vs. Output Current
Electrical Specifications

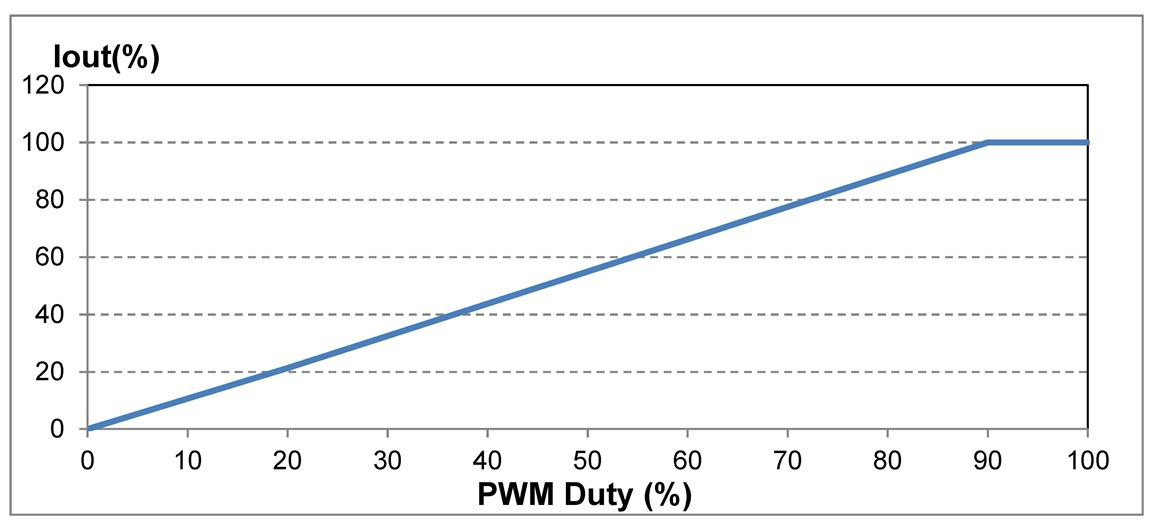

Output Current vs. PWM Dimming Duty Cycle
Performance Characteristics

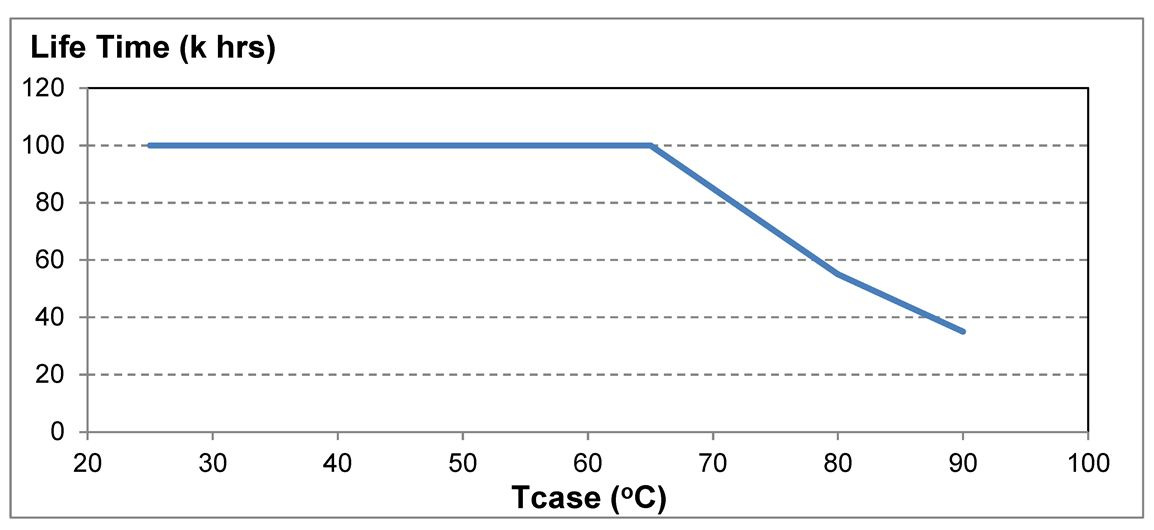

Life Time vs. Case Temperature
Performance Characteristics

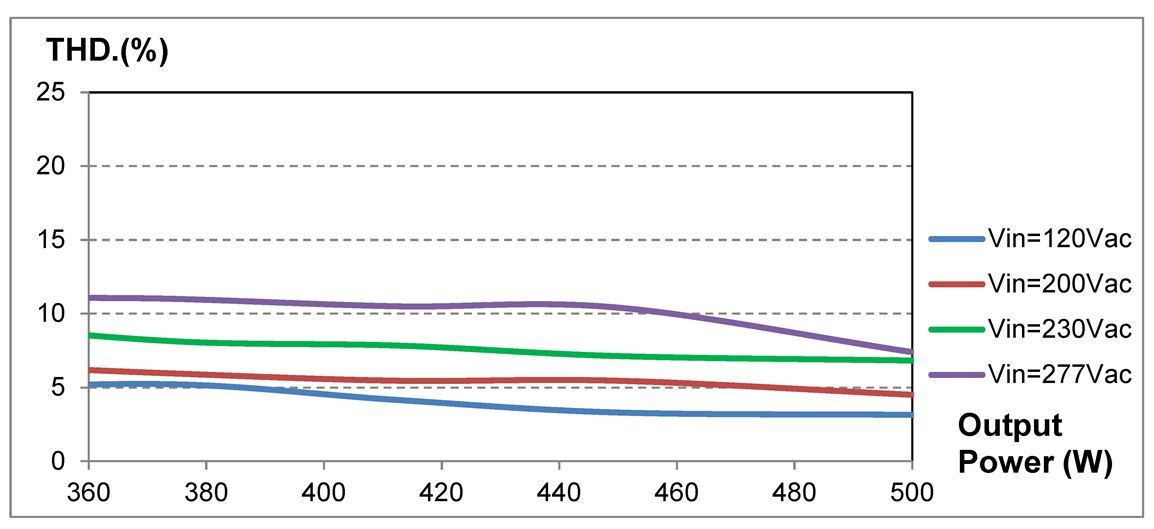

THD vs. Output Power

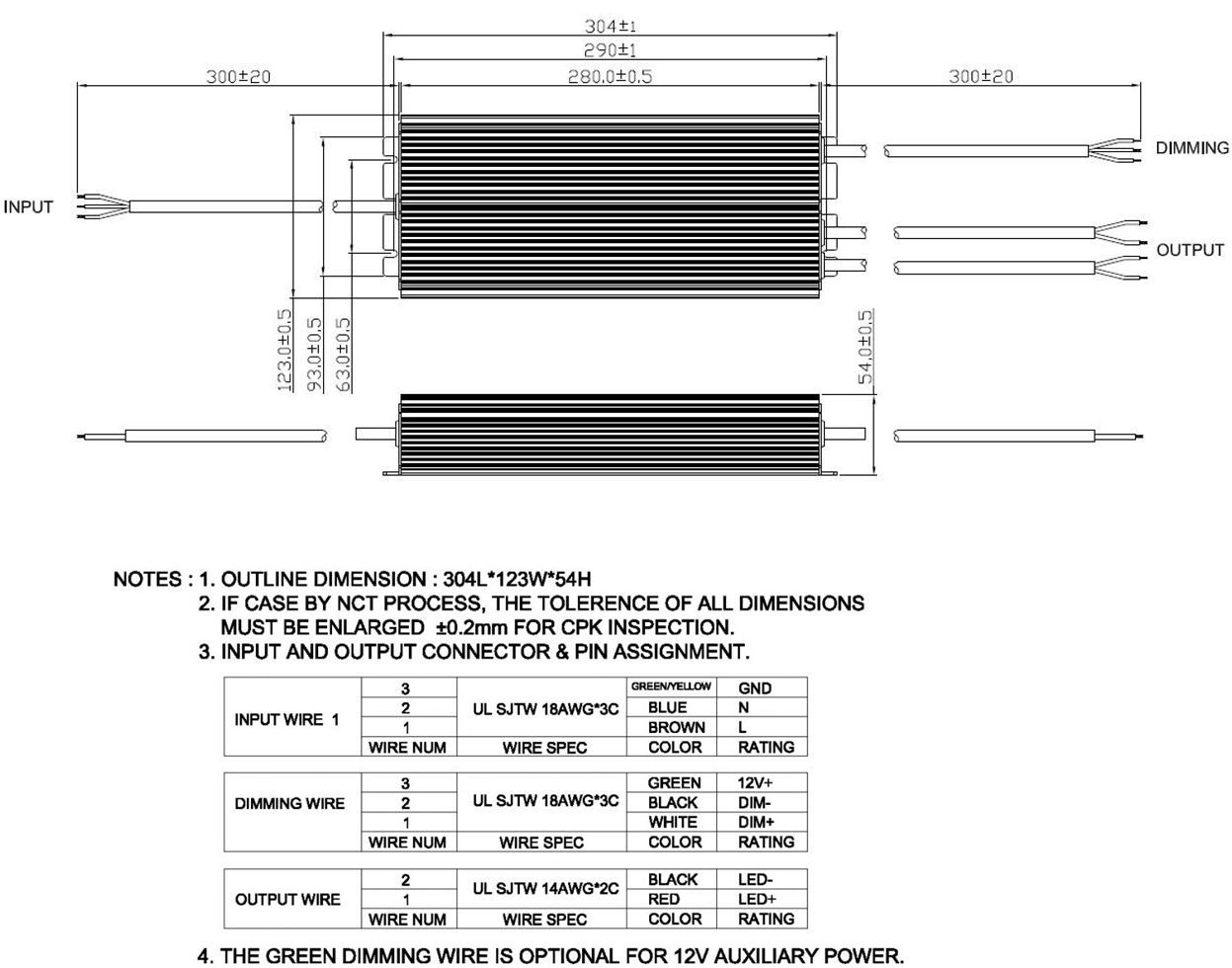

Mechanical Specification
