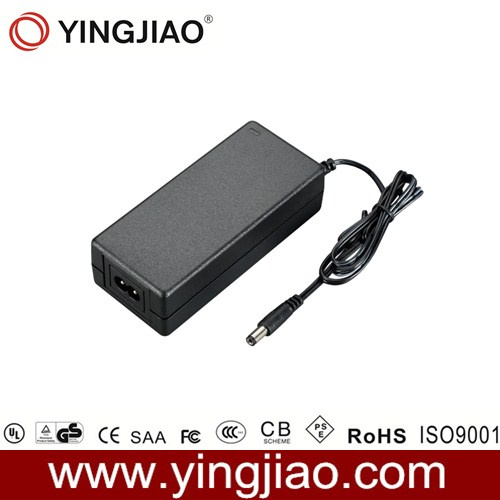

50W LED Switching Power Adapter

Name: 50W LED Switching Power Adapter
Brand: all-electronics-online.com
SKU: 608291285
Availability: InStock
Rating: 4.9 (45 reviews)

Price:	US $ 3-12/Piece
Trade Terms:	FOB,CPT,others
Min Order:	1000/Piece
Pay Type:	T/T,D/P

Contact Supplier

Showroom Product Company Profile

LED Switching Power Adapter- Laptop Adapter
We are a leading manufacture and export of switching and linear power adapters, transformers, power cords, charger, car chargers, etc
35-70W Switching Power Adapters, CE, RoHS, EMC, EUP compliance.
Switching Power Adapters
Model: YS50 series
Universal Input: 100-240V AC 50/60Hz
Rated Power: 70W max.

Features:
Universal Input: 100-240V AC 50/60Hz
Safety: UL/CUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:
Dimensions: 116mm (L)*52mm (W)*32mm (H)
N. W.: 260g
AC Input Plug: EU, US, UK, AUS, etc. Type optional
Output plug: Optional

Model	Output Load Voltage (V)	Max. Load Current (A) YS50-XX360 36 1.80
YS50-XX360	36	1.80
YS50-XX240	24	2.50
YS50-XX190	19	3.16
YS50-XX150	15	4.00
YS50-XX120	12	5.00
YS50-XX050	5	6.00

Prod Model:	YS50 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
N. W.:	260g
Dimension:	116mm (L)52mm (W)32mm (H)
Packaging:	PE Bag,White Box,Carton
Protection:	Hipot,Short Circuit,Overvoltage,Overload,Overheat
Usage:	Display
Output Type:	AC or DC
Connection:	Desktop
Type:	OEM/ODM
Brand:	Yingjiao/OEM/ODM

Yingjiao Electrical Co., Ltd., established in 1996, is a leading manufacturer and exporter of switching power adapters, linear AC/DC adapters, transformers, chargers, car chargers, power cords, tripods, etc. We can also design and manufacture power supply products with specifications according to the various demands of different customers.

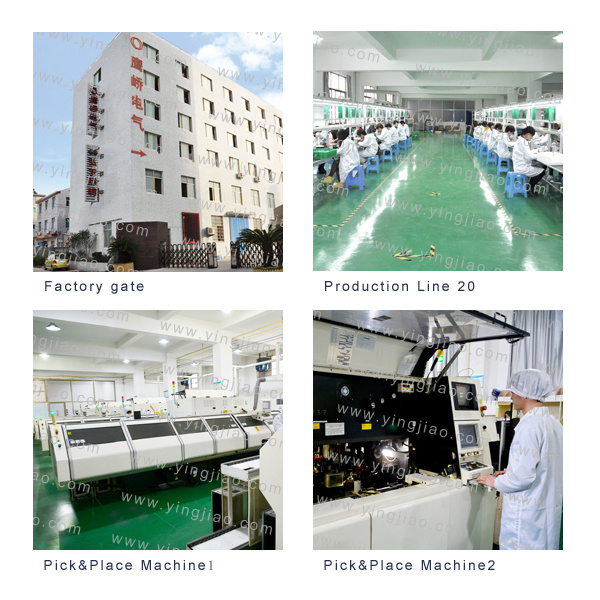

Located in Ningbo, a coastal city in East China, we possess a convenient location and transportation facility. With an area of 15000 square meters, we have about 800 skillful employees. Being exported to Europe, America, Japan, Australia, and many other countries and regions, our products have won good comments from our customers.

We have a strict quality control and guarantee system and have been ISO 9001: 2000 and SGS certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese quality certification center. Besides, we also carry out the international authoritative certifications, such as UL, cUL, TUV, CSA, and GS.

We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.

ODM/OEM partners are welcome too.
