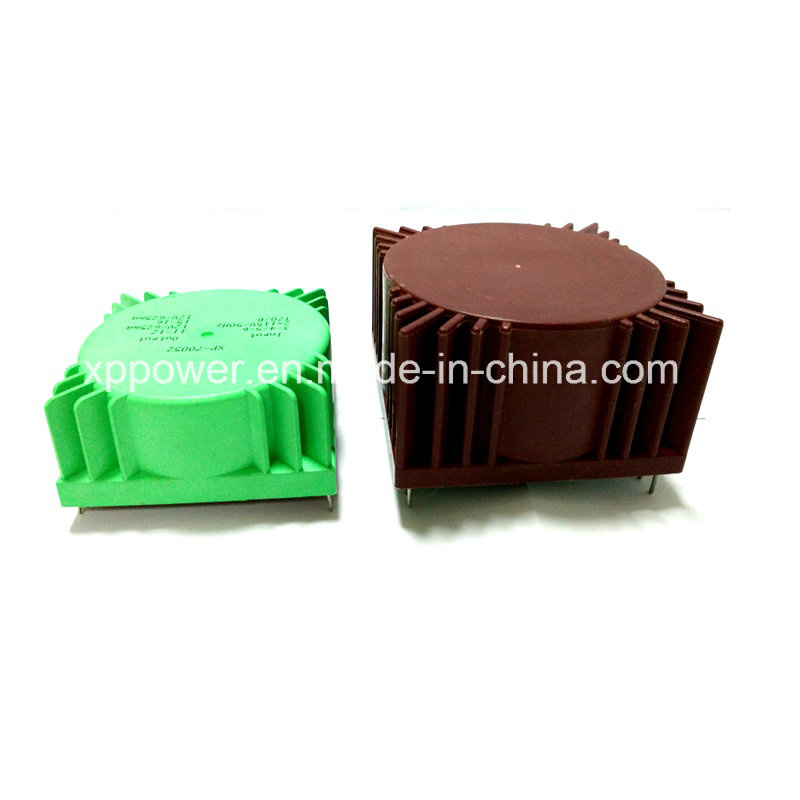

50W Waterproof Encapsulated Lighting Toroidal Power Transformer

Name: 50W Waterproof Encapsulated Lighting Toroidal Power Transformer
Brand: all-electronics-online.com
SKU: 781657065
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	US $ 2.66-5.99/Piece
Trade Terms:	FOB,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XP-TT-1608
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer

Product Description

Specifications:
Rated power: 1.6VA to 50VA
Small size, low weight, high efficiency
Low level of radiated magnetic field
Low induced noise
Low iron loss
Input: double 110V, 115V, 120V
Work frequency: 50/60 Hz
Insulation Class: UL class B
Certification: CE/RoHS/CQC

Application:
Be used widely in audio equipment, communication, new energy areas, Electrical control, Cable TV network etc.

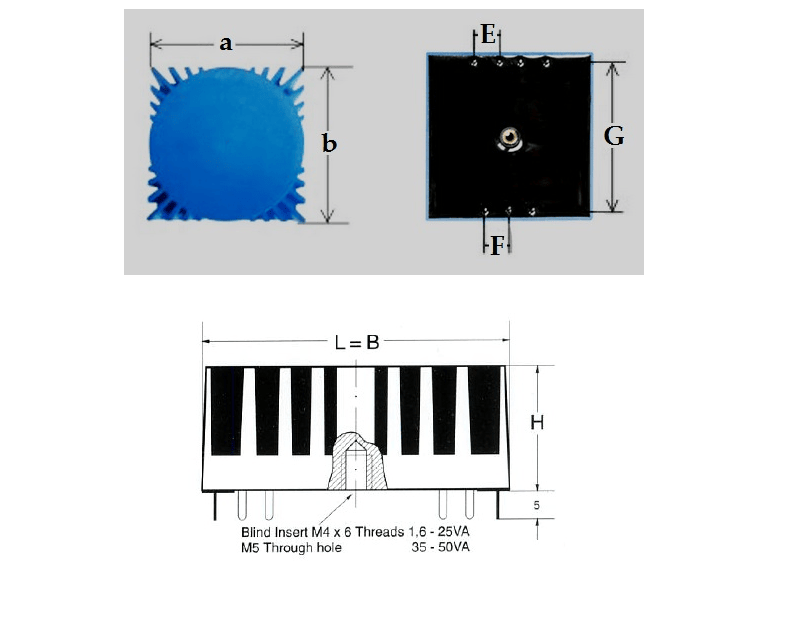

Power VA	Dimensions *LWH* mm	Pin Layout		Weight		Eff. %
Power VA	Dimensions *LWH* mm	XY(mm)	Pin Size(mm)	Total(gr)	Cu(gr)	Eff. %
1.6	39.639.618.5	35.56	1.0*0.5	82	20	77
3.2	44.744.719.5	40.64	1.0*0.5	110	26	70
5.0	49.749.719.5	45.72	1.0*0.5	144	33	68
7.0	49.749.723.1	45.72	1.0*0.5	174	36	74
10.0	55.055.026.0	50.80	1.0*0.5	252	45	82
15.0	60.060.026.3	55.88	1.0*0.5	304	57	80
25.0	60.060.037.5	55.88	1.0*0.5	435	85	83
35.0	72.072.037.5	66.04	1.0*1.0	525	187	81
50.0	82.482.437.5	76.20	1.0*1.0	685	209	86
