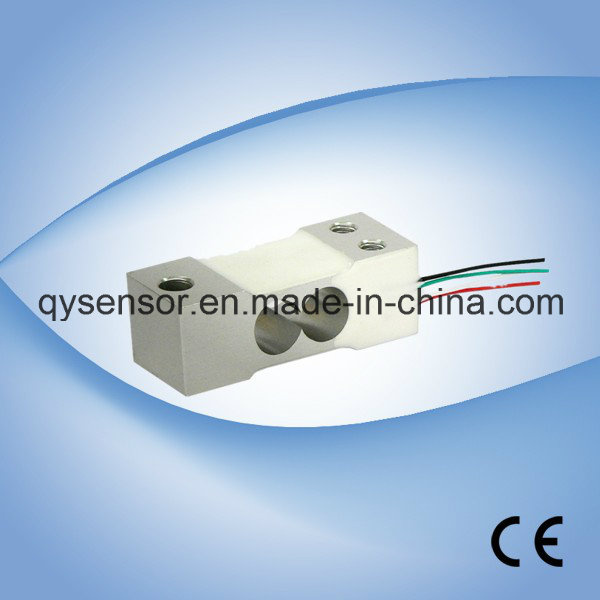

QL-12G load cells are available in the capacities from 5kg to 100kg.
Alloy aluminum construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic counting scales, platform scales,electronic balance and other electronic weighing devices.
Features:
Capacity :5kg to 100kg
Defend grade:IP65
High accuracy.
Alloy aluminum parallel beam
Max. platform size:200x200mm
Integral structure,reliable performance,and easy installation

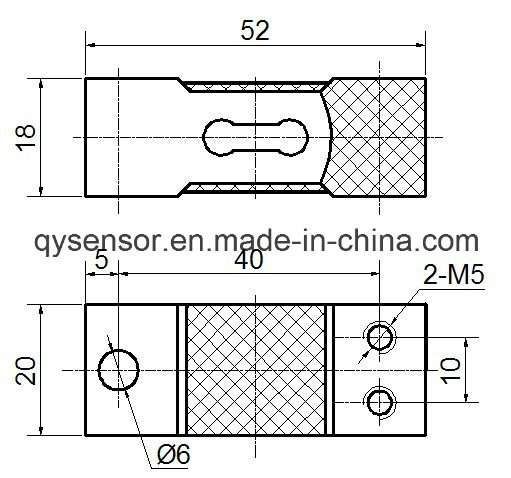

Electrical connection and Dimensions:
| Specifications: |
| capacity | kg | 5,20,50,100 |
| safe overload | %FS | 120 |
| ultimate overload | %FS | 150 |
| rated output | mV/V | 2.0 ± 0.2 |
| excitation voltage | Vdc | 9 ~ 12 |
| combined error | %FS | ± 0.02 |
| zero unbalance | %FS | ± 2 |
| non-linearity | %FS | ± 0.02 |
| hysteresis | %FS | ± 0.02 |
| repeatability | %FS | ± 0.01 |
| creep | %FS/30min | ± 0.02 |
| input resistance | Ω | 406 ± 10 |
| output resistance | Ω | 350 ± 3 |
| insulation resistance | M Ω | ≥ 5000 @ 50 Vdc |
| operating temperature range | ºC | -20 ~ +60 |
| compensated temperature range | ºC | -10 ~ +40 |
| temperature coefficient of SPAN | %FS/10ºC | ± 0.02 |
| temperature coefficient of ZERO | %FS/10ºC | ± 0.03 |
Electrical connection: Excitation+ red Excitation- black Signal+ green Signal- whiteFour-core shielded cable with polyethylene. Cable is not connected with elastomer.Cable length:1 mCable diameter :0.8 ±0.2 mmThe cable length could be chose by customer's application. Packaging & Shipping
All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNTas you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
