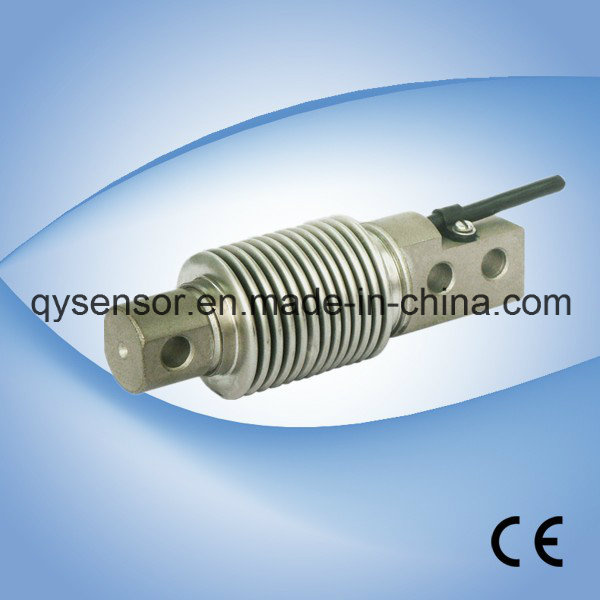

Stainless Steel Bellows Load Cell for Platform Scale, Hopper Scale and Truck Scale

Name: Stainless Steel Bellows Load Cell for Platform Scale, Hopper Scale and Truck Scale
Brand: all-electronics-online.com
SKU: 773520065
Availability: InStock
Rating: 4.4 (27 reviews)

Price:	US $ 65-99/Piece
Trade Terms:	FOB,CIF
Min Order:	4/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Introduction:

QH-23 load cells are available in the capacities from 5kg to 500kg.
Alloy steel & stainless steel construction construction with single shear beam type.
Sealed welding ,waterproof, anti-corrosion and suitable for all kinds of environment.
Integral structure and easy installation.
Suitable for electronic platform scale, hopper scales and other electronic weighing devices.

Features:
Capacity :5kg to 500kg
Defend grade: IP67 & IP68
High accuracy.
Alloy steel & stainless steel single shear beam
Low profile and nice exterior

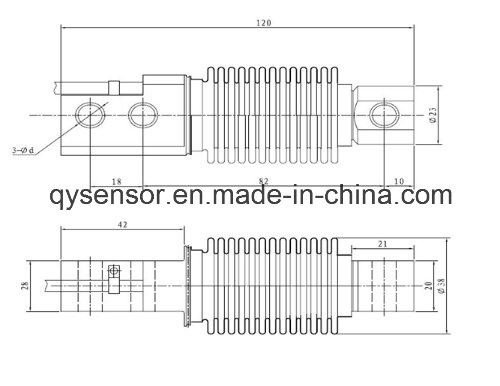

Electrical connection and Dimensions:

Technical Specification:

Specifications:
Capacity	kg	5,10,20,30,50,100,200,300,500
Safe overload	%FS	150
Ultimate overload	%FS	200
Rated output	mV/V	2.0 ± 0.004
Excitation voltage	Vdc	5 ~ 12
Combined error	%FS	± 0.03	± 0.02
Zero unbalance	%FS	± 1
Non-linearity	%FS	± 0.02	± 0.016
Hysteresis	%FS	± 0.02	± 0.02
Repeatability	%FS	± 0.02	± 0.01
Creep	%FS/30min	± 0.02	± 0.016
Input resistance	Ω	365 ± 10
Output resistance	Ω	350 ± 3
Insulation resistance	M Ω	≥ 5000 @ 50 Vdc
Operating temperature range	ºC	-20 ~ +65
Compensated temperature range	ºC	-10 ~ +40
Temperature coefficient of SPAN	%FS/10ºC	± 0.02	± 0.02
Temperature coefficient of ZERO	%FS/10ºC	± 0.03	± 0.02

Electrical connection:
Excitation+ green Excitation- black Signal+white Signal-red
Feedback+blue Feedback-grey
Six-core shielded cable with polyethylene.
Cable diameter :¢5.7mm
Cable length:3.5 m

The cable length could be chose by customer's application.

Packaging & Shipping

All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNTas you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.

All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.

Our Services

1. OEM/ODM Services:

Our company provides OEM/ODM services and Customized products services.

With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.

What's your requirement?

2. Quality Quarantee

We quarantee product quality for one-year starting from the date of delivery.

Company Information

Marketing under Our Brand "QYE"
Hanzhong Quan Yuan Electronic Co. Ltd is a professional high-tech enterprise that is committed to the research, development, design, manufacture and sale of load cells, high precision resistance strain gauges and pressure transmitters under the QuanYuan brand. They can be applied in the traditional force measurement field and are also widely used in the industrial automation production lines and metallurgical industry.

Meeting CE, RoHS and EX Requirements
As an ISO 9001:2008-certified company,all our electronic products have good performance and high quality because all products must be tested several times and they must undergo strict inspections before being dispatched from the factory. As a result, our load cells have passed CE and RoHS requirements and pressure transmitters have passed CE and EX standards.

Service Concept: Customer Satisfaction is Our Everlasting Pursuit
With several years' experience in manufacturing and selling load cells, strain gauges and pressure transmitters, we always adhere to our service concept of "customer satisfaction is our everlasting pursuit" and have built a professional team in sensor field to provide customers with first-class products, first-class services, first-class reputation and first-class principles.

Exporting to over 30 Countries Worldwide
With high quality and good service, our products have been exported to over 30 countries, which include the US as well as those in Europe, Southeast Asia, the Middle East and South America.

FAQ

1. What is the MOQ?

For different product,the MOQ is different.But we can supply you samples.

2:How long will you give me the reply?
we will contact you in 12 hours as soon as we can.

3.How about the price?

As we believe the quality is the most important,we will provide the best quality product with reasonable price.

4:Could I visit your factory?
Of course,if you need we will help you to visit our factory.

5:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.

6. What is lead time?

If we have it in stock, we can ship it to you within about 3-5 working days.

If we don't have it in stock, the lead time will be 10-30 days.
If the product is urgent,please tell us and we will try our best to satisfy you.

7. What is the payment terms?

All T/T, Western Union, L/C, Escrow,paypal are acceptable.

8. What is the express delivery?

DHL, Fedex, TNT ,EMS, UPS etc.

If you order large quantity products,the most economic shipping way will be by sea or by air transport.

9. What is the quality guarantee?

Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it; if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.

10. Is there any after-sale service?

After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone and QQ etc.

Prod Model:	QH-23 Load cell
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	5kg to 500kg
Accuracy:	0.03%Fs
Signal Output:	Mv/V
Recommended Excitation:	5~12VDC
Application:	Electronic Platform Scales, Truck Scale
Pattern:	Single Shear Beam Load Cell
Material:	Alloy Steel & Stainless Steel
IP Rating:	IP67 & IP68
