OIML/Ce/RoHS Steel Alloy Single Point Sensor /Electronic Scale Weighing Sensor
| Price: |
US $ 25-30/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

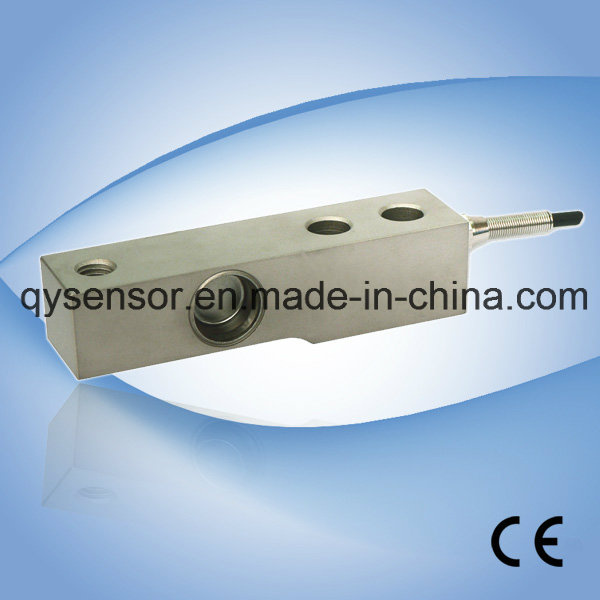

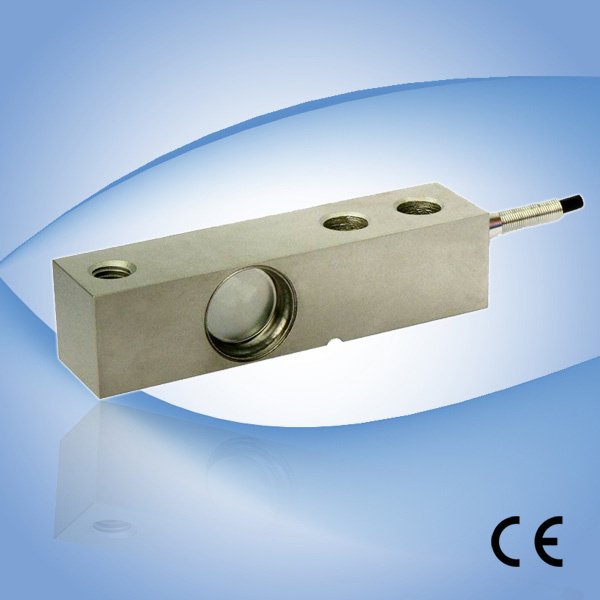

OIML/CE/RoHS Steel Alloy Single Point Load Cell /Electronic Scale Weighing SensorQH-22 Steel Alloy
load cells are available in the capacities from 0.5t to 5t.Alloy steel & stainless steel construction with single shear beam type.Sealed welding ,waterproof, anti-corrosion and suitable for all kinds of environment. Integral structure and easy installation.Suitable for electronic platform scales, truck scale, floor scale ,hopper scale and other electronic weighing devices. Features:
Capacity :0.5t to 5t
Defend grade: IP67 & IP68
High accuracy.
Alloy steel & stainless steel single shear beam

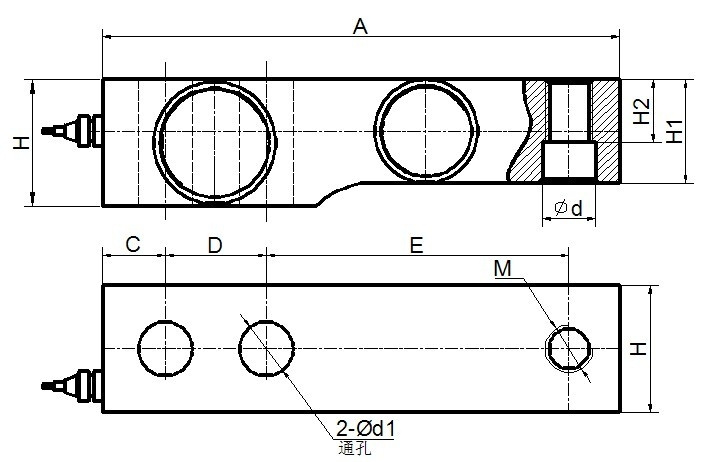

Low profile and nice exteriorElectrical connection and Dimensions:
Technical Specifications| Specifications: |
| capacity | t | 0.5,1,2,2.5,5, |
| safe overload | %FS | 150 |
| ultimate overload | %FS | 200 |
| rated output | mV/V | 3.0 ± 0.003 |
| excitation voltage | Vdc | 9 ~ 12 |
| combined error | %FS | ± 0.02 | ±0.03 |
| zero unbalance | %FS | ± 2 |
| non-linearity | %FS | ± 0.02 |
| hysteresis | %FS | ± 0.02 |
| repeatability | %FS | ± 0.01 |
| creep | %FS/30min | ± 0.02 |
| input resistance | Ω | 350± 5 |
| output resistance | Ω | 350 ± 3 |
| insulation resistance | M Ω | ≥ 5000 @ 50 Vdc |
| operating temperature range | ºC | -20 ~ +55 |
| compensated temperature range | ºC | -10 ~ +40 |
| temperature coefficient of SPAN | %FS/10ºC | ± 0.02 |
| temperature coefficient of ZERO | %FS/10ºC | ± 0.03 |
Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene.
Cable diameter :¢5mm
Cable length:3 m
The cable length could be chose by customer's application.

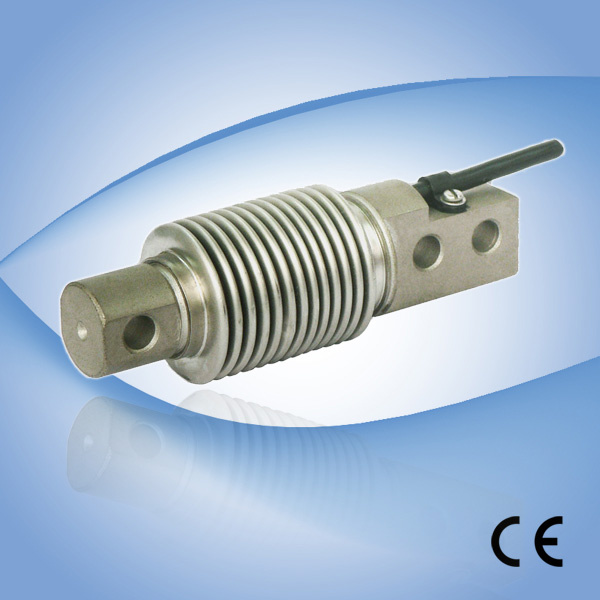

Shear beam load cells series:
Contact for more sensor details:
Chloe Shu
Sales Engineer
TEL: +86-916-2257989
MOB: +86 15336190378
http://www.qysensor.com
https://cn.linkedin.com/pub/chloe-shu/74/445/964
Packing reference:
Certificates:
| Prod Model: |
QH-22 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Shear Beam Type |
| Capacity: |
0.5~5t |
| Safe Overload: |
150%Fs |
| Operating Temperature: |
-20~55 |
| Cable Length: |
Can Be Choosed |
| Product Name: |
Steel Alloy Single Point Load Cell |
| Pattern: |
Shear Beam Type |
